Process:
• Remove bottom drawers. (See Operation Section, Part
B.)
• Lay the cabinet on its back. Use packaging material to
protect the finish.
• Mount both swivel casters on the same side of the unit
as the side handle.
• Attach the casters using (4) #14 - 10 x 5/8" screws per
caster.
• Wrench tighten all screws. It is recommended not to
exceed 80 inch pounds of torque.
• Return the unit to its upright position.
• Reinstall bottom drawers.

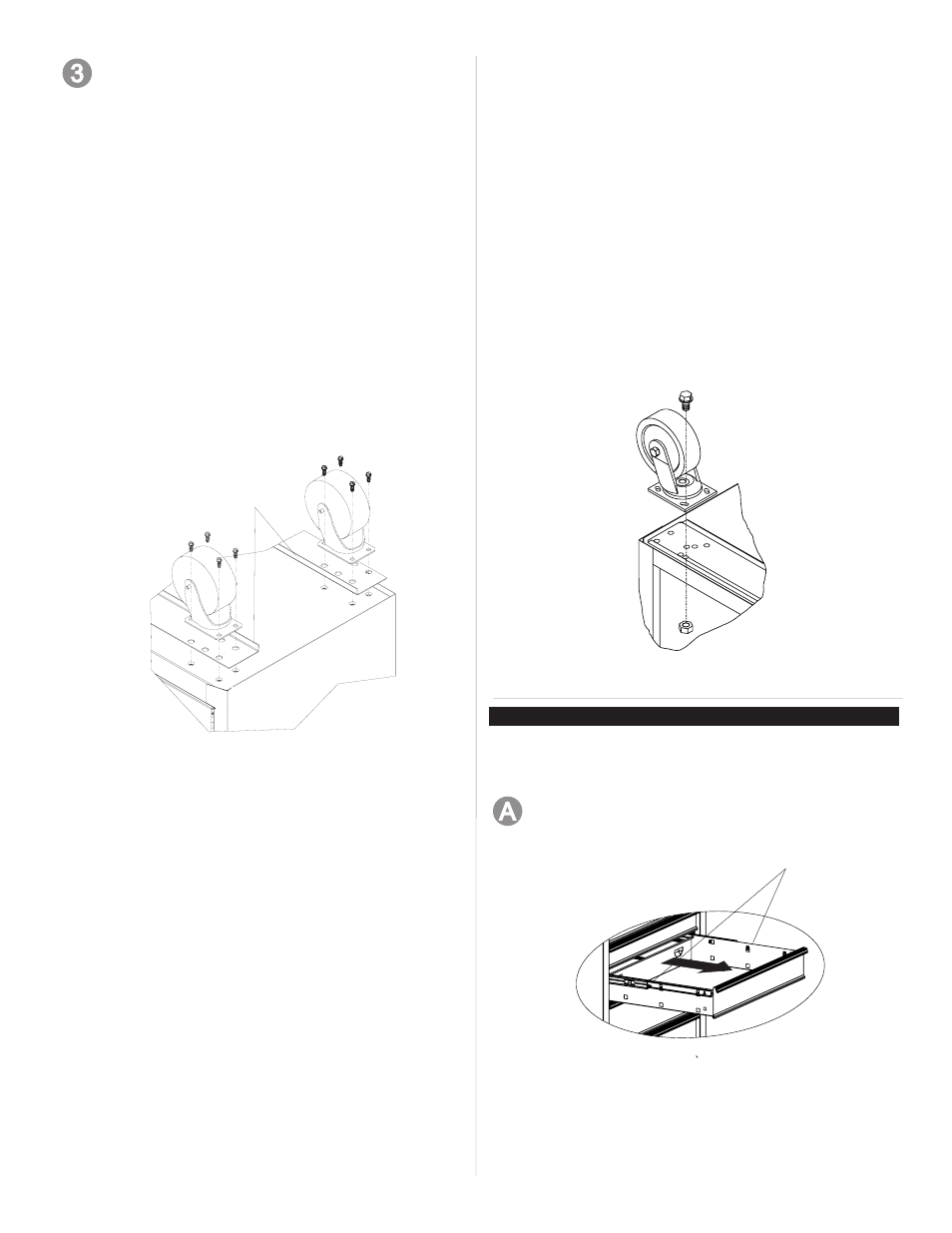

CASTER INSTALLATION
Items Needed for 4-1/2 x 1-1/2 casters:
#14 - 10 x 5/8" (Qty: 16)
7/16-in Wrench 3/8-in Wrench
Caster angles
(flanges inside)
Process:
• Remove bottom drawers. (See Operation Section, Part
B.)
• Lay the cabinet on its back. Use packaging material to
protect the finish.
• Mount both swivel casters on the same side of the unit
as the side handle.
• Attach the casters using (4) 1/4 - 20 x 5/8" screws and
(4) 1/4 - 20 nuts per caster.
• Wrench tighten all screws. It is recommended not to
exceed 80 inch pounds of torque.
• Return the unit to its upright position.
• Reinstall bottom drawers.
CASTER INSTALLATION
Items Needed for 5 x 2 Casters:
1/4 - 20 x 5/8" Screw (Qty: 16) 1/4 - 20 Nut (Qty: 16)
7/16-in Wrench 3/8-in Wrench
NOTE: Not all operation instructions will relate to your
model.
NOTE: There are 2 styles of caster mounting depend-
ing on the cabinet purchased. Choose the style that
applies to your cabinet.
• Empty the drawer.
• Fully extend the drawer.
REMOVING DRAWERS
3
OPERATION
Release
