Waterloo F1879 User Manual

Page 2

Hardware Included will depend on the product

purchased:

TOOLS REQUIRED:

1/2 inch wrench

7/16 inch wrench

5/16 inch drill bit

Phillips Screwdriver

Cabinet:

Literature

Hardware bag

Caster pack

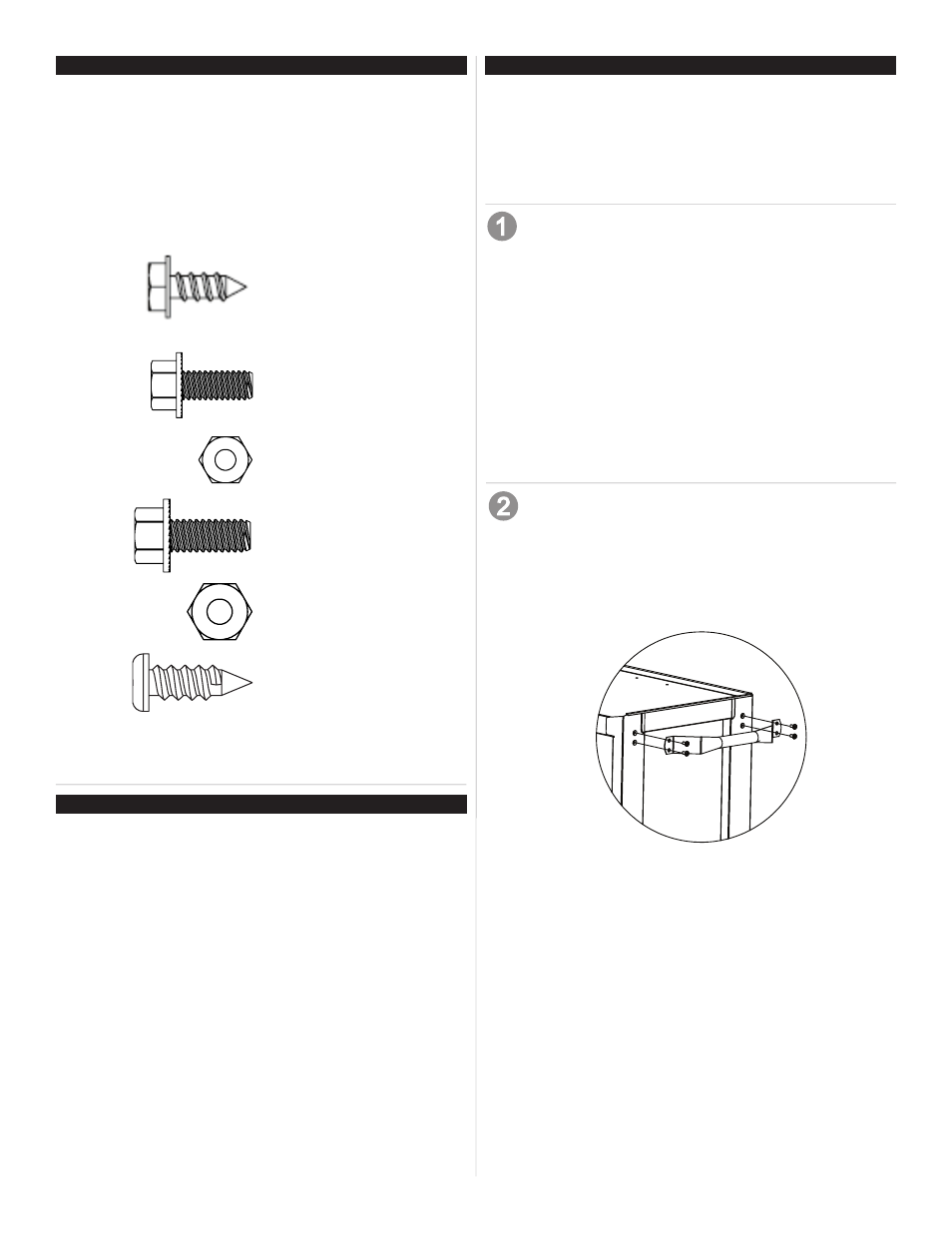

SIDE HANDLE ATTACHMENT

Items Needed:

#14 - 10 x 3/4 Phillips Screws (Qty: 4)

Screwdriver

Chest:

Literature

Hardware bag

• Attach the side handle using (4) #14-10x 3/4 Phillips

screws.

NOTE: Not all assembly instructions will apply to your

model.

TO ATTACH CHEST
Process:

· Remove enough drawers to access the top and bottom

mounting surfaces of the units. Refer to drawer removal

instructions.

· Place the chest in the desired location on top of the cabi-

net or intermediate chest and mark the mounting hole

locations onto the cabinet top.

· Remove the chest and drill two 5/16" (8mm) holes

through the top of the cabinet or intermediate chest.

· Secure the units together using two 1/4 - 20 x 5/8"

screws and nuts at each joint. The hardware is provided

in the bag located in the top tray of the chest.

WARNING

Remove wooden work surface or rubber mat, if any,

before attaching chest(s) to the cabinet.

HARDWARE

ASSEMBLY

CARTON CONTENTS

#14 - 10 x 5/8 Screw

(Qty: 16)

1/4 - 20 Nut (Qty: 16)

#14 - 10 x 3/4 Phillips Screw

(Qty: 4)

1/4 - 20 x 5/8 Screw

(Qty: 16)

5/16 - 18 x 3/4 Screw (Qty: 16)

5/16 - 18 Nut (Qty: 16)
