SECTION 2. INSTALLATION
The installation consists of mounting the Reader in a customer-supplied housing and connecting one cable
from the head and another from the Smart Card Block. Pin lists for the 2 track and 3 track heads are
shown in the drawings in Appendix A.
MOUNTING
The Reader is attached to a customer-supplied surface with three #4/M3 screws as indicated in Figure 2-1.
Brackets [ ] indicate millimeters; open numbers indicate inches.

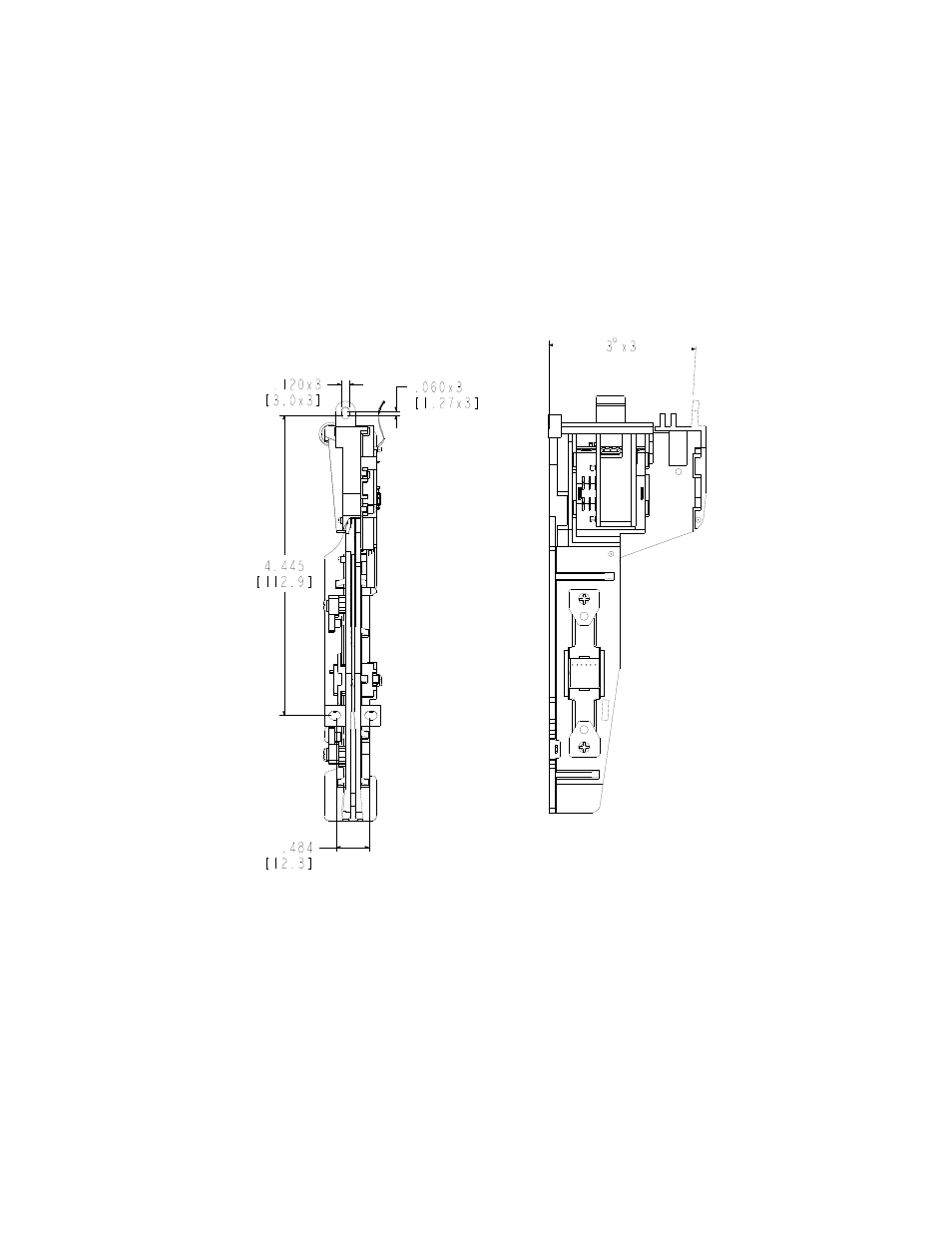

Figure 2-1. Holes for Mounting Into Customer Enclosure
The optional PCB is attached with four spacers and four #4/M3 self-tapping screws. Positions of the
screw holes are indicated in Figure 2-2. Brackets [ ] indicate millimeters; open numbers indicate inches.
Spacers for minimum clearance to the chassis are shown in Figure 2-3.
