Scan bar cleaning – MagTek Excella STX99875342 User Manual
Page 25
Section 3. Operation and Maintenance
17
Caution
Do not wipe the electrical contact area.
4. If ink remains on the nozzle plate, wipe again with a clean dry cloth.
Scan Bar Cleaning
With the Outer and Center Covers removed, locate the Hinged Roller Tower and the
Scanning Tower. Open the Towers as indicted in Figure 3-6 and Figure 3-7 and perform the
following steps:
1. On the Entry side, pull the Tab up and the Hinged Roller Tower down (to the left).

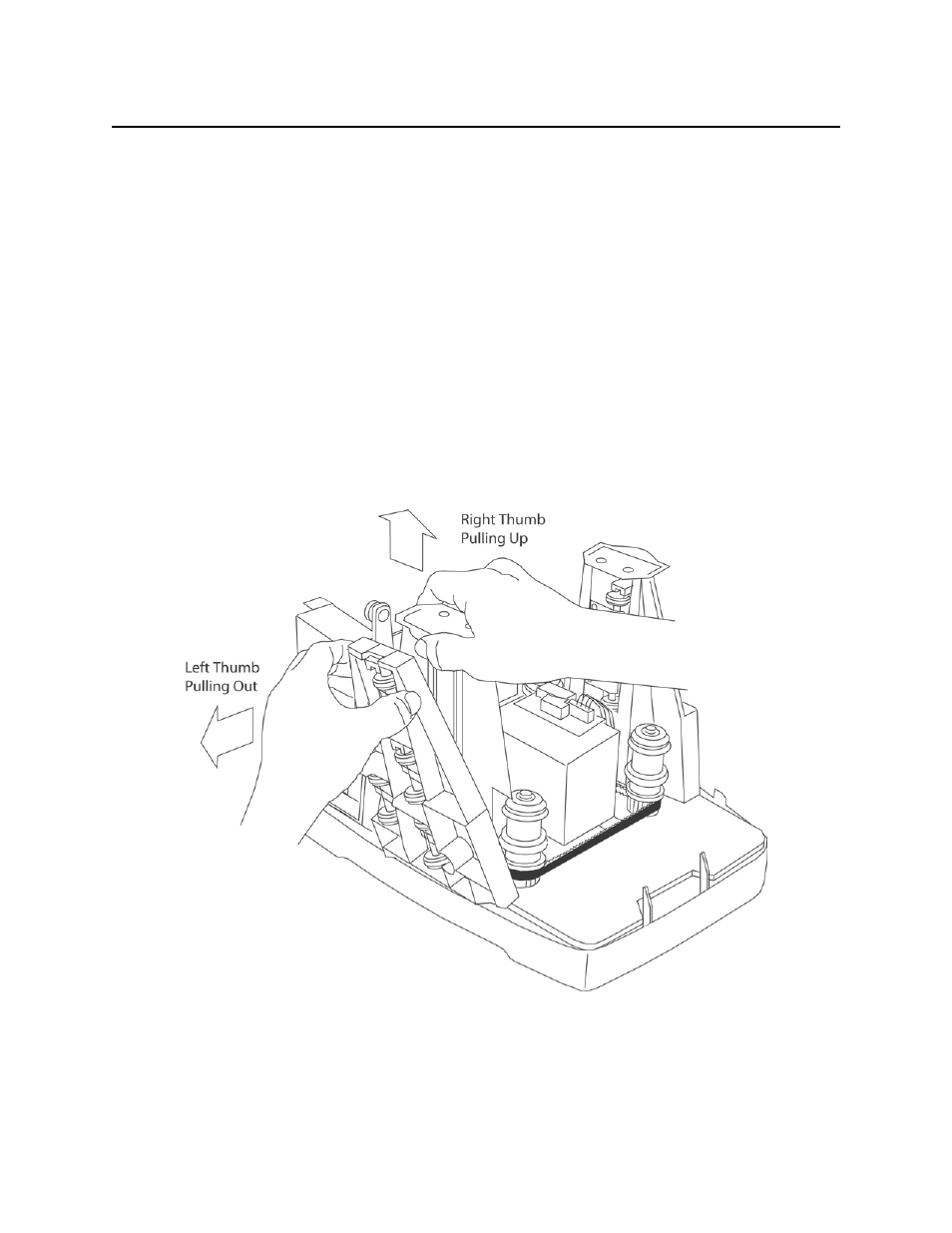

Figure 3-6. Opening Left Scan Bar
