Page 16

IPAD Installation and Operation Manual
10
PRIVACY SHIELD INSTALLATION
To install the Privacy Shield shown in Figure 1-1, follow the steps below.
1. Place the inserts of the curved side of the Privacy Shield into the opening located on the
front surface of the IPAD as shown in Figure 3-2.
2. Align the two remaining tabs of the Privacy Shield with the Guide Holes on top of the
IPAD and press downward.

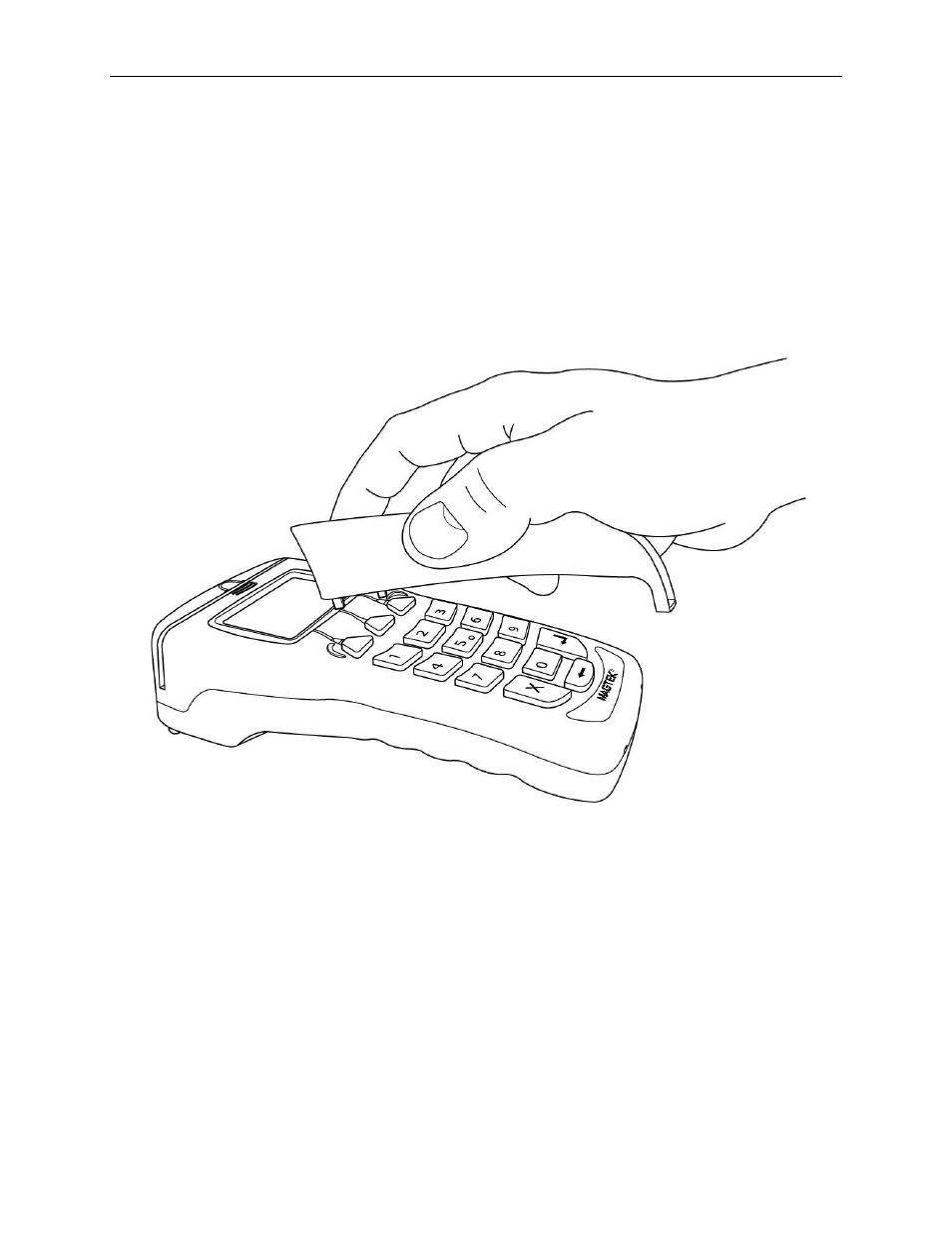

Figure 3-2. Installing the Privacy Shield
