MagTek USB MagneSafe Swipe and Insert Reader V5 User Manual
Page 17
Section 2. Installation
9

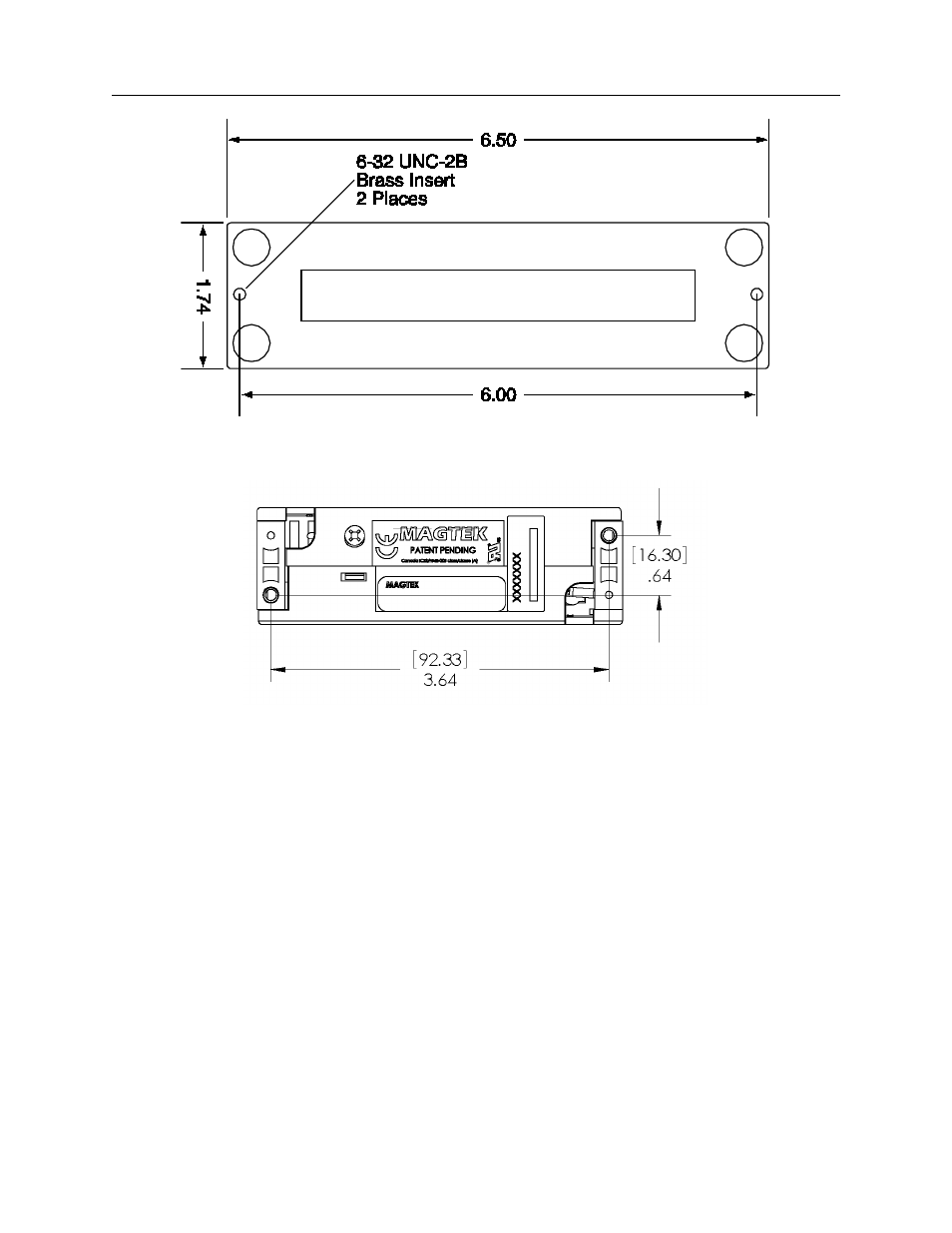

Figure 2-2. Mounting Hole Dimensions for Full Size Reader
Figure 2-3. Mounting Hole Dimensions for Mini Reader
2.
Ensure the Reader is positioned on a flat, accessible surface with at least 4 inches
clearance on either end for room to swipe a card.
If fastening tape is to be used, clean the area that the Reader will be mounted on with
isopropyl alcohol. Remove the adhesive protective cover on the fastening tape, then
position the Reader and push down firmly.
3.
Mount the Reader.
