7
SECTION 2. INSTALLATION
This section describes the cable connection, the Windows Plug and Play Setup, and the physical
mounting of the unit.
USB CONNECTION
Connect the USB cable or dongle for the wireless model to a USB port on the host. The Reader,
LED Indicator, and pin numbers for the 4-pin connector are shown in Figure 2-1.

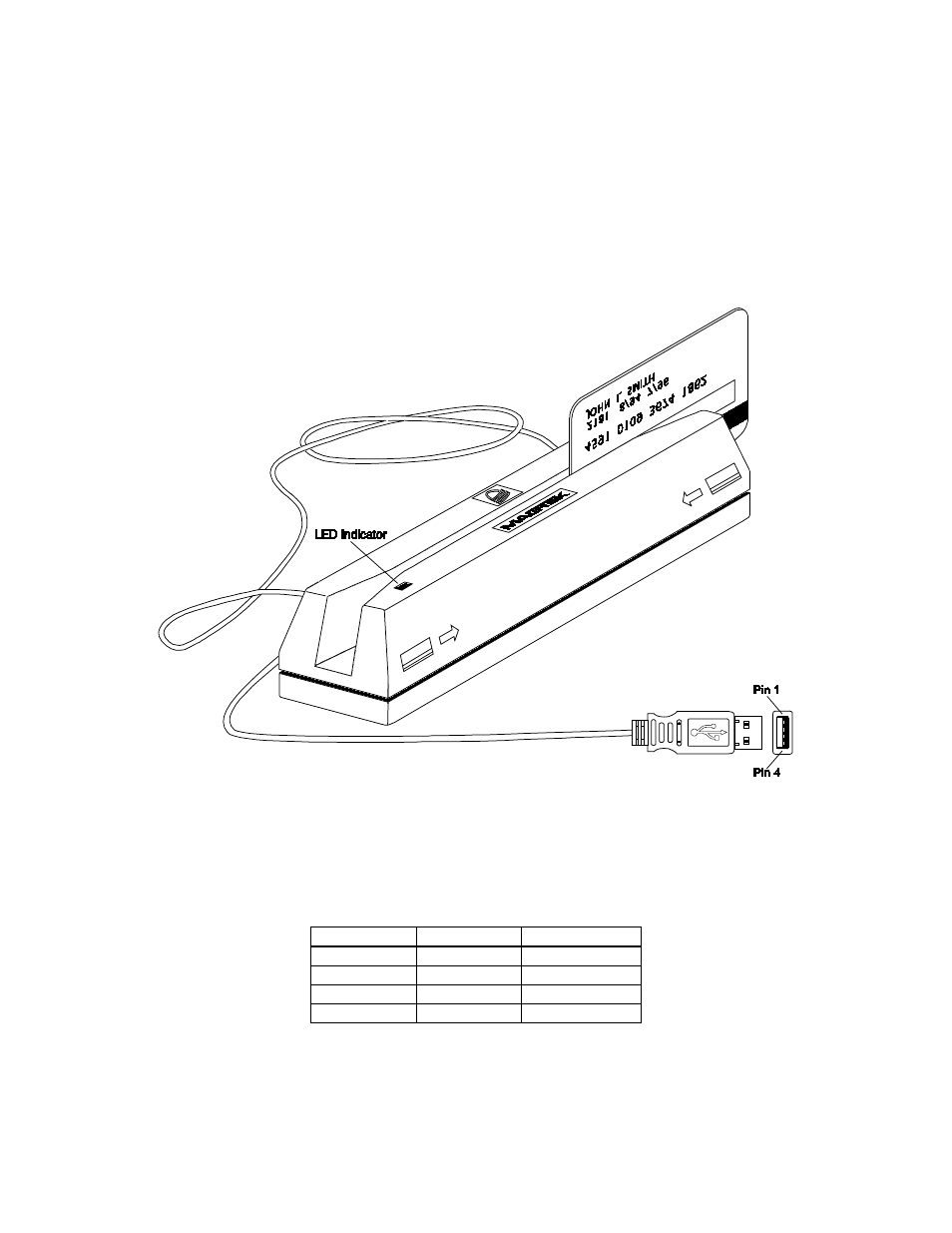

Figure 2-1. Reader Cable and Connector
Pin numbers and signal descriptions for the cable shown in the illustration are listed in Table 2-1.
Table 2-1. 4-Pin Connector
Pin Number Signal Cable Color
1 VBUS Red
2 - Data White
3 +Data Green
4 Ground Black
