15

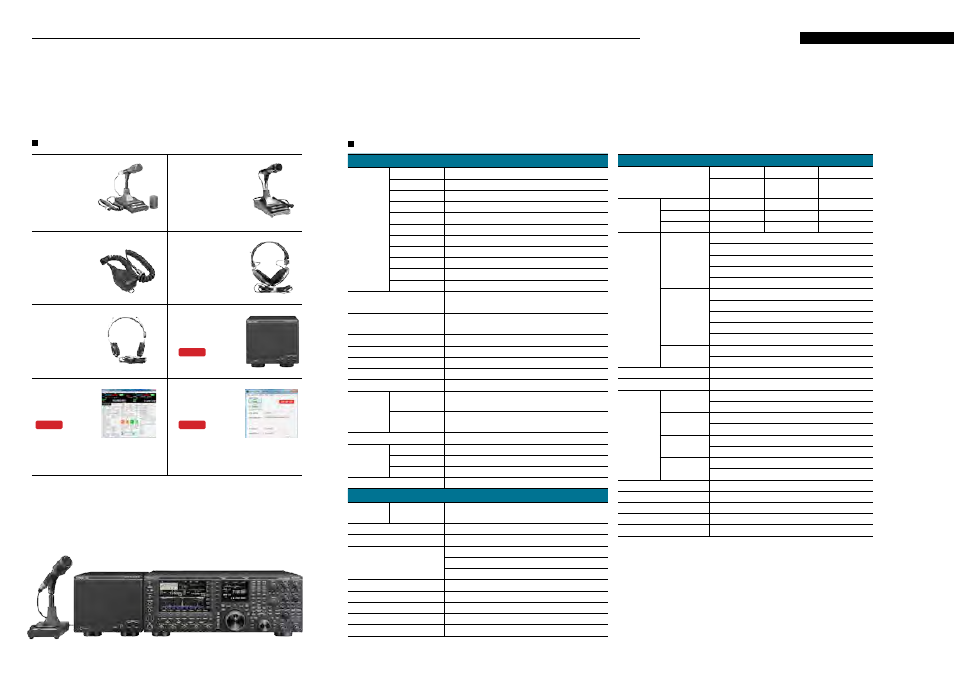

Options/Specifications HF/50MHz TRANSCEIVER TS-990S
Main Options TS-990S Specifications
General
Frequency
range
(Transmitter)
160m band 1.81 ~ 2.0 MHz
80m band 3.5 ~ 3.8 MHz
60m band * 1 5.25 ~ 5.45 MHz
40m band 7.0 ~ 7.2 MHz
30m band 10.1 ~ 10.15 MHz
20m band 14.0 ~ 14.35 MHz
17m band 18.068 ~ 18.168 MHz
15m band 21.0 ~ 21.45 MHz
12m band 24.89 ~ 24.99 MHz
10m band 28.0 ~ 29.7 MHz
6m band 50.0 ~ 52.0 MHz
Frequency range (Receiver)* 2
0.13 ~ 30 MHz, 50 ~ 54 MHz
VFO: Continuous 30 kHz ~ 60 MHz
Mode A1A(CW), A3E(AM), J3E(SSB), F3E(FM),
F1B(FSK), G1B(PSK)
Frequency stability Within ±0.1 ppm (0 °C ~ +50 °C)
Antenna impedance 50 Ω
Antenna tuner load range 16.7 Ω ~ 150 Ω
Standard voltage AC 220 ~ 240 V (50/60 Hz)
Supply voltage range ±10 % (AC 198 V ~ 264 V)
Power
consumption
At transmit
(maximum)
840 VA or less
At receive
(no signal)
200 VA or less
Usable temperature range 0 °C ~ +50 °C
Dimensions
Without projection W460 x H165 x D400 mm
Include projection W460 x H182 x D449 mm
At front leg up position H201 mm ( front panel ), H173 mm (rear panel)
Weight Approx. 24.5 kg
Transmitter
Output power CW/SSB/FSK / PSK /FM (AM) 200 W (50 W)
Modulation SSB:Balanced, AM:Low Power, FM:Reactance
Maximum frequency deviation (FM) wide: ±5 kHz or less, narrow: ±2.5 kHz or less
Spurious emissions
HF (Harmonics) : -60 dB or less
HF (others) : -50 dB or less
50 MHz: -66 dB or less
Carrier suppression -60 dB or less
Unwanted sideband suppression -60 dB or less
Transmit frequency response Within -6 dB ( 300 ~ 2700 Hz)
Microphone impedance 600 Ω
XIT variable range ±9.999 kHz
Receiver
Circuit type
Main Sub1 * 3 Sub2 * 4
Double
superheterodyne
Double
superheterodyne
Triple
superheterodyne
Intermediate
frequency
1st IF 8.248 MHz 11.374 MHz 73.095 MHz
2nd IF (FM) 24 kHz/ (455 kHz) 24 kHz 10.695 MHz
3rd IF (FM) - - 24 kHz / (455 kHz)
Sensitivity
(TYP)
SSB, CW,
FSK, PSK
(S/N 10 dB)
0.5 μV (0.13 ~ 0.522 MHz)
4 μV (0.522 ~ 1.705 MHz)
0.2 μV (1.705 ~ 24.5 MHz)
0.13 μV (24.5 ~ 30 MHz)
0.13 μV (50 ~ 54 MHz)
AM
(S/N 10 dB)
6.3 μV (0.13 ~ 0.522 MHz)
32 μV (0.522 ~ 1.705 MHz)
2 μV (1.705 ~ 24.5 MHz)
1.3 μV (24.5 ~ 30 MHz)
1.3 μV (50 ~ 54 MHz)
FM
(12 dB SINAD) 0.22 μV (28 ~ 30 MHz)
0.22 μV (50 ~ 54 MHz)
Image Rejection Ratio (50 MHz) 70 dB (60 dB) or less
IF Rejection Ratio 70 dB or less
Selectivity
SSB
(LO:200 / HI:2800 Hz) 2.4 kHz or more (-6 dB)
4.4 kHz or less (-60 dB)
CW, FSK, PSK
(WIDTH:500 Hz) 500 Hz or more (-6 dB)
1.2 kHz or less (-60 dB)
AM
(LO:100 / HI:3000 Hz) 6.0 kHz or more (-6 dB)
12 kHz or less (-50 dB)
FM
12 kHz or more (-6 dB)
25 kHz or less (-50 dB)
XIT variable range ±9.999 kHz
Notch filter attenuation 60 dB or more (Auto), 70 dB or more (Manual)
Beat cancel attenuation 40 dB or more
Audio output 1.5 W or more (8 Ω)
Audio output impedance 8 Ω
*1 60m band: Refer to applicable Amateur Radio regulations to your country.
*2 MAIN BAND: Spec. guaranteed in amateur band 160m through 6m
*3 In 160m/80m/40m/20m/15m Amateur bands, IF band width 2.7 kHz or less (SSB, CW, FSK, PSK)
*4 Except in above *3
Internal beat may occur during amateur radio band reception depending on combination of
main band and sub-band frequencies of a main unit.
Spurious signal other than reception signal may appear on band scope (waterfall view) too.
MC-90
Deluxe
Desktop
Microphone
MC-60A
Desktop
Microphone
MC-43S
Hand
Microphone
HS-6* 1
Light Weight
Headphones
ARHP-990
Radio Host
Program
*Freeware
Freeware available for download from
Kenwood website starting late March,
2013
ARCP-990
Radio Control
Program
*Freeware
Freeware available for download from
Kenwood website starting late March,
2013
HS-5* 1
Open-Air
Deluxe
Headphones
SP-990
External
Speaker
* 1:HS-5 and HS-6 are monaural. We recommend using stereo headphones to fully utilize
simultaneous dual reception function of the main unit.
NEW
NEW NEW
