14

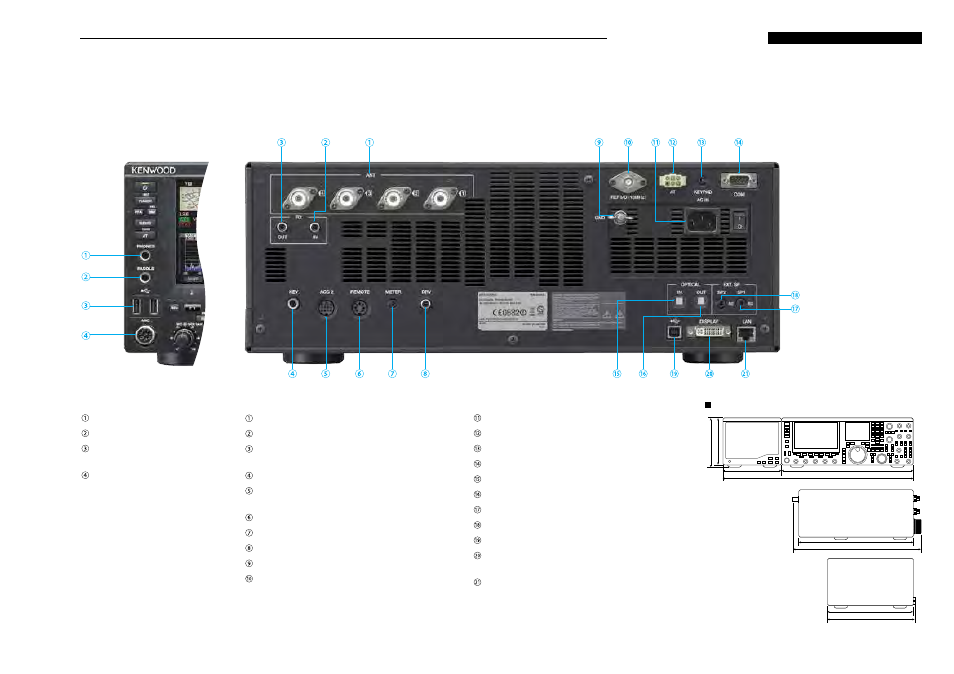

Front/Back Panel HF/50MHz TRANSCEIVER TS-990S
Back Panel
Antenna Connector ×4
RX IN Connector (RCA): Receive Only Antenna Terminal
RX OUT Connector (RCA): External Receiver
Connection Terminal
Key Jack ( ϕ6.3 mm): For Paddle, Straight Key, and PC Keying
ACC2 Connector (13 Pin DIN): Audio I/O and Other
Accessories Connection
Remote Connector (7 Pin DIN): Linear Amplifier Connection
Meter Jack ( ϕ3.5 mm): Analogue Meter Connection
Drive Connector (RCA): Drive Output
Ground Terminal
Standard External I/O Terminal (BNC): 10 MHz
Front Panel
Headphone Jack ( ϕ6.3 mm)
Paddle Keyer ( ϕ6.3 mm)
USB Connector (USB-A):
USB Memory, USB Keyboard
Microphone Jack (8 Pin Metal Type)
AC Power Supply Connector (3 Pin)
AT Connector (6 Pin): External Antenna Tuner Connection
Keypad Jack ( ϕ3.5 mm): Function Key Pad Connection
COM Connector (D-SUB 9 Pin): RS-232C
Optical Connector Input Terminal (EIAJ Optical)
Optical Connector Output Terminal (EIAJ Optical)
External Speaker Jack 1 ( ϕ3.5 mm)
External Speaker Jack 2 ( ϕ3.5 mm)
USB Connector (USB-B): PC Control, USB Audio
Display Connector (DVI-I): External Display
Connection Terminal
LAN Connector (RJ-45): PC Control, Time Correction (NTP)
Front/Rear Panel
Back Panel Front Panel
Dimensions
200
165
182
(201
* )
460
660
400
449
300
306
TS-990S
SP-990
Unit: mm
*At front leg up position
