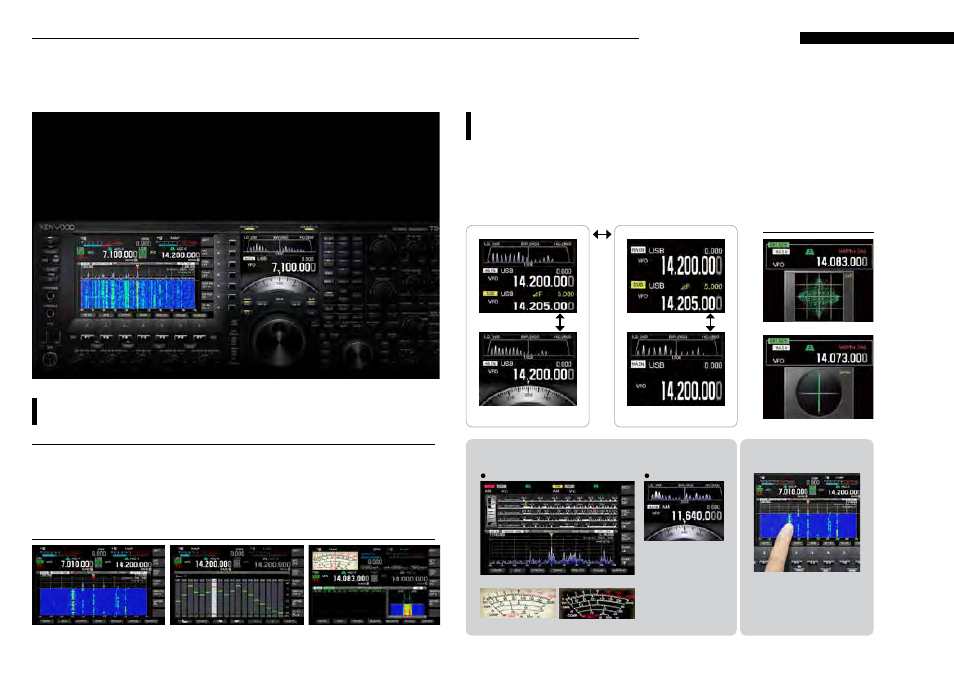

Dual display
The combination of two displays, main and sub band, allows you to simultaneously
monitor the target signal and the surrounding area with minimal eye movement.
Fitted with dual TFT displays
for an intuitive situational understanding.
Main display example views
Equalizer view Waterfall view RTTY reception view
scope function that allows you to monitor band sta-
tus. Execute fast sweeps with FFT processing using
DSP. Switch to different view modes such as water-
fall and reception/transmission equalizer views. The main display shows basic information about
the frequency, mode, meter, and others functions, as
well as the on/off status of the other accessory func-
tions. You can also view internal parameter settings
and memory lists. In addition, it features a band
Main display
Monitor the area surrounding the target signal with the main display
Sub band display monitors the target signal itself
Single frequency display Single frequency display
with virtual dial
Dual frequency display
FSK mode
PSK mode
Magnified frequency display
Simultaneous display
Normal display
Dual frequency display
Basic Screen
The 3.5” TFT sub band display is located above the
main knob, which not only reduces eye movement in
reading the frequency, but also allows you to moni-
tor the target signal itself by displaying the demodu-
lated audio spectrum. In addition, filter effects can
Main display
Wide dial display (Reception specific)
Touch-sensitive
main screen
Simply touch the main screen for
quick QSY.
Sub band display
Analogue dial display
TS-940 type display TS-930 type display
When you are in the mood for a change,
how about these display modes?
be displayed on the easy-to-see sub band display,
allowing for intuitive operation. You can switch the
sub band display between the four different view
modes below according to your intention.
11
Dual display HF/50MHz TRANSCEIVER TS-990S
