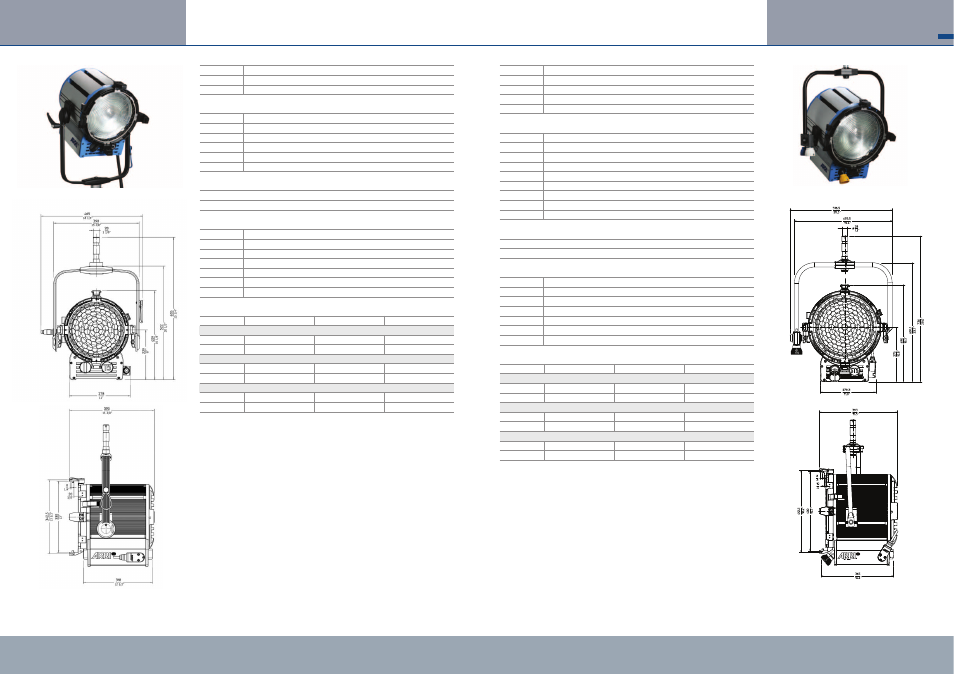

5000W Location Fresnel
ST5
5000W Studio Fresnel
T5
11
ARRI
| TRUE BLUE
10
Part No.
Description
L3.40000.B
T5 5000W Location Fresnel Lamphead, manual, blue/silver
L3.40005.B
T5 5000W Location Fresnel Lamphead, manual, black
All the above are supplied with barndoor and filter frame.
Accessories
L2.40950.0
Four Leaf Barndoor
L2.80970.0
Filter Frame
L2.80975.0
Variable Snoot
L2.80980.0
Set of 4 Scrims (without bag)
L2.88915.1
Scrim bag
L2.89504.0
Universal Stand
Lamps
CP29
5000W 230V G38
Monoplane
CP85
5000W 230V G38
Biplane
Specifications
Weight
11.6kg
Cable
3m
Lens Diameter
250 mm (10”) low expansion borosilicate Fresnel lens
Reflector
Spherical specular high purity aluminium
Lampholder
G22/38
Mounting
28 mm (1 1/8”)
Certification
NRTL-US-C; CE; IP23; TÜV GS
Photometric Data with CP29 Lamp
Throw (m):
12
16
24
Spot 12.5°
Output (lux)
3430
1929
857
Diameter (m)
2.6
3.5
5.3
Medium 30°
Output (lux)
1613
907
403
Diameter (m)
6.4
8.6
12.9
Flood 51°
Output (lux)
923
519
231
Diameter (m)
11.4
15.3
22.9
1000 lux gives correct exposure for 200ASA film with aperture f4 at 24fps
Part No.
Description
L3.41000.B
ST5 5000W Studio Fresnel Lamphead, manual, blue/silver
L3.41005.B
ST5 5000W Studio Fresnel Lamphead, manual, black
L3.41000.I
ST5 5000W Studio Fresnel Lamphead, pole operated, blue/silver
L3.41005.I
ST5 5000W Studio Fresnel Lamphead, pole operated, black
All the above are supplied with barndoor and filter frame.
Accessories
L2.41200.0
Four Leaf Barndoor
L2.41210.0
Eight Leaf Barndoor
L2.81220.0
Filter Frame
L2.81225.0
Variable Snoot
L2.81230.0
Set of 4 Scrims (without bag)
L2.88916.I
Scrim Bag
L2.76990.0
Safety Cable
L2.89079.0
4m Operating Pole for pole-op fixtures
L2.88118.0
Barrel Clamp
Lamps
CP29
5000W 230V G38
Monoplane
CP85
5000W 230V G38
Biplane
Specifications
Weight
13.6kg manual, 15.4kg pole op
Cable
2m
Lens Diameter
300 mm (11.8”) low expansion borosilicate Fresnel lens
Reflector
Spherical specular high purity aluminium
Lampholder
G22/38
Mounting
28 mm (1 1/8”)
Certification
NRTL-US-C; CE; IP23; TÜV GS
Photometric Data with CP29 Lamp
Throw (m):
9
12
18
Spot 11°
Output (lux)
7596
4273
1899
Diameter (m)
1.7
2.3
3.5
Medium 30°
Output (lux)
2639
1485
660
Diameter (m)
4.8
6.4
9.6
Flood 63°
Output (lux)
991
558
248
Diameter (m)
11.0
14.7
22.1
1000 lux gives correct exposure for 200ASA film with aperture f4 at 24fps
