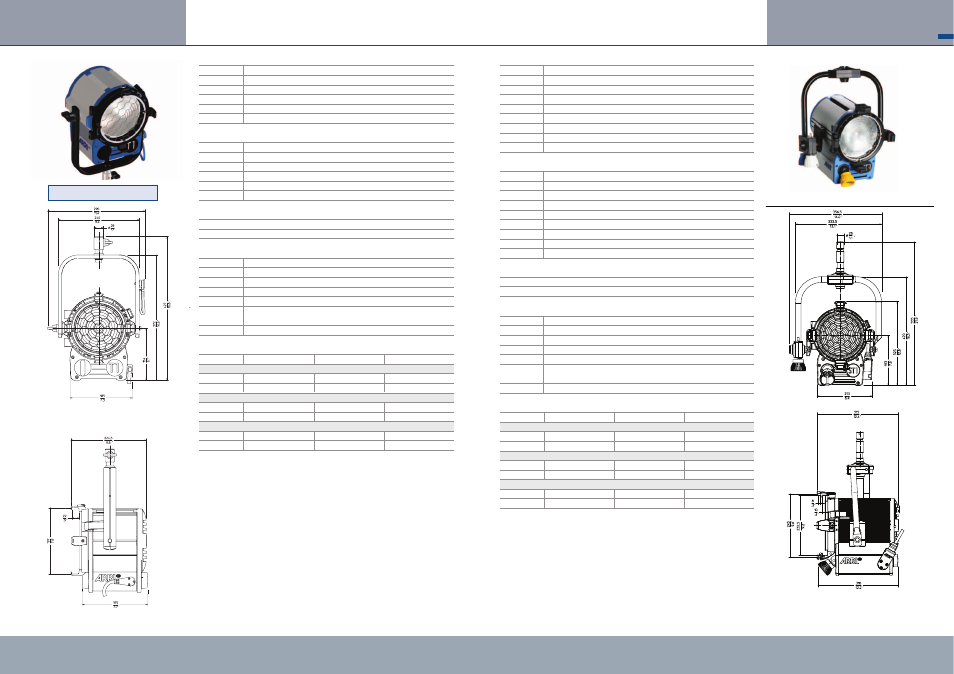

7
ARRI
| TRUE BLUE
6
Part No.
Description
L3.39610.B
T1 1000W Location Fresnel Lamphead, manual, blue/silver
L3.39615.B
T1 1000W Location Fresnel Lamphead, manual, black
L3.39610.I
T1 1000W Location Fresnel Lamphead, pole operated, blue/silver
L3.39610.D
T1 1000W Location Fresnel Lamphead, manual, blue/silver with Schuko plug
L3.79615.D
T1 1000W Location Fresnel Lamphead, manual, black with Schuko plug
All the above are supplied with barndoor and filter frame.
Accessories
L2.39670.0
Four Leaf Barndoor
L2.79690.0
Filter Frame
L2.79680.0
Variable Snoot
L2.79660.0
Set of 4 Scrims (without bag)
L2.88913.1
Scrim bag
L2.76977.0
Large Kit Stand
Lamps
CP40
1000W 230V
G22
Monoplane
CP71
1000W 230V
G22
Biplane
Specifications
Weight
4.6kg manual, 6.5kg pole op
Cable
3m manual, 1.5m pole op
Lens Diameter
150 mm (5.9”) low expansion borosilicate Fresnel lens
Reflector
Spherical specular high purity aluminium
Lampholder
G22/38
Mounting
Combination mount for 16mm (5/8”) or 28mm (1 1/8”) on manual versions,
28mm (1 1/8”) spigot on pole op versions
Certification
NRTL-US-C; CE; IP23; TÜV GS
Photometric Data with CP40 Lamp
Throw (m):
4
6
8
Spot: 11°
Output (lux)
5714
2540
1429
Diameter (m)
0.8
1.2
1.5
Medium: 30°
Output (lux)
2180
969
545
Diameter (m)
2.1
3.2
4.3
Flood: 58°
Output (lux)
1033
459
258
Diameter (m)
4.4
6.7
8.9
1000 lux gives correct exposure for 200ASA film with aperture f4 at 24fps
Part No.
Description
L3.40500.B
ST1 1000W Studio Fresnel Lamphead, manual, blue/silver
L3.40505.B
ST1 1000W Studio Fresnel Lamphead, manual, black
L3.40500.I
ST1 1000W Studio Fresnel Lamphead, pole operated, blue/silver
L3.40505.I
ST1 1000W Studio Fresnel Lamphead, pole operated, black
L3.40500.D
ST1 1000W Studio Fresnel Lamphead, manual, blue/silver with Schuko plug
L3.40505.D
ST1 1000W Studio Fresnel Lamphead, manual, black with Schuko plug
L3.40500.K
ST1 1000W Studio Fresnel Lamphead, pole operated, blue/silver with Schuko plug
L3.40505.K
ST1 1000W Studio Fresnel Lamphead, pole operated, black with Schuko plug
All the above are supplied with barndoor and filter frame.
Accessories
L2.39870.0
Four Leaf Barndoor
L2.39900.0
Eight Leaf Barndoor
L2.79890.0
Filter Frame
L2.79880.0
Variable Snoot
L2.79860.0
Set of 4 Scrims (without bag)
L2.88914.1
Scrim Bag
L2.76990.0
Safety Cable
L2.89079.0
4m Operating Pole for pole-op fixtures
L2.88118.0
Barrel Clamp
Lamps
CP40
1000W 230V
G22
Monoplane
CP71
1000W 230V
G22
Biplane
Specifications
Weight
7kg manual, 8.5kg pole op
Cable
1.5m
Lens Diameter
175 mm (6.9”) low expansion borosilicate Fresnel lens
Reflector
Spherical specular high purity aluminium
Lampholder
G22/38
Mounting
Combination mount for 16mm (5/8”) or 28mm (1 1/8”) on manual versions,
28mm (1 1/8”) spigot on pole op versions
Certification
NRTL-US-C; CE; IP23; TÜV GS
Photometric Data with CP40 Lamp
Throw (m):
4
6
8
Spot 13°
Output (lux)
5920
2631
1480
Diameter (m)
0.9
1.4
1.8
Medium 30°
Output (lux)
2605
1158
651
Diameter (m)
2.1
3.2
4.3
Flood 57°
Output (lux)
1050
467
263
Diameter (m)
4.3
6.5
8.7
1000 lux gives correct exposure for 200ASA film with aperture f4 at 24fps
1000W Location Fresnel
ST1
1000W Studio Fresnel
T1
AVAILABLE SEPTEMBER 2008
