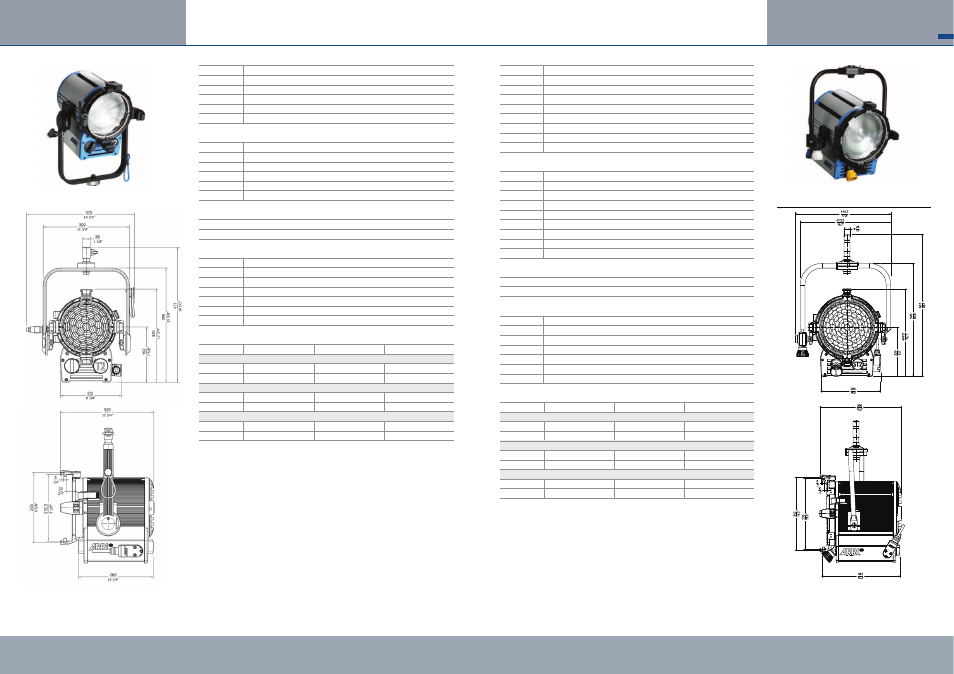

Page 5
2000W Location Fresnel
ST2
2000W Studio Fresnel
T2
9
ARRI
| TRUE BLUE
8
Part No.
Description
L3.41250.B
T2 2000W Location Fresnel Lamphead, manual, blue/silver
L3.41255.B
T2 2000W Location Fresnel Lamphead, manual, black
L3.41250.I
T2 2000W Location Fresnel Lamphead, pole operated, blue/silver
L3.41250.D
T2 2000W Location Fresnel Lamphead, manual, blue/silver with Schuko plug
L3.41255.D
T2 2000W Location Fresnel Lamphead, manual, black with Schuko plug
All the above are supplied with barndoor and filter frame.
Accessories
L2.39870.0
Four Leaf Barndoor
L2.79890.0
Filter Frame
L2.79880.0
Variable Snoot
L2.79860.0
Set of 4 Scrims (without bag)
L2.88914.1
Scrim bag
L2.88717.0
Cine Stand
Lamps
CP41
2000W
230V G38
Monoplane
CP73
2000W 230V G38
Biplane
Specifications
Weight
7.3kg manual, 8.4kg pole op
Cable
3m manual, 1.5m pole op
Lens Diameter
175 mm (6.9”) low expansion borosilicate Fresnel lens
Reflector
Spherical specular high purity aluminium
Lampholder
G22/38
Mounting
28 mm (1 1/8”)
Certification
NRTL-US-C; CE; IP23; TÜV GS
Photometric Data with CP41 Lamp
Throw (m):
6
9
12
Spot 13°
Output (lux)
5058
2248
1264
Diameter (m)
1.4
2.1
2.7
Medium 30°
Output (lux)
1865
829
466
Diameter (m)
3.2
4.8
6.4
Flood 60°
Output (lux)
825
367
206
Diameter (m)
6.9
10.4
13.9
1000 lux gives correct exposure for 200ASA film with aperture f4 at 24fps
Part No.
Description
L3.40750.B
ST2 2000W Studio Fresnel Lamphead, manual, blue/silver
L3.40755.B
ST2 2000W Studio Fresnel Lamphead, manual, black
L3.40750.I
ST2 2000W Studio Fresnel Lamphead, pole operated, blue/silver
L3.40755.I
ST2 2000W Studio Fresnel Lamphead, pole operated, black
L3.40750.D
ST2 2000W Studio Fresnel Lamphead, manual, blue/silver with Schuko plug
L3.40755.D
ST2 2000W Studio Fresnel Lamphead, manual, black with Schuko plug
L3.40750.K
ST2 2000W Studio Fresnel Lamphead, pole operated, blue/silver with Schuko plug
L3.40755.K
ST2 2000W Studio Fresnel Lamphead, pole operated, black with Schuko plug
All the above are supplied with barndoor and filter frame.
Accessories
L2.40950.0
Four Leaf Barndoor
L2.40960.0
Eight Leaf Barndoor
L2.80970.0
Filter Frame
L2.80975.0
Variable Snoot
L2.80980.0
Set of 4 Scrims (without bag)
L2.88915.I
Scrim Bag
L2.76990.0
Safety Cable
L2.89079.0
4m Operating Pole for pole-op fixtures
L2.88118.0
Barrel Clamp
Lamps
CP41
2000W 230V G38
Monoplane
CP73
2000W 230V G38
Biplane
Specifications
Weight
10.6kg manual, 12.2kg pole op
Cable
1.5m
Lens Diameter
250 mm (10”) low expansion borosilicate Fresnel lens
Reflector
Spherical specular high purity aluminium
Lampholder
G22/38
Mounting
28 mm (1 1/8”)
Certification
NRTL-US-C; CE; IP23; TÜV GS
Photometric Data with CP41 Lamp
Throw (m):
6
9
12
Spot 9°
Output (lux)
10603
4712
2651
Diameter (m)
0.9
1.4
1.9
Medium 30°
Output (lux)
2420
1076
605
Diameter (m)
3.2
4.8
6.4
Flood 56°
Output (lux)
1135
504
284
Diameter (m)
6.4
9.6
12.8
1000 lux gives correct exposure for 200ASA film with aperture f4 at 24fps
