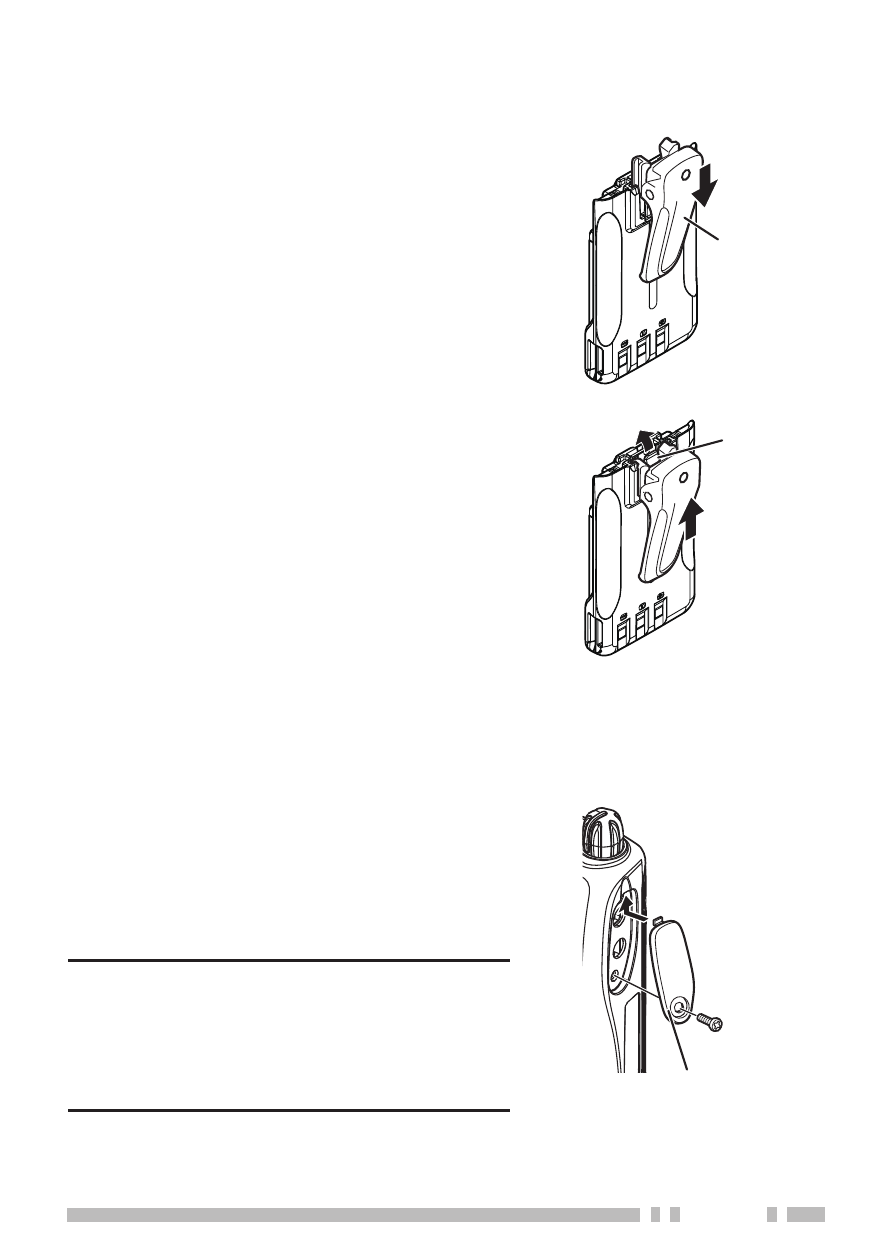

INSTALLING THE BELT CLIP

1 Remove the battery pack. {p. 2}

2 To install the belt clip, align the

guides of the belt clip with the

grooves on the rear of the battery

pack, then slide the belt clip into

place until the lock lever is secure.

Belt clip

If you are not using a speaker/

microphone or Headset, install the

cap over the speaker/ microphone

jacks using the supplied M3 x 6 mm

screws.

Note:

◆ To keep the transceiver water

resistant, you must cover the

speaker/ microphone jacks with

the supplied cap.

INSTALLING THE CAP OVER THE SPEAKER/ MICROPHONE

JACKS

cap

Lock lever

3 To remove the belt clip, push the

lock lever towards the transceiver

while sliding the belt clip up.
