Page 7: Total access ps/bc
61180043L2-5D
1
Total Access Rackmount 6-Amp Power
Supply Battery Charger
GENERAL
This practice is an installation and maintenance guide for the ADTRAN
®
Total Access
®
Rackmount 6-Amp Power Supply Battery Charger (PS/BC).

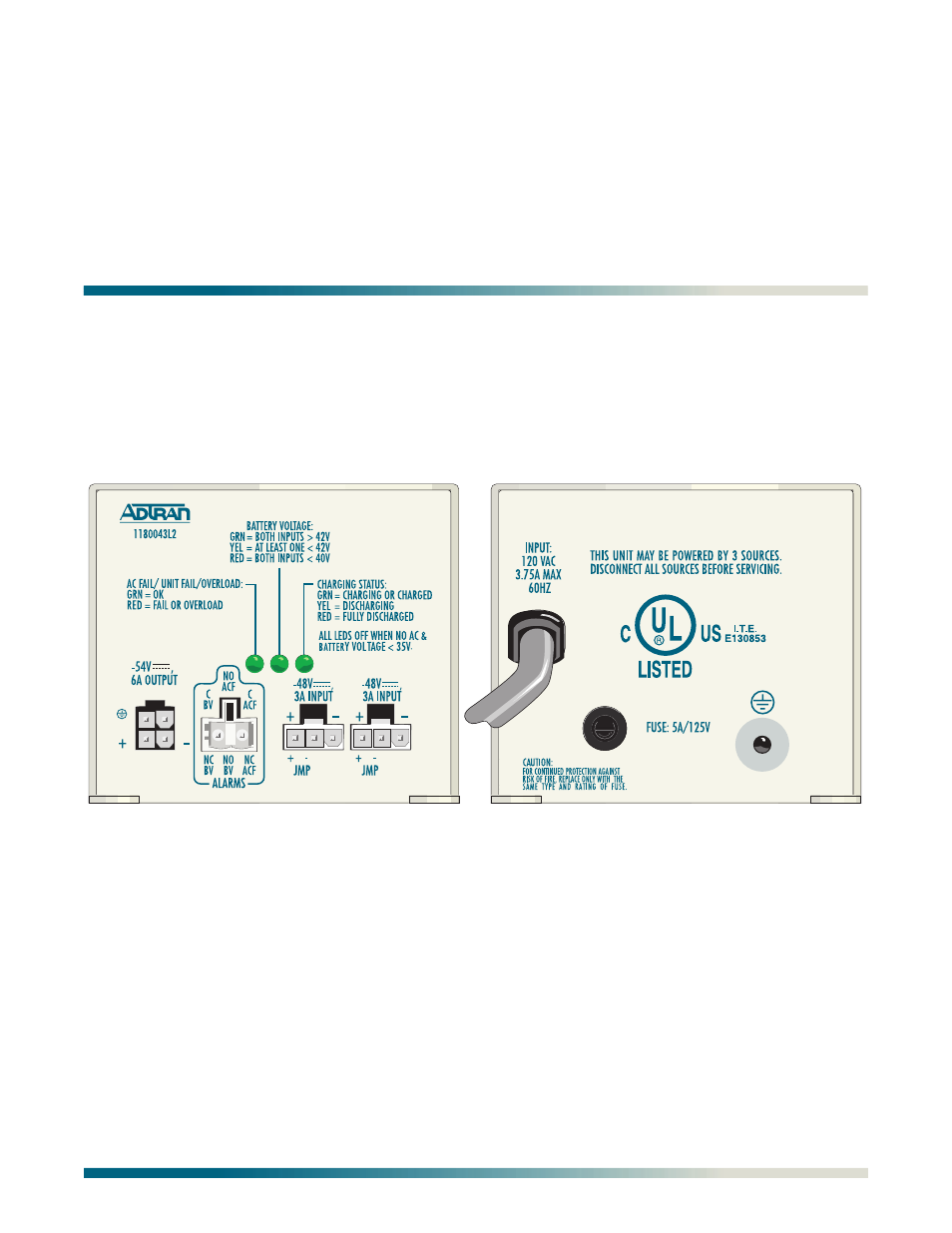

illustrates the PS/BC
(P/N 1180043L2) right and left side panels.
Figure 1. Total Access PS/BC
Features
The Total Access PS/BC features include the following:
• –54 VDC at 6-amps output for multiple use
• Modular connections for two backup battery packs
• Modular power output connection
• LED status for VAC, VDC, and battery charging
• Full battery recharge in less than eight hours
• Two PS/BC configuration options available
F
USE
F
USE
