Total Access Rackmount 6-Amp Power Supply Battery Charger Installation and Maintenance Practice
6
61180043L2-5D
Mounting the PS/BC
The PS/BC housing occupies a nominal area 15.35 inches (with mounting tabs) wide by 3.45
inches high and is designed so the four mounting tab screw holes align to threaded screw
holes on the ADTRAN battery pack housing. This procedure assumes that the battery pack is
mounted in the designated 19-inch or 23-inch rack. Hardware for mounting the PS/BC to the
battery pack is included. To mount the PS/BC, perform the following steps:
1. Ensure a 120 VAC wall outlet is within reach of the PS/BC 10-foot power cord.
2. Determine the most convenient direction to view the status LEDs and position the PS/BC
accordingly.
3. Align the mounting tabs to the threaded mounting holes on the battery pack.
4. Using the included “sems” screws with star washer, mount the PS/BC to the battery pack.
Tighten fasteners firmly.
See
for a representative example of the PS/BC mounted to the battery.

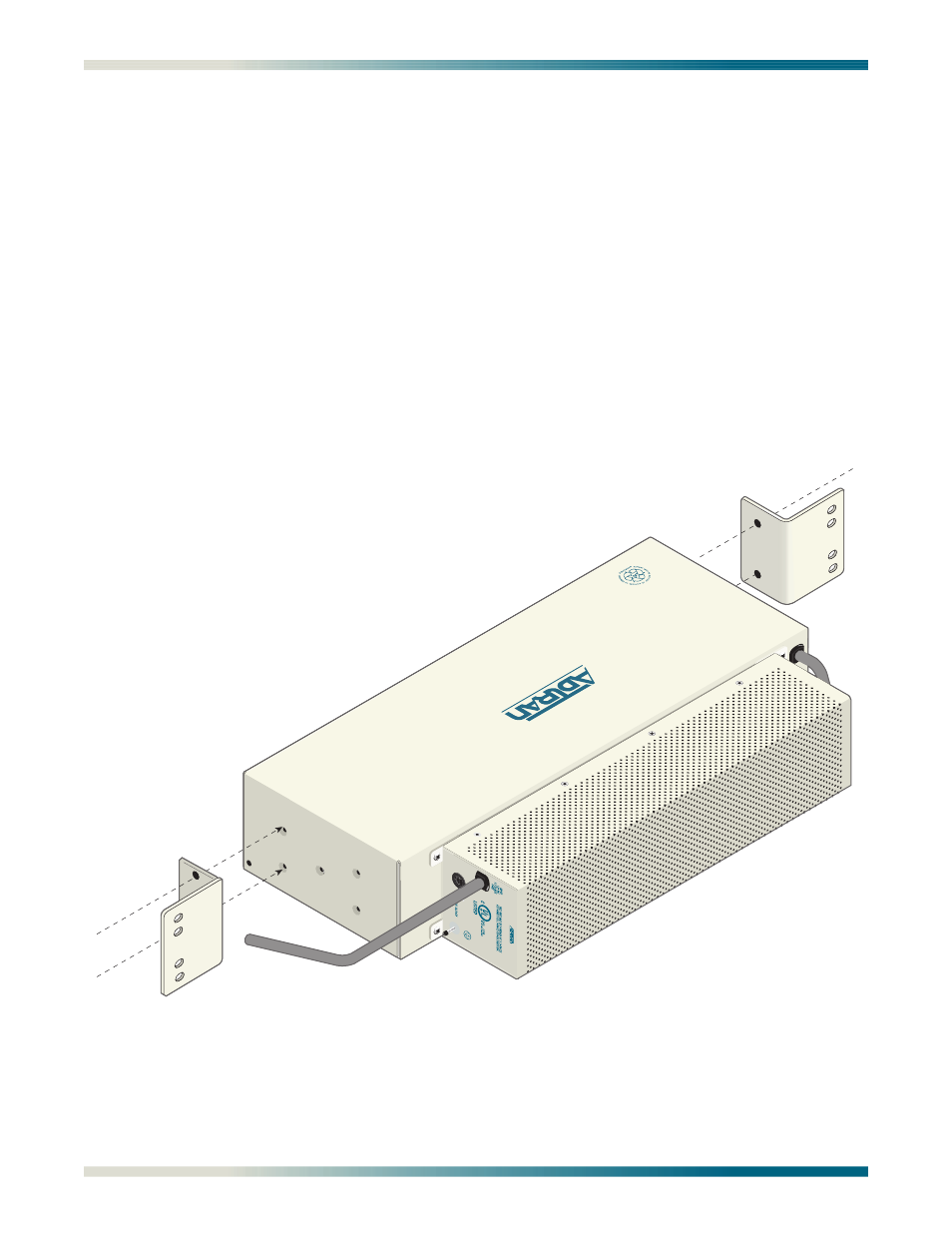

Figure 2. PS/BC Mounted On Battery Pack
1175044L1
BA
TTER
Y BACKUP
WA
RNING:
SC
RE
W LE
NG
TH
S E
XC
EE
DIN
G 3/8"
MA
Y P
UN
CT
UR
E B
AT
TR
IES
.
1175044L1
BA
TTER
Y BACKUP
WARNING:
SCR
EW
LE
NG
THS
EX
CEE
DIN
G 3/8"
MAY
PU
NCTU
RE B
ATT
RIE
S.
1180043L2
CA
UTION:
FOR CONTINUED PR
O
TECTION A
G
AINST
RISK OF FIRE, REPLA
CE ONL
Y WITH THE
SAME TYPE AND RA
TING OF FUSE
.
FUSE:
12A/125V
F
U
S
E
F
U
S
E
