30
Quick Start Guide

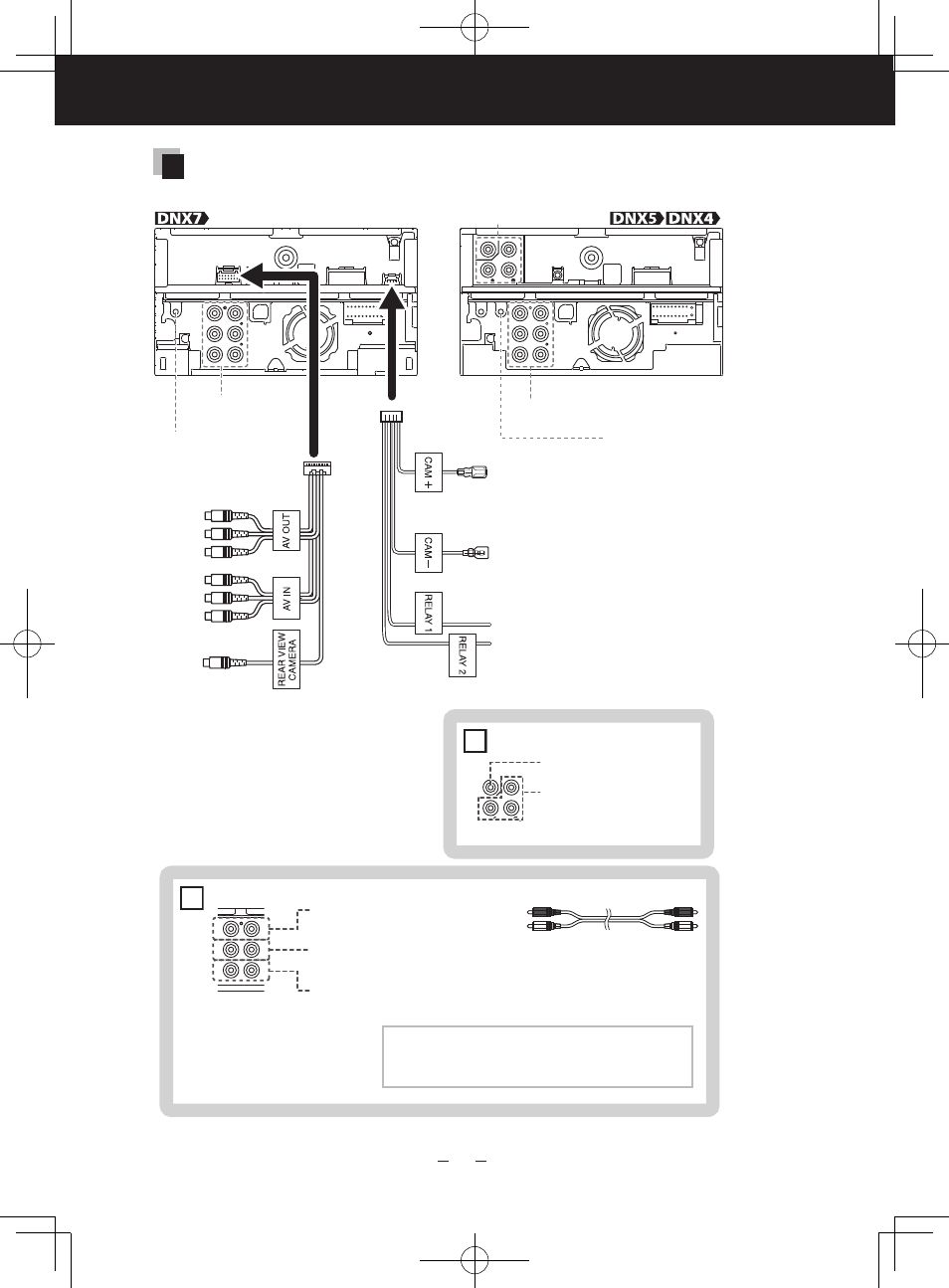

System connection
*1 DNX4280BT only
NOTE
• Front and subwoofer preout are unavailable for
DNX4280BT.
Accessory 4
Accessory 2
iPod/AV input 2
CA-C3AV
(Optional Accessory)
AV input* 1
CA-C3AV
(Optional accessory)
Refer to
the box2 below
Refer to
the box2 below
Green/Red
Green/White
Blue/Red
Blue/Red
Refer to
the box1 below
To Camera
control terminal
To Relay Box
Rear View Camera Input
- Yellow (Visual Input)
Audio/Visual Output
- Yellow (Visual Output)
- White (Audio Left Output)
- Red (Audio Right Output)
1
Rear Preout
- Red (Audio Right Output)
- White (Audio Left Output)
Front Preout
- Red (Audio Right Output)
- White (Audio Left Output)
Subwoofer Preout
- Red (Audio Right Output)
- White (Audio Left Output)
Red
White White
Use an RCA cable as shown in
above diagram.
Red
2
