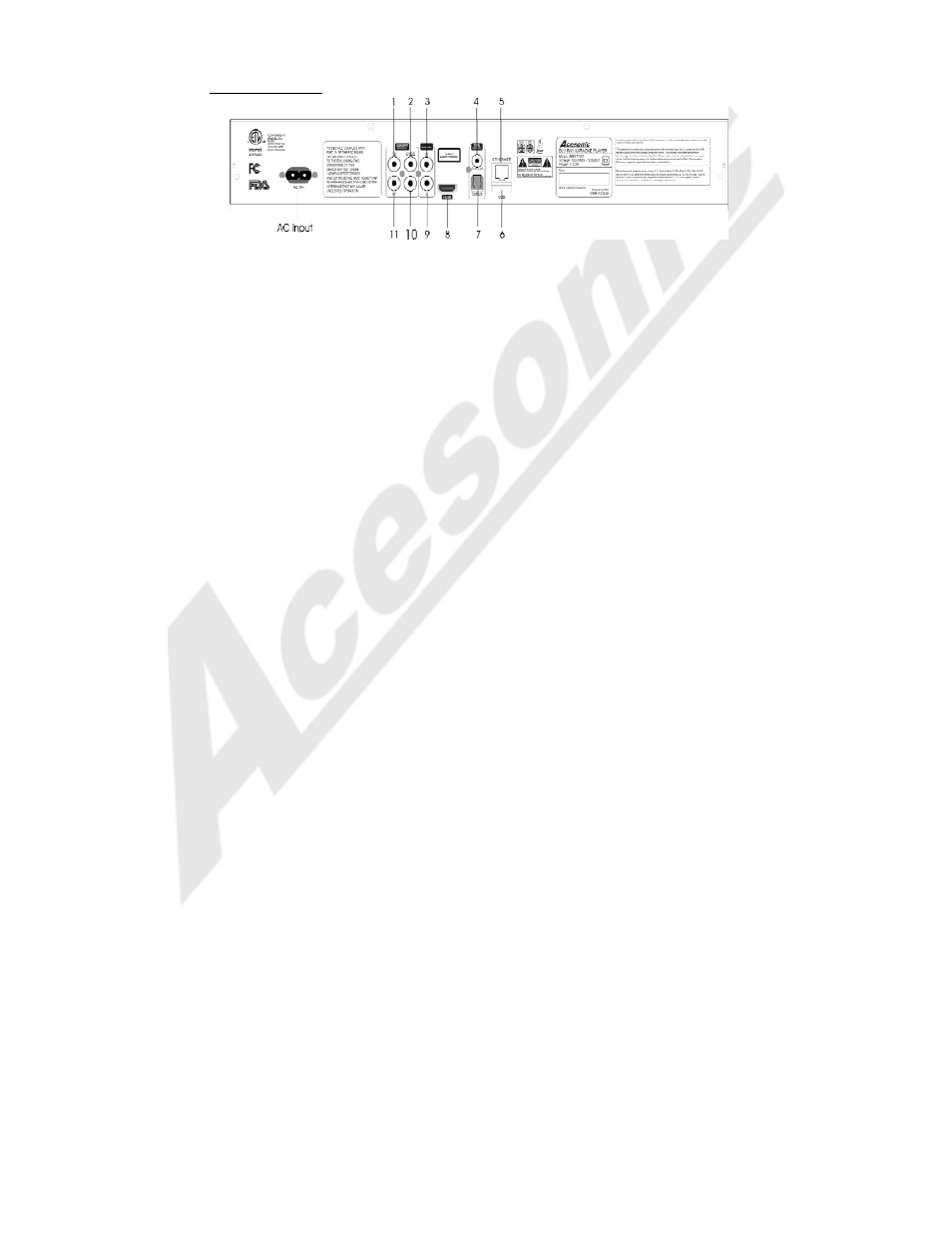

Rear Panel Operation:
AC Cord Input - Connection to the auto-detect AC power supply (100-240V,50-60 Hz).
Rear Panel Connections
1) Component Video Output (Pb) Blue Difference channel
output.
2) Component Video Output – (CVBS) Luma (Luminance)
output.
3) MIXED AUDIO OUTPUT (R) – Right channel RCA
outputs for mixed vocals and music audio output.
4) COAXIAL OUTPUT - Coaxial digital output to connect
with a digital amplifier or receiver for Dolby Digital or DTS
sound.
5) LAN (Local Area Network) – Connects the BDK-2000 to
an Ethernet port.
6) USB Port - Use this interface to connect USB devices
such as flash drives or external hard drives.
7) OPTICAL OUTPUT – SPDIF Optical output for
connection with a digital amplifier or receiver for Dolby
Digital or DTS sound.
8) HDMI Video Output – Used to connect the unit to a High
Def. TV through the HDMI input.
9) MIXED AUDIO OUTPUT (L) – Left channel RCA outputs
for mixed vocals and music audio output.
10) Composite Video Output – (NTSC or PAL output) used
to connect to a standard TV through the Video input.
11) Component Video Output – (Pr) Red Difference
channel output.
