Radio and HD Radio Tuner Operation
Radio/HD Radio Tuner Basic Operation
Most functions can be controlled from the source control screen.
NOTE
• Set the remote control mode switch to AUD mode before starting operation, see Switching the operation mode
(P.121) .
• HD Radio broadcasting can be received only by the DNX891HD, DNX771HD, DNX691HD, DNX571HD, and
DNX571EX.
• HD Radio broadcasting is for North American sales area only.
• The screen shot below is for tuner. It may be different from the one for HD Radio broadcasting.
2
1
3 3 4 4 5 8
6
2
7

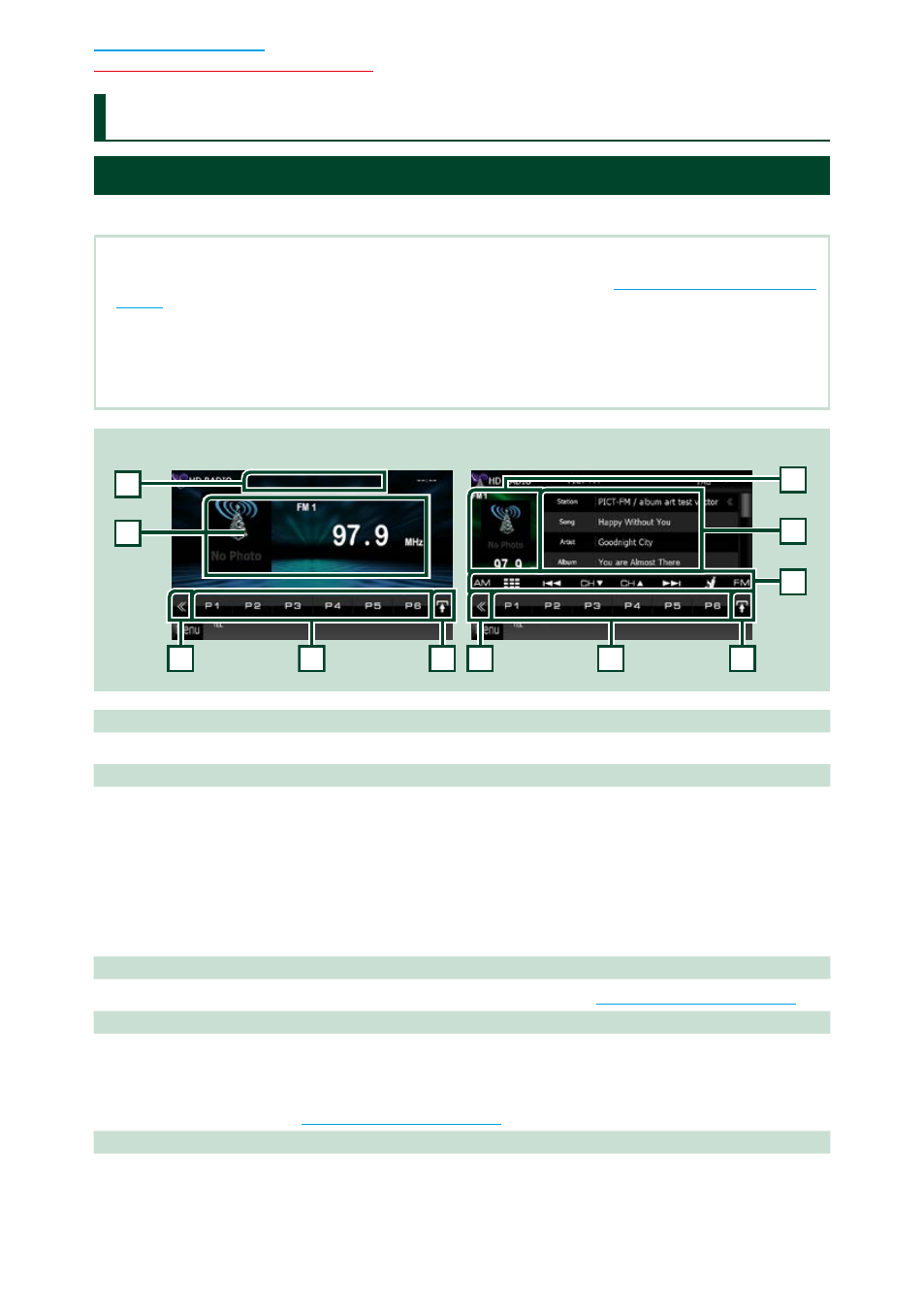

Simple Control screen List Control screen
1 PS/Station name display
Displays the PS name or station name.
2 Information display/Control switching area
Displays the following information.
• Picture: The picture data or station Logo data is displayed if available from current content.
• [FM1] etc.: Band display
• MHz/kHz: Frequency display
• Preset #: Preset number
• HD# (HD Radio tuner only): Channel display
Touch to switch between the Simple Control and List Control screen.
3 Multi function key
Touch to switch the multi function menu. For details on the menu, see
Multi function menu (P.61) .
4 Preset key/Multi function menu
Recalls the memorized station or channel. When touched for 2 seconds, stores the current receiving
station or channel in memory.
When switched, various functions can be performed by using keys in this area.
For details on the menu, see
Multi function menu (P.61) .
5 Sub function key
Touch to display “Sub function menu” (7 in this table).
