Operation
KDAR Company

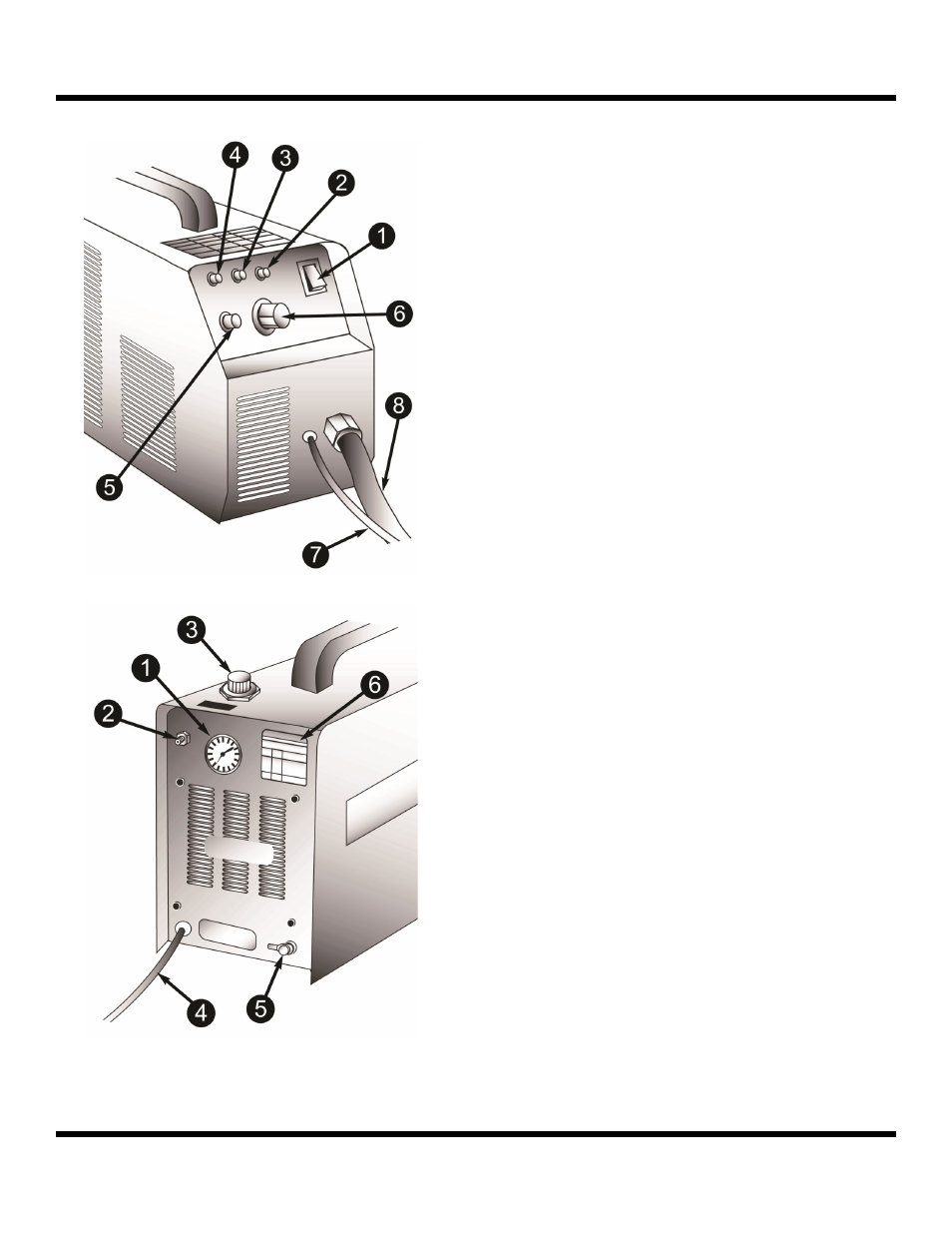

Controls—Front
1. Power Switch
2. Power on indicator light—green light will illumi-
nate whenever power is on.
3. Gas Pressure—will illuminate if air/gas pressure
falls below minimum requirements.
4. Thermal—will illuminate if the unit has exceeded
maximum safe operating temperature.
Note: Illumination of either the Gas Pressure or
Thermal light will coincide with the unit shut-
ting down. Do not turn off power when thermal
light is on, fan is needed to cool the unit.
5. Purge—press to test air flow
6. Output Control—Used to set cutting output.
7. Ground Clamp Wire
8. Cutting Nozzle Cable
Controls—Back
1. Air Pressure Gauge
2. Air inlet
3. Air Pressure Control Knob—pull up on knob turn
clockwise to increase pressure and counter clock-
wise to decrease pressure.
4. Power Cord
5. Grounding Terminal
6. Specifications Label
