4/29/03

Model Trademaster

Section I -

6





























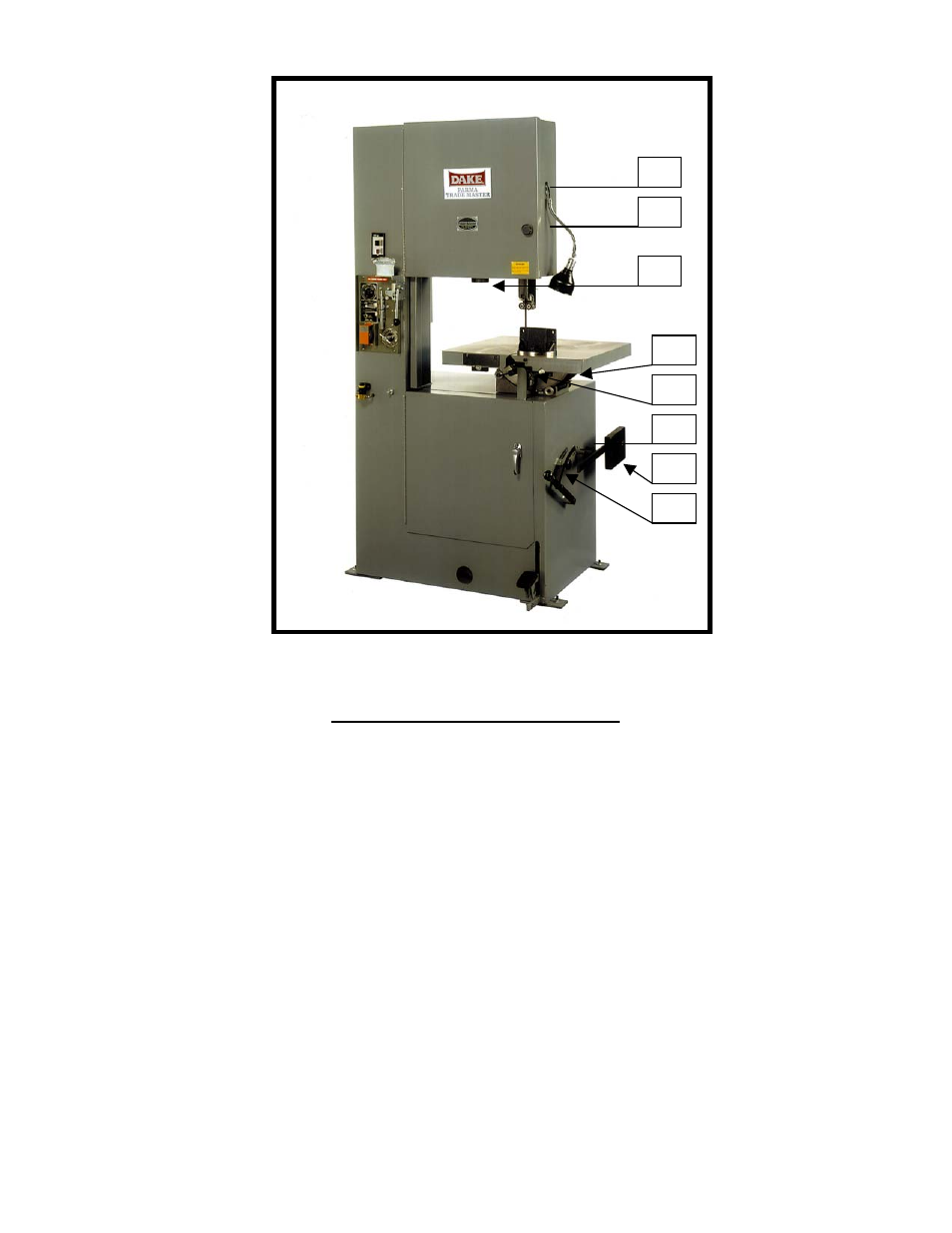

TRADEMASTER ADJUSTMENTS

A

WHEEL CANT ADJUSTMENT– Used to position blade on wheel.

B

GUIDE BAR LOCK – Used to lock roll guides into position.

C

BLADE TENSION HANDLE – Used to remove and install saw blade. Also used

to set the correct blade tension – be sure blade is tight.

D

ROCKER LOCK KNOB – Used to unlock & move table to desired degree angle

of cut then lock into position.

E

TABLE LOCK KNOB – Used to lock table into a fixed position.

F

VARIABLE SPEED LOCK – Unlock lock and move to the desired blade speed &

relock.

H

HYDRAULIC FEED CYLINDER – Used to regulate the table feed.

A

B

C

E

D

H

G

F
