Dake Power Hammer
7
Set up and Operation of the Dake Power Hammer
WARNING !!!
Before turning on power to your Dake power hammer be sure to review all safety stickers and
warnings.

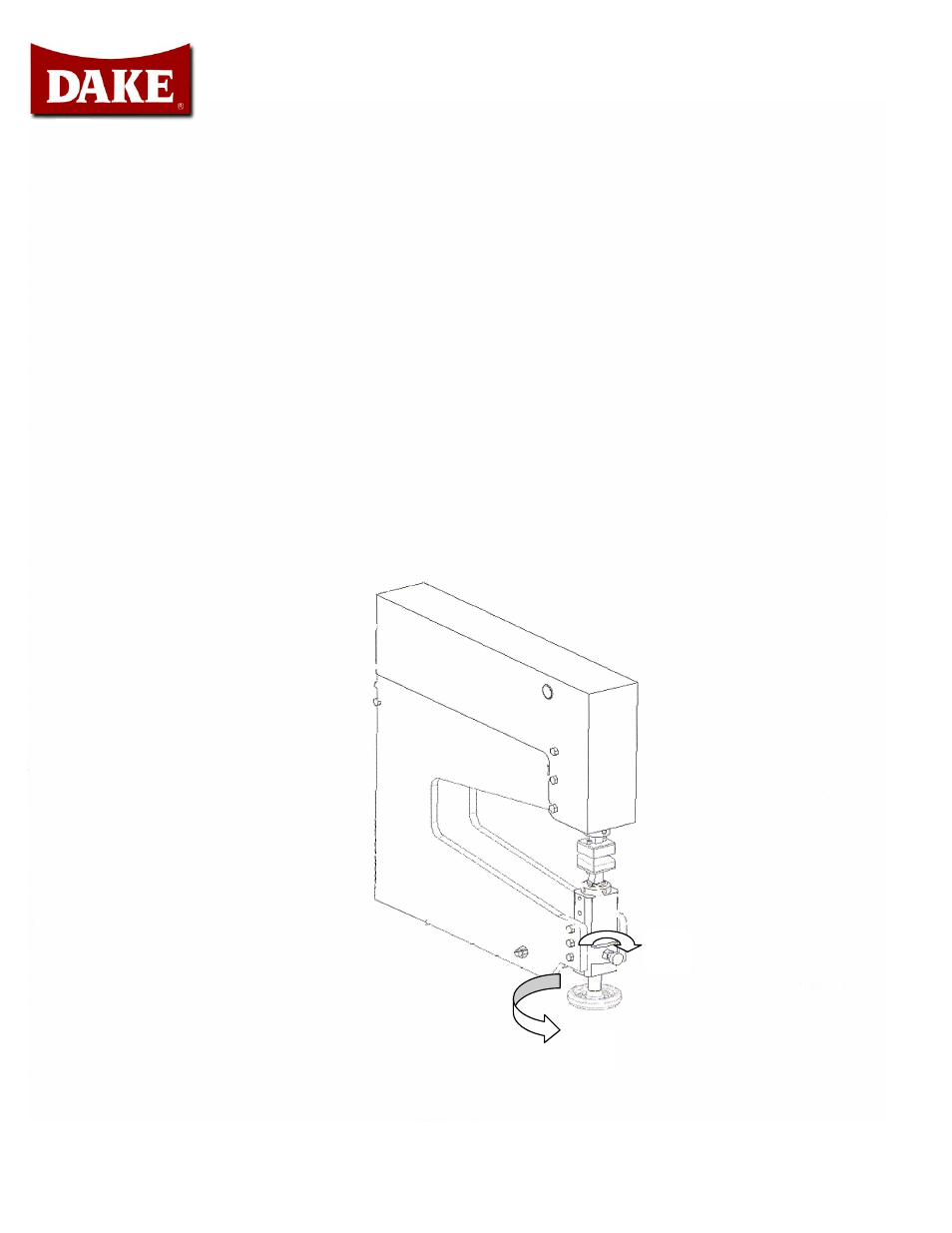

N. With the motor turned on, the upper die holder will begin to oscillate. Rotate the adjusting screw
handle to move the lower die up until just before it touches the upper die. This is a good initial
setting to try shaping with.
O. With the die gap set to your desired setting, tighten the lock screw on the adjustable bottom sleeve
to lock in the gap setting. Repeat steps N and O for any future gap adjustments, up or down.
O
N
