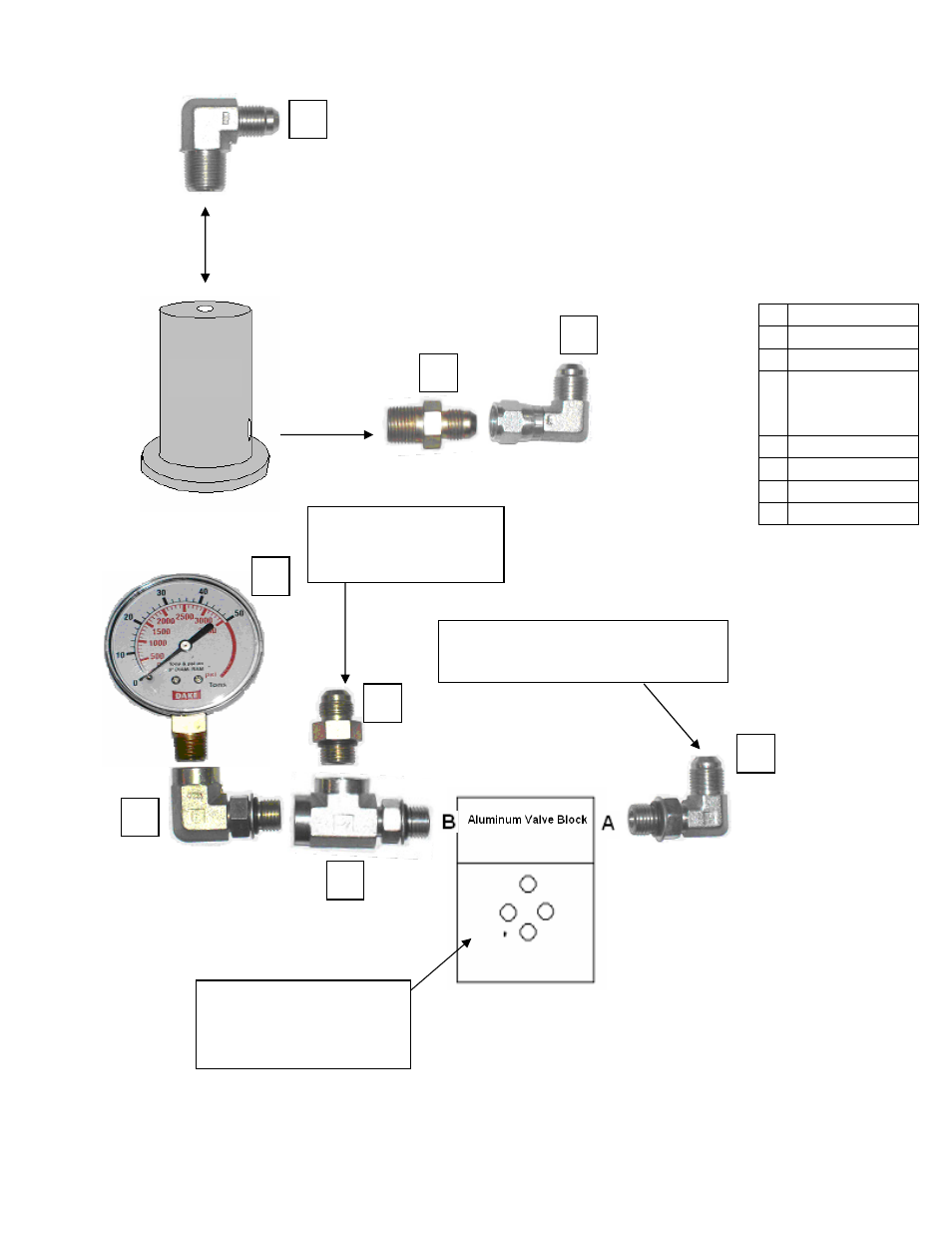

How to install the fittings on your new hydraulic press
A Port
B Port
WARNING!!!
Be sure all fittings and bolts are tight.
Do not over tighten fittings or bolts.
1 72050
2 73425
3 72047
4 10 ton 301315
25 ton 301316
50 ton 302179
5 69671
6 72402
7 302183
8 302061
Joy stick valve mounts
here. It only fits one
way.
Hydraulic hose
connects here and to
the A port.
Hydraulic hose connects here and
to the B port.
Cylinder
1
2
3
4
5
6
7
8
