10. Package Information
9. Ordering Information
Extended Type Number Package Remarks
ATR7040-PVPG QFN16, 3 × 3 Taped and reeled, MOQ 2000, Pb-free
ATR7040-PVQG QFN16, 3 × 3 Taped and reeled, MOQ 8000, Pb-free
1
4
16
0.25
3
1.7
16 13
12 1
5 8
0.4
±0.1
0.9 ±0.1
0.05
0.5 nom.
1.5
+0
-0.05
2.68
0.15
specifications
according to DIN
technical drawings
Not indicated tolerances ±0.05
Dimensions in mm

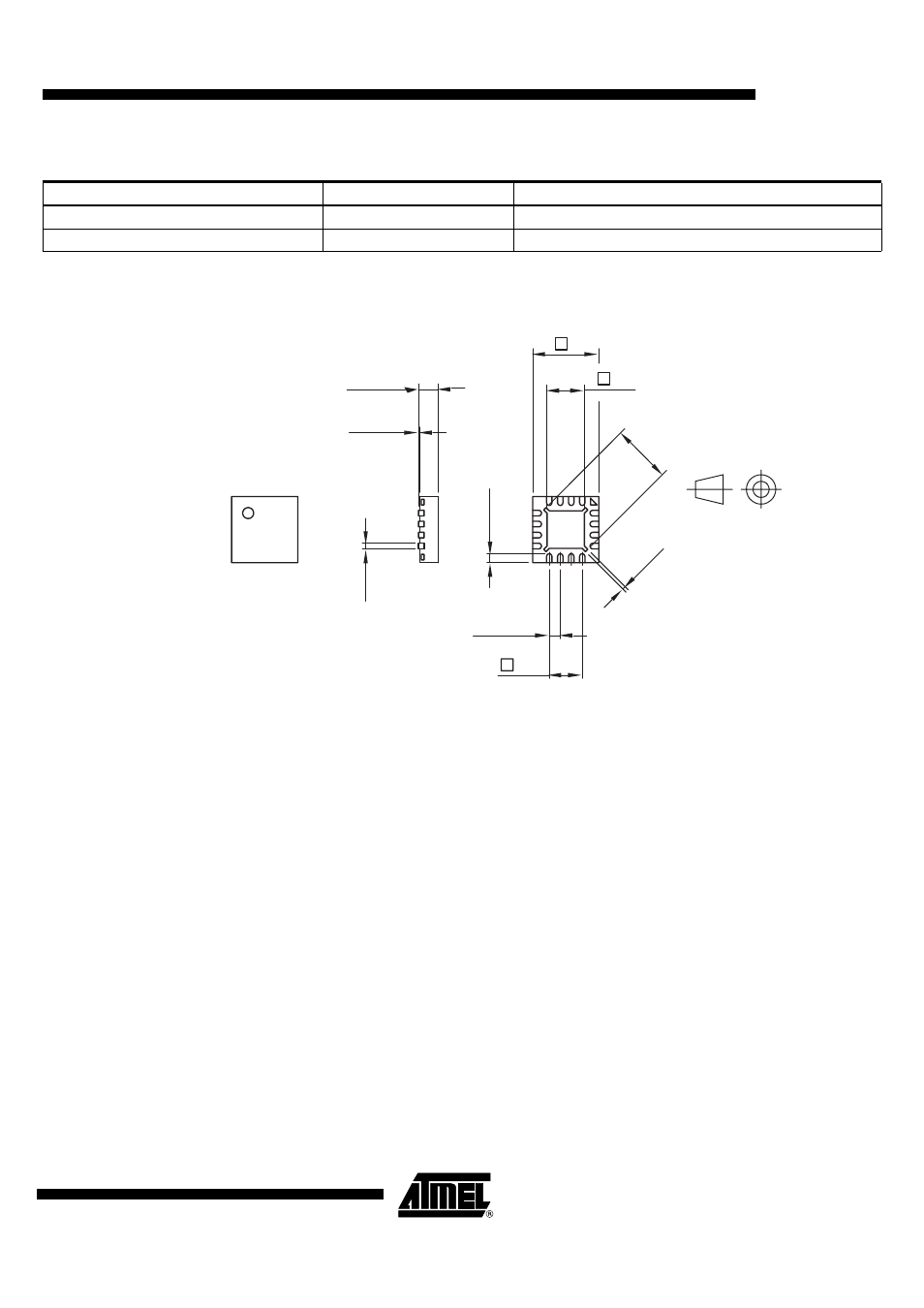

Package: QFN 16 - 3x3
Exposed pad 1.7x1.7
(acc. JEDEC OUTLINE No. MO-220)
Drawing-No.: 6.543-5115.01-4
Issue: 1; 07.03.05
