11 ethernet, Digital recorder, 1 ethernet connection to a pc – Videoswitch Vi200 User Manual
Page 41: 2 ethernet connection to a lan network, 3 ethernet connection to an adsl router
Digital Recorder
35
11 Ethernet

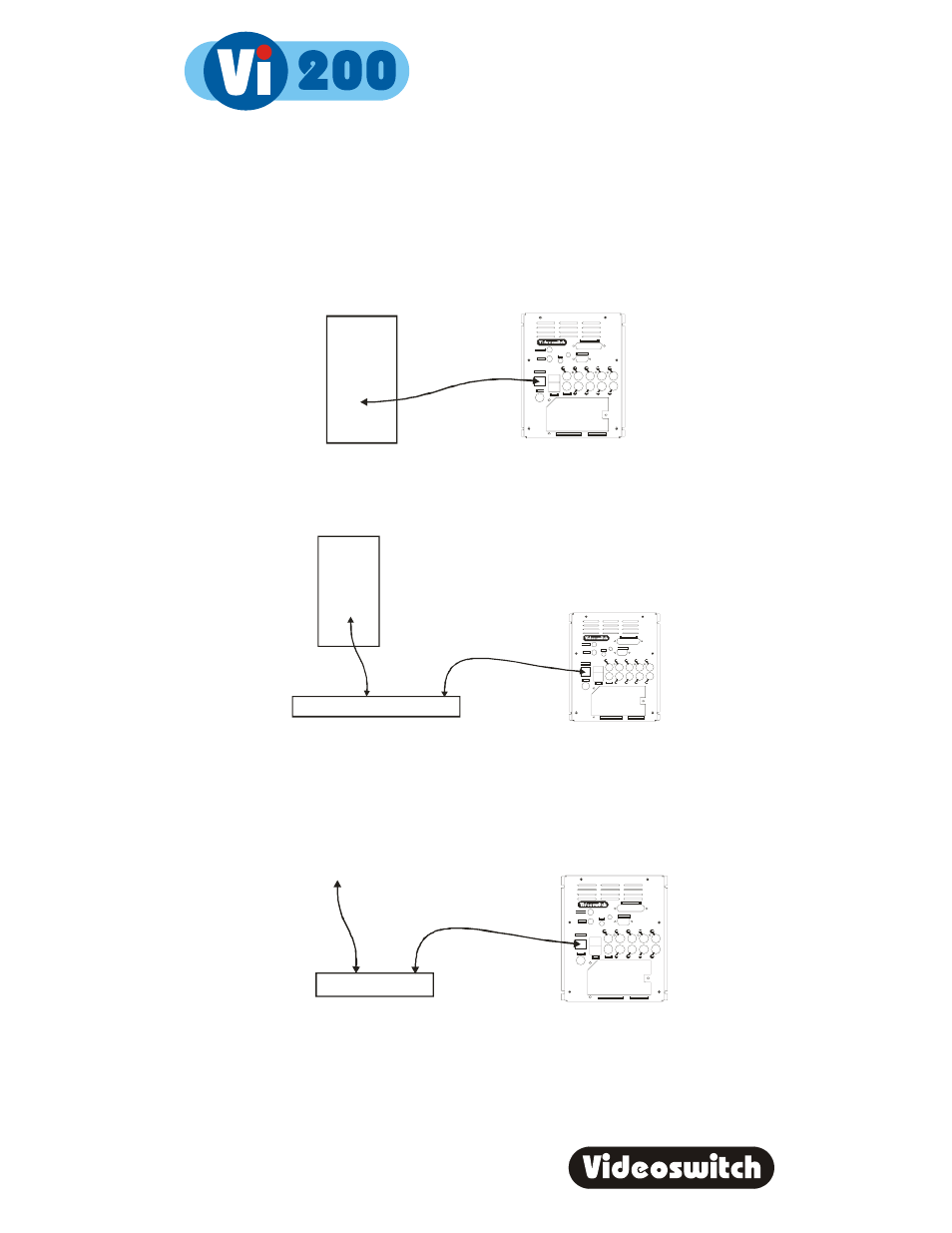

11.1 Ethernet connection to a PC
Digital
Recorder
Vi200
PC
CAT5
CROSS-OVER
CABLE
11.2 Ethernet connection to a LAN network
Digital
Recorder
Vi200
PC
ETHERNET HUB
OR
SWITCH
CAT5
CABLE
11.3 Ethernet connection to an ADSL router
Digital
Recorder
Vi200
ADSL ENABLED
PHONE LINE
ADSL ROUTER
WITH
BUILT-IN HUB
CAT5
CABLE
