TAIL SECTION

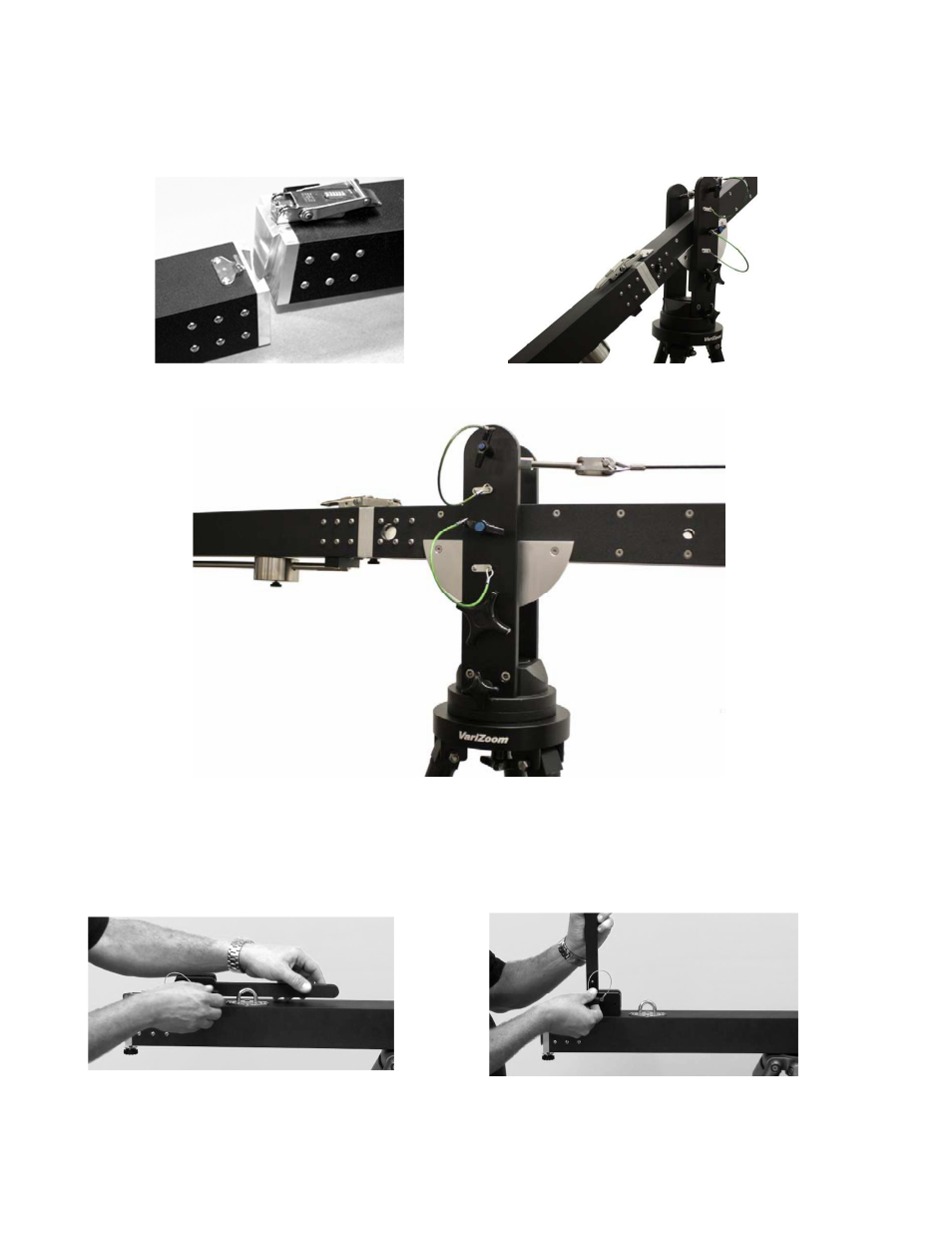

Attach the Tail section to the rear of the pivot section. Loosen the dovetail lock screw just enough to
allow the two sections to engage, tighten lock screw, and engage the latch.
CABLE INSTRUCTIONS
There are various cables for use in the SnapCrane’s different modes. For compact & mid-size
modes, you’ll only use the black cables (skip to Camera Leveling Cables). For the SnapCrane-12
you’ll also need to use the Red ‘Ext Cable 1’ – see below:
Pull the pin out from the cable guide baseblock. Lift the cable guide and insert the pin to secure.
Grab “Ext. Cable 1” and Clip the end with turnbuckle to the latch point at the rear of the tail section.
