45 U104613-03
Read all instructions before installing or using this appliance.
Installation Instructions
Save these instructions for future reference.

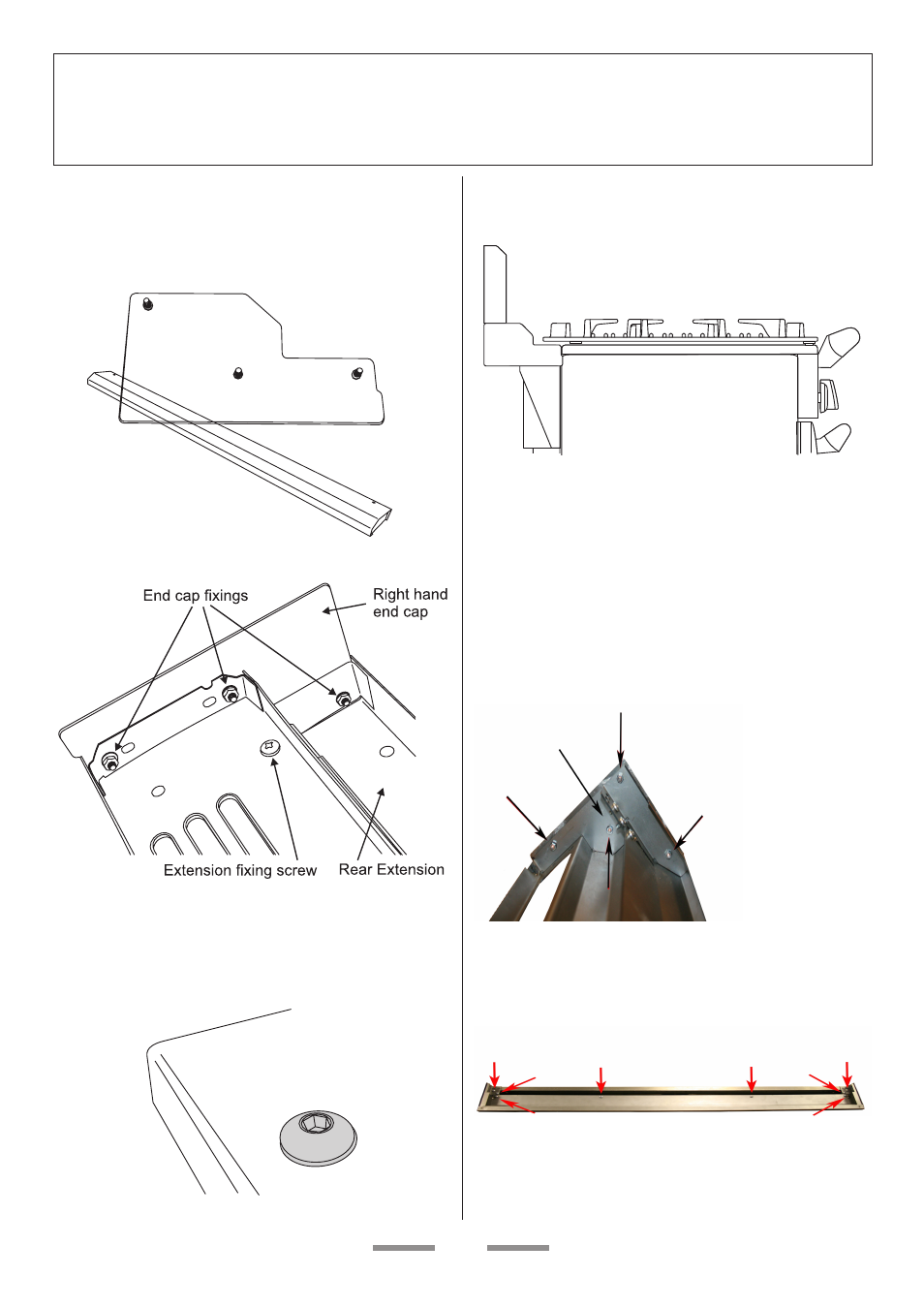

Fitting the enamel rear spacer
Rear spacer.
Fix the splash to the flue grille with the two screws
from below and then fit the two end caps.
End cap
They are held in place by three fixing nuts on the
inside face.
Refit the complete assembly of the flue grille
rear extension and splash to the range using the
screws.
Remove the two fixing screws (3mm hexagonal
socket head) and nuts that pass through the top of
the rear flue grille.
Splashback Fitment for Stainless Steel
Variant
1) Remove and discard the nuts and bolts, which
hold the flue panel and extension panel together.
2) Remove the M5 Taptight screws from the rear
of the extension panel, position the splash back to
the upper rear edge of the extension panel, align the
fixing holes and secure with eight of the M5 screws.
3) Locate and fit the right hand end cap to the
assembly and secure with the four M4 nuts provided,
repeat this procedure to the left hand end.
4) Carefully locate and position the flue panel into
the assembly and secure with four M5 screws.
5) Position the completed assembly on the three
location brackets which are already fitted
