0040504001 2010 Page 9
Operating and installation instructions
Pneumatic actuators - DP34T / DP34Tri

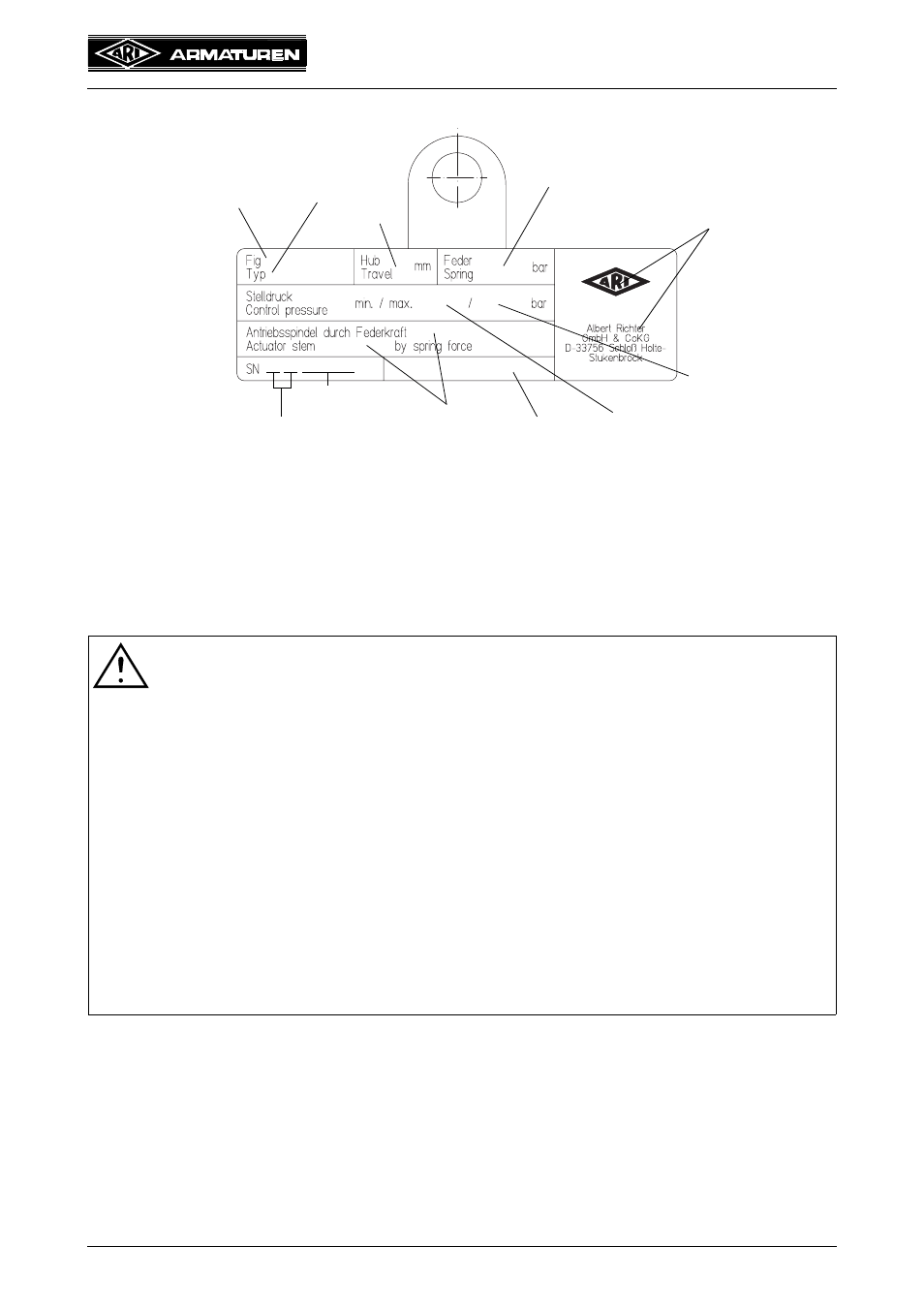

4.5 Marking
5.0 Installation
5.1 General notes on installation
The following points should be taken into account besides the general principles governing
installation work:
5.2 Requirements at the place of installation
The place of installation should be easily accessible and provide ample space for maintenance
and removing the actuator. The valve should preferably installed vertically with the actuator at
the top. Inclined or horizontal installation without supports is permissible only with light actuators.
For this installation position, the two distance columns (or joke) have to be above each other in
the vertical plane.
The actuator can be employed within a temperature range with the min. of - 40 °C and the max.
of + 100 °C. By minus temperatures, attention must be given that the control air is dry, and by
high temperatures, if possible, that insulation against heat is provided for.
Fig. 7
- Address of manufacturer: refer to item 11.0 Warranty / Guarantee
ATTENTION !
- Observe the information provided in the operating manual of the applicable valve.
- Observe the information provided in the operating manuals of all components
(for ex. position adjuster, filter reduction station, interlocking relay ...).
- Valve (all included) with traverse.
- Observe the applicable current driving power and the provided line length of the
chosen line cross section.
- The actuator unit’s technical data must be in agreement with the requirements
for operation.
- The control air must be in accordance with the instructions given on the
nameplates of the actuator unit.
- The air quality should be in accordance with DIN IEC 60654-2.
- The actuator unit must be provided in full, with distance columns and coupling
parts, for the extension on the applicable valve.
- Personnel with knowledge of the rules and regulations is required for the
construction of the compressed air system.
Manufacturer
Mode of
Travel
Figure-Number Type
min. necessary
operation operating pressure
Costumors
specification
Serial-No.
Year of manufacture clear speach
(1. and 2. position)
max. permissible
operating pressure
Operating signal
