Page 5: 2 power adapter installation
5
2. Setting Up RocketStor SMART RAID

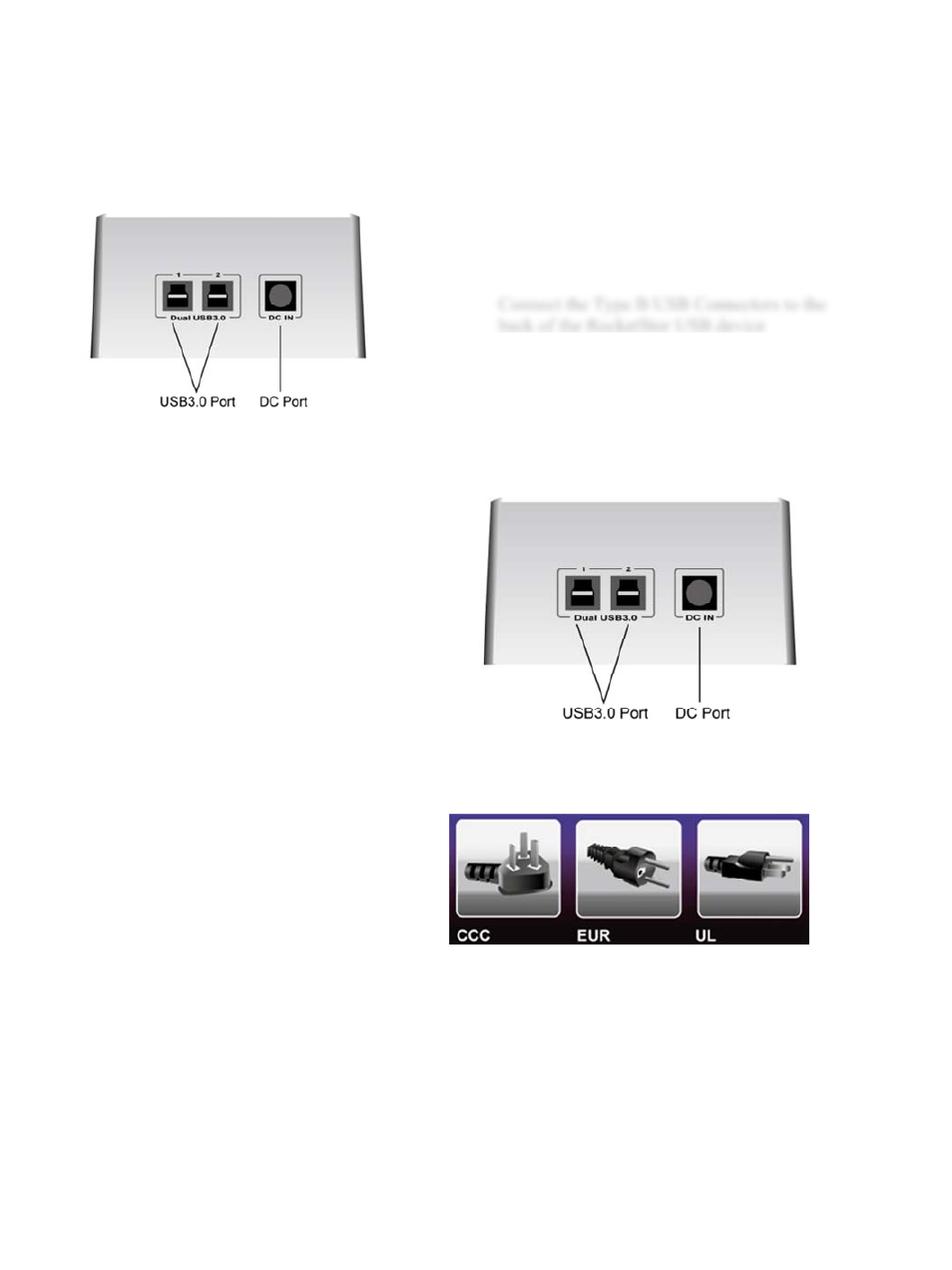

2.1 Connecting USB cables
2.2 Power Adapter Installation
Installing the DC Power Plug:
Connect the power adapter to the DC Port found
on the
back of the RocketStor SMART Backup device.
Installing the AC Power cord:
Connect the AC Power cord to the Power Adapter and connect the AC Power Plug to the Power Jack.
CCC is for Asia
EUR is for Europe
UL is for the United States
Connect the Type B USB Connectors to the
back of the RocketStor USB device
