3 – Hardware Installation

Note: Make sure the system is powered-off before installing the RocketRAID host

adapter.

The RocketRAID 264x include both standard and low-profile brackets. It may be

necessary to attach the low-profile bracket in place of the standard bracket, depend-

ing upon the chassis design. Open the system chassis and locate an unused PCI-

Express slot.

1. Remove the PCI slot/bracket cover.

2.

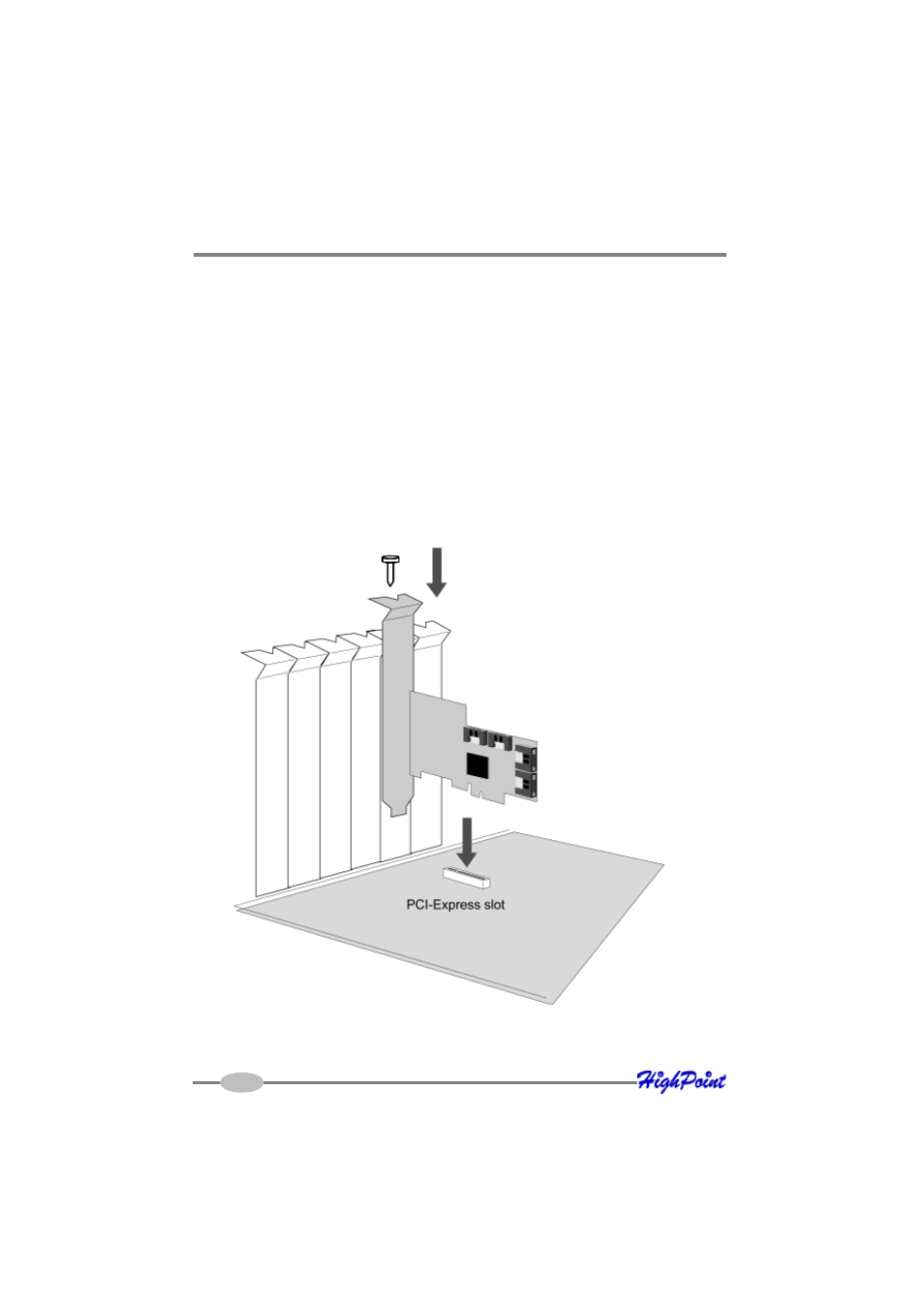

Gently insert the RocketRAID card into the PCI-Express slot, and secure the

bracket to the system chassis.
