Congratulations

1 0

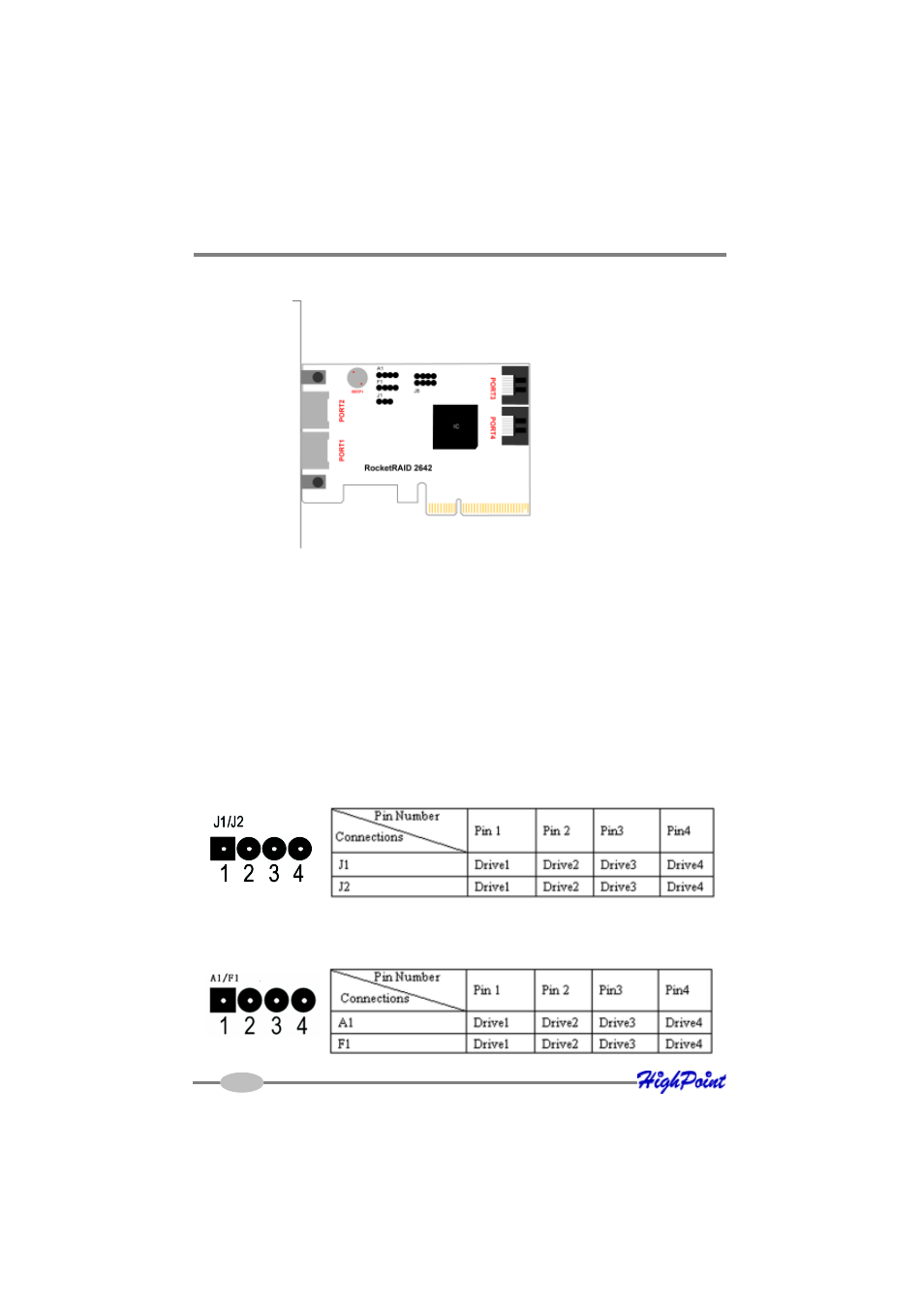

Port1- Port4

Port1,Port2 represent the RocketRAID 2642’s 2 External SAS channels.

Port3,Port4 represent the RocketRAID 2642’s 2 Internal SAS channels .

2 – LED Connections

LED connectors (Drive-activity/Drive-failure): LED support is discussed in greater

detail in the LED Connection section. The RocketRAID 264x host adapter has 2 LED

connectors that are used to indicate the activity and failure status of hard drives

attached to the card’s 4 SATA/SAS channels.

RocketRAID 2642

J1, J2 (RR2640X4 and RR2640X1)

J1 provides LED support for Drive Activity, while J1 supports Drive Failure.

A1, F1 (RR2642)

A1 provides LED support for Drive Activity, while F1 supports Drive Failure.
