Figure 22, Battery connector, Figure 23 – Vaisala RS92-SGP User Manual
Page 34
User's Guide ______________________________________________________________________
32 __________________________________________________________________ M210295EN-H
2.
Take out the battery connector by gently pulling the wires.
0705-031

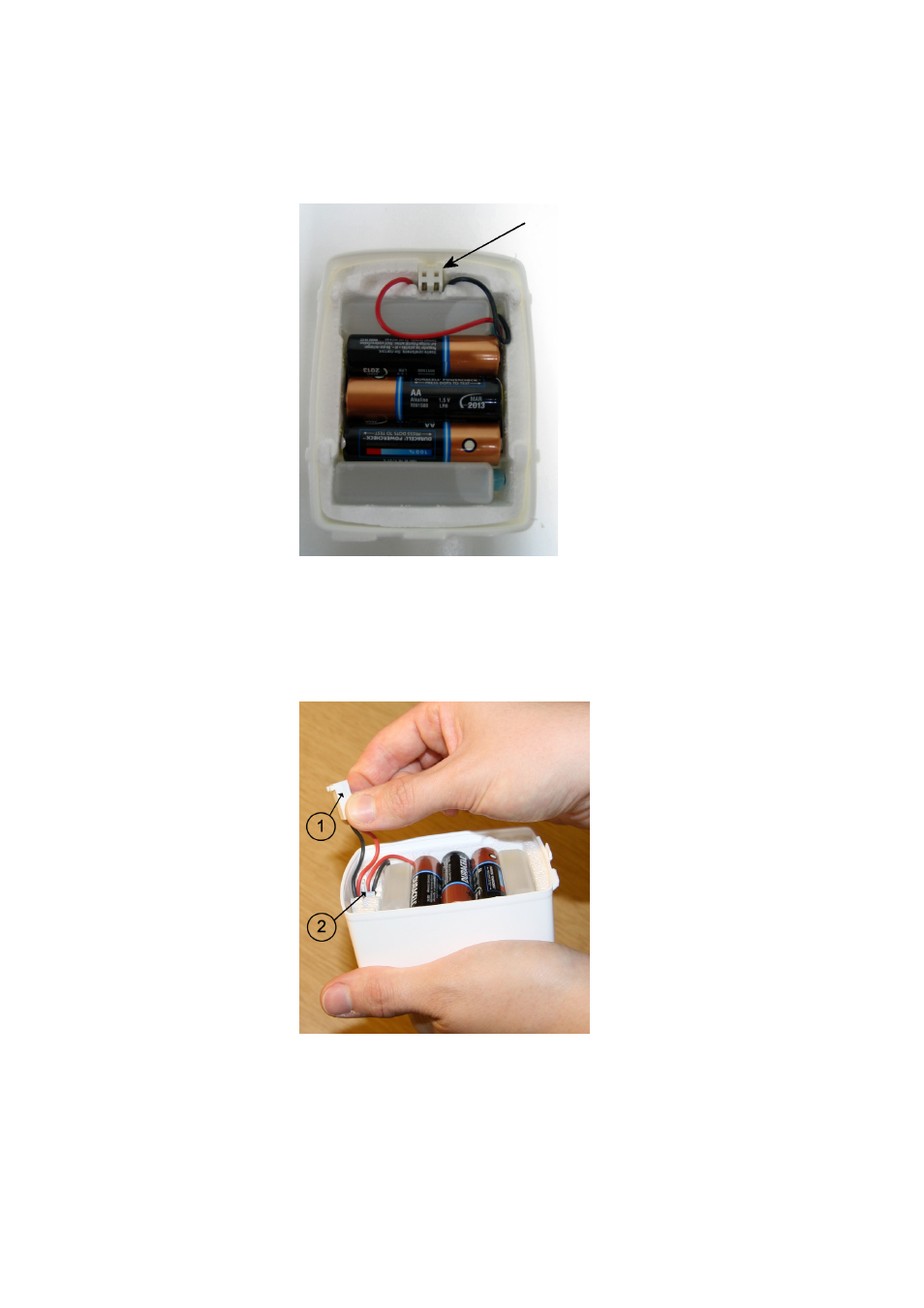

Figure 22
Battery Connector
3.
Take hold of the battery connector (number 1 in the following
figures) and fold the wires to the side as shown in
).
0810-017
Figure 23
Placing Battery Connector into Connector
Holder, Part 1
