Page 16
User's Guide ______________________________________________________________________
14 __________________________________________________________________ M210295EN-H
0705-015

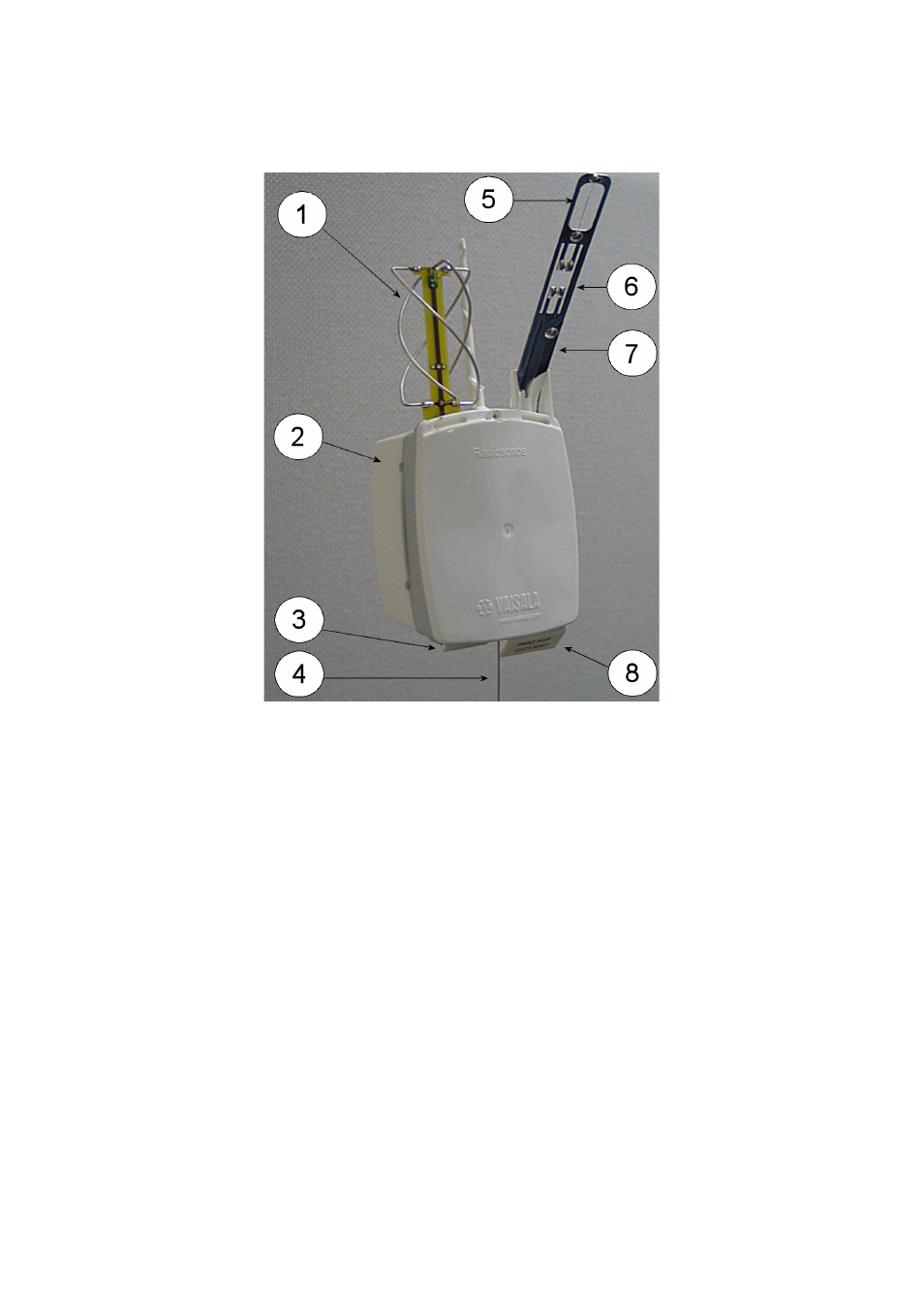

Figure 1
Vaisala Radiosonde RS92-SGP
Vaisala Radiosonde RS92-SGP can be used with Vaisala Sounding
Systems MW41, MW32, MW31 and MW21, and with MW11, MW12,
and MW15.
1
=
GPS antenna
2
=
Battery case
3
=
Additional sensor interface connector
4
=
Antenna
5
=
Temperature sensor
6
=
Humidity sensors
7
=
Sensor boom
8
=
GC25 interface
