Chapter 3 ________________________________________________________________ Operation
VAISALA_______________________________________________________________________ 31
2.
Make sure that the hook comes out the other side as shown in
. The unwinder is now attached firmly to the
balloon.
0705-042

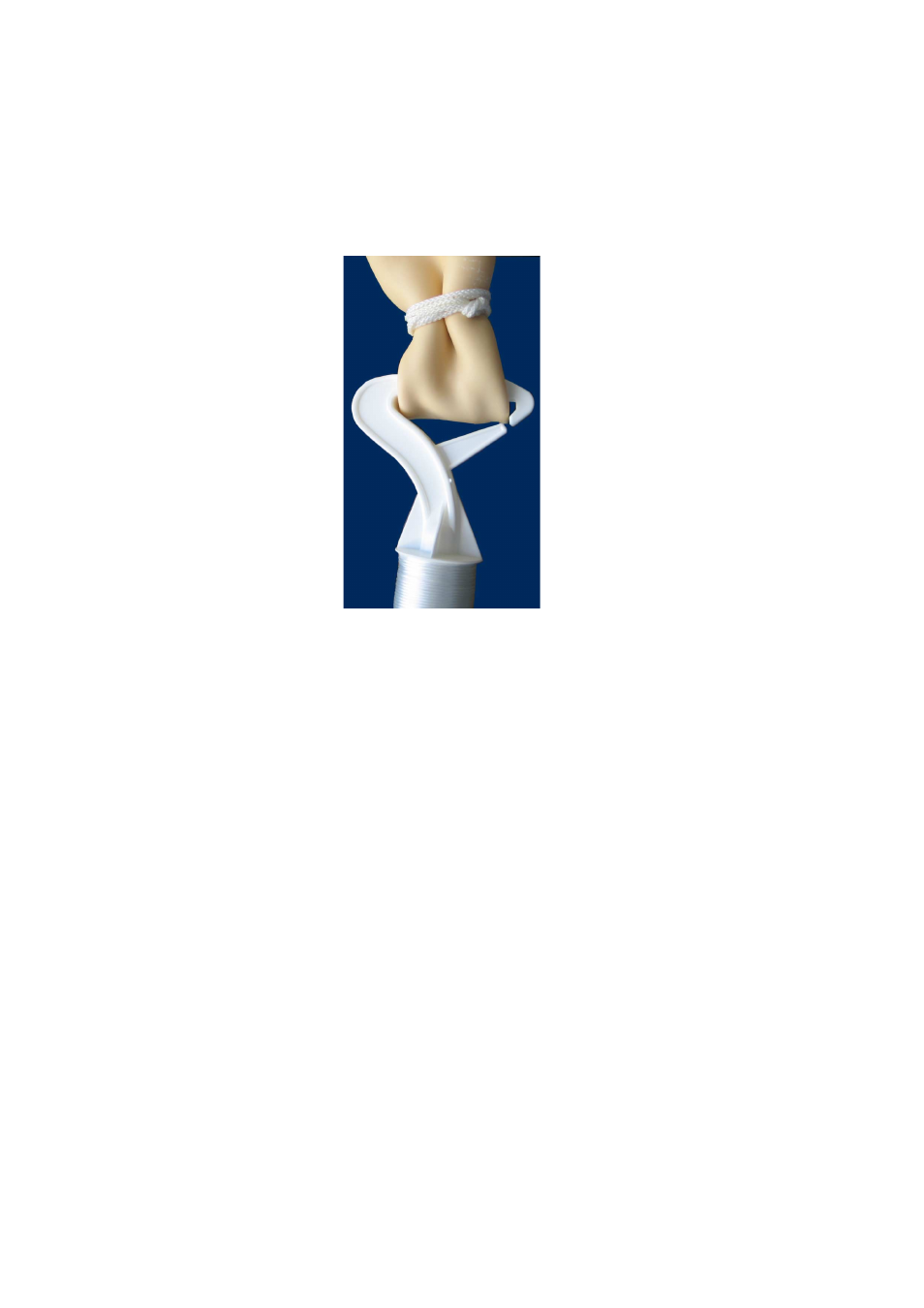

Figure 21
Attaching the Unwinder to the Balloon
If you use optional sounding accessories, follow these instructions to
attach the unwinder.
Totex Parachute
The Totex parachute 5710-5 has an elastic ribbon loop below the
spreader. Attach the unwinder to the loop by pushing the hook out the
other side in the same fashion as with the folded balloon neck (see
Attaching the Unwinder to the Balloon on page 31
Radar Reflector
There is a rubber plate attached to the radar reflector. Attach the
unwinder to this plate.
Non-Totex Parachute
There is a hanger board tied to the parachute. Attach the unwinder to the
bottom of the hanger board.
