Chapter 3 ________________________________________________________________ Installation
VAISALA_________________________________________________________________________ 9
CHAPTER 3
INSTALLATION
Mounting
Due to the compact design of the PTB210, all you need to do is to
mount the instrument, and to connect the wires. Use one of the
following three mounting options.
- Remove the pressure fitting, and place the barometer on a desired
structure. Then, fix it with the slot headed screws, the O-ring
sealing the attachment (A).
- Fix the supplied attachment plate to a desired place with a screw by
using the hole on the vertical part of the plate. Then, attach the
barometer on the plate with the screws supplied (B).
- The PTB210 can also be placed to a standard rail (DIN 35) by
using the attachment plate and clip (B). Fasten the clip and
barometer to the plate with the screws supplied. Finally, attach the
clip to a suitable rail.

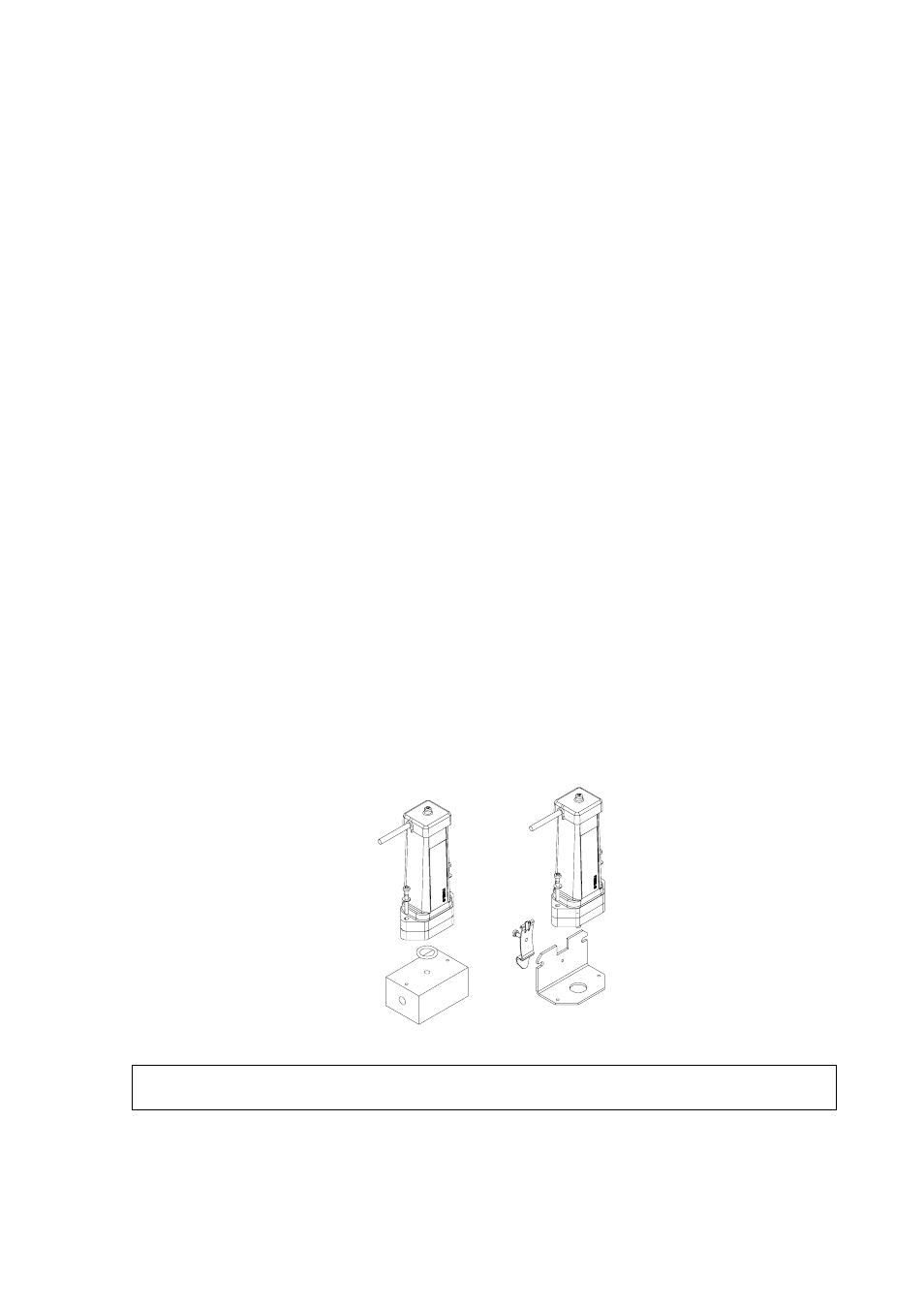

Figure 3 Different Mounting Options of the PTB210
NOTE Always place the barometer so that the pressure fitting is downwards.
A B
