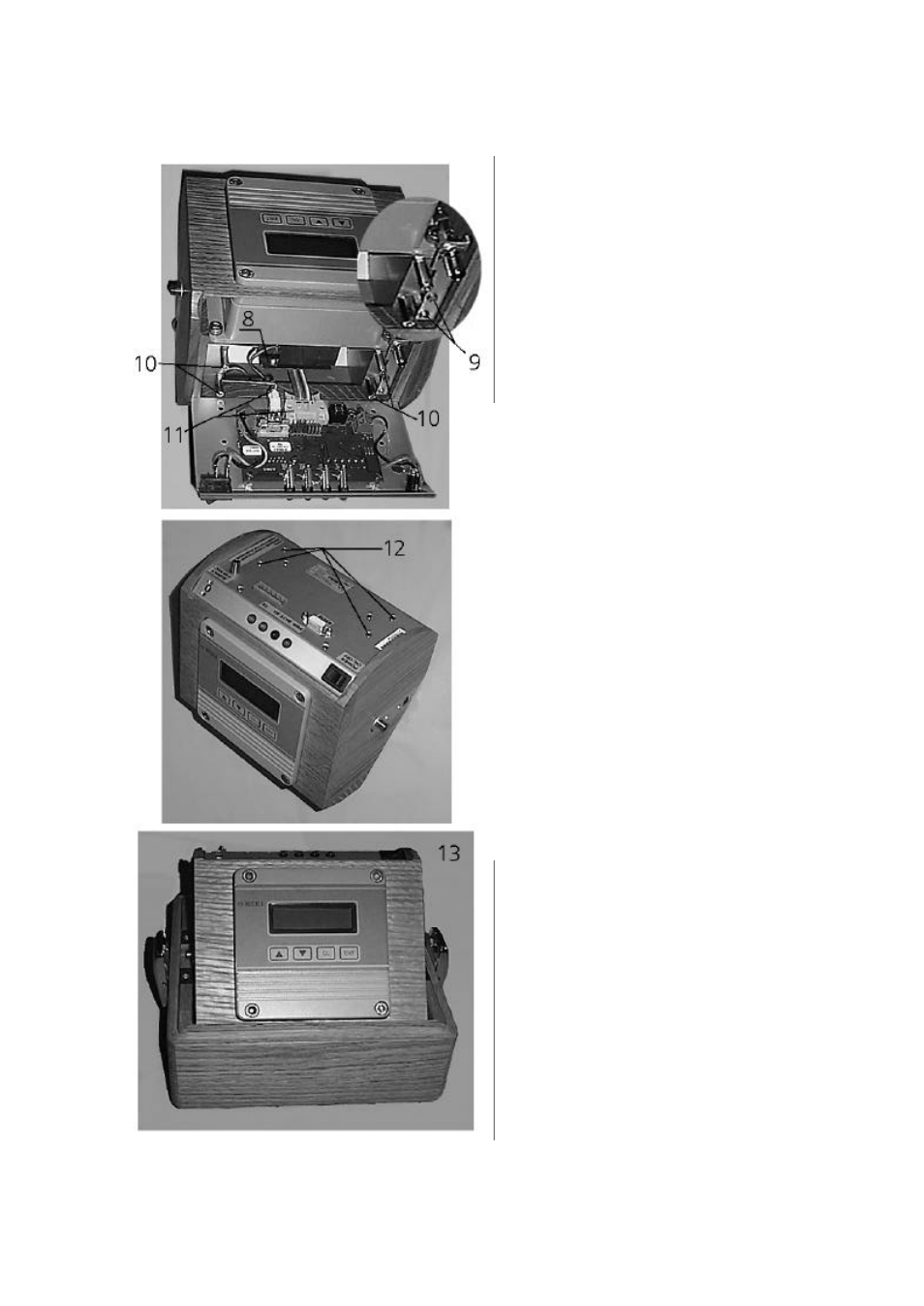

8. Insert the battery into its
covering. Place the conducting
wire end to left-hand side.
9. Attach the spacers (2 pcs
M3x12). Fix the support bar of
the pressure port to the
spacers.
10. Attach the M3x18 spacers (4
pcs).
11. Connect the flat cable and the
battery conducting wires to the
electronics board.
12. Fasten the back plate by using
the M3x18 spacers and M3x5
screws.
13. Place the tilting frame back
into the case. The barometer is
now ready for use.
