Installation – Vaisala RDP100 User Manual
Page 6
Installation
Required tools:
l
Medium size crosshead screwdriver (Pozidriv).
l
Small slotted screwdriver for screw terminals and DIP switches.
l
Drilling and cutting tools as required by the wall material.
l
Tools for cutting and stripping wires.
1.

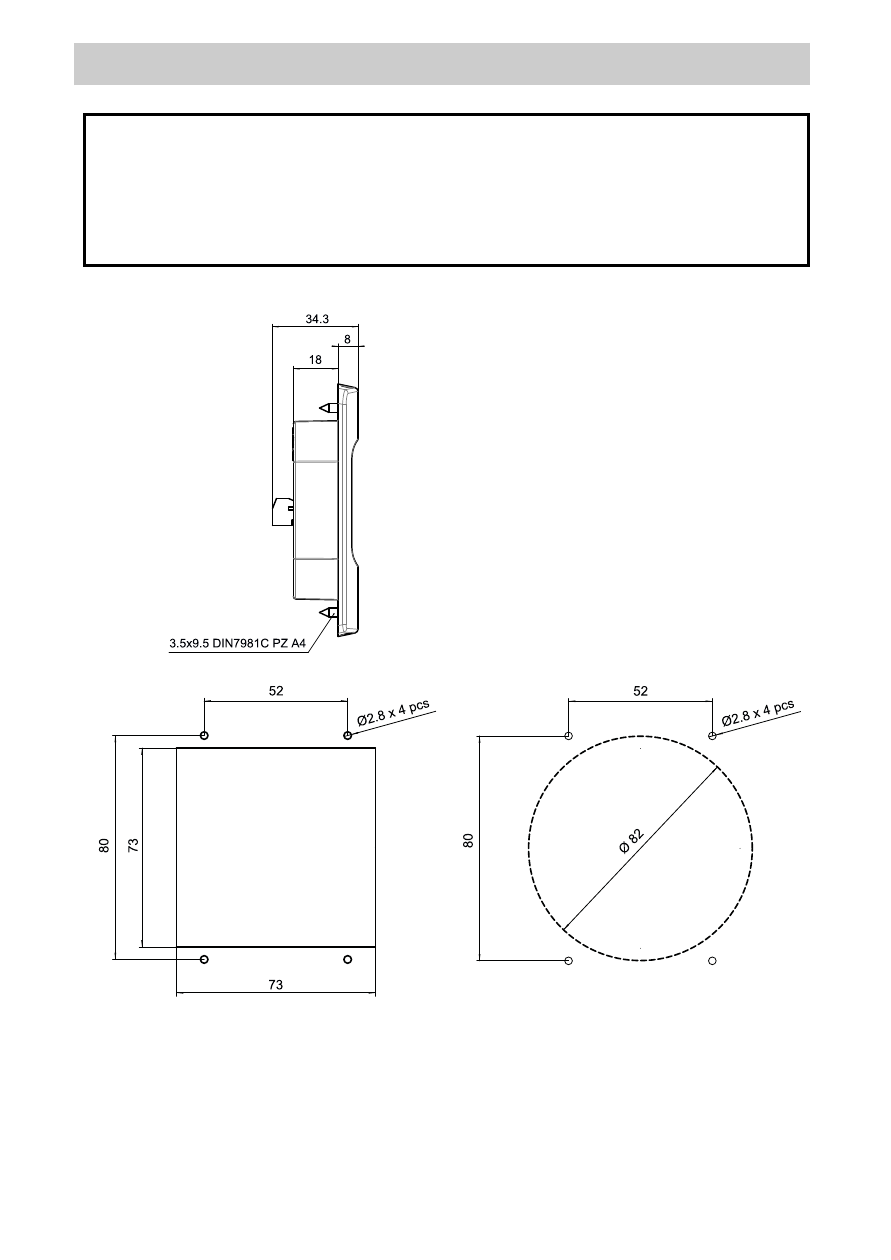

Prepare the mounting hole for
attaching the housing. You can
use a Ø82 mm round hole, or a
73 mm square hole.
2.
If required by the wall material,
drill Ø2.8 mm pilot holes for the
four attachment screws.
3.
Check that the housing fits in
the installation hole, and that
there is sufficient clearance
behind the hole.
4
