storage capacities
table 2
model
U.S. Gallons liters
ASmE Standard ASmE Standard
SuF-130-300 130 119.9 492 453.8
SuF-130-400 130 119.9 492 453.8
SuF-130-500 130 119.9 492 453.8
figure 6
These designs comply with the current edition of the American National Standard for Gas Water Heaters, Volume III, ANSI Z21.10.3
/ CSA 4.3 as an automatic circulating tank water heater, and automatic storage water heaters.
rough in dimensions
gas line connection siZe
table 1
moDEl SERIES NATuRAl gAS PRoPANE gAS
SuF 130 300 100/101 1 1/4” NPT 1 1/4” NPT
SuF 130 400 101/104 1 1/4” NPT 1 1/4” NPT
SuF 130 500 101/104 1 1/2” NPT 1 1/4” NPT
This table shows connections sizes only. Depending on the installed equivalent length,
and/or the number of appliances connected, the supply gas line size may have to be
increased beyond the minimum required sizes - see Gas Line Sizing on page 37.
table 3
u. s. gallons/hr & liters/hr at temperature rise indicated
model
Type of
gas
Input °F 20°F 30°F 40°F 50°F 60°F 70°F 80°F 90°F 100°F 110°F 120°F 130°F 140°F
btu/hr kW °C 11°C 17°C 22°C 28°C 33°C 39°C 44°C 50°C 56°C 61°C 67°C 72°C 78°C
SuF 130 300
Natural
300,000 88
gPH 1746 1164 873 699 582 499 436 388 349 318 291 269 250
Propane lPH 6610 4406 3304 2644 2203 1888 1652 1469 1322 1201 1102 1017 945
SuF 130 400
Natural
399,900 117
gPH 2328 1552 1164 931 776 665 582 517 466 423 388 359 332
Propane lPH 8813 5875 4406 3525 2938 2518 2203 1958 1763 1602 1469 1356 1259
SuF 130 500
Natural
499,900 146
gPH 2878 1919 1439 1151 959 822 720 640 576 523 480 443 411
Propane lPH 10894 7263 5447 4358 3631 3113 2724 2421 2179 1981 1816 1676 1556
recovery capacities are based on 96% thermal efficiency for SUF 130 300, SUF 130 400 and 95% thermal efficiency for SUF 130 500.

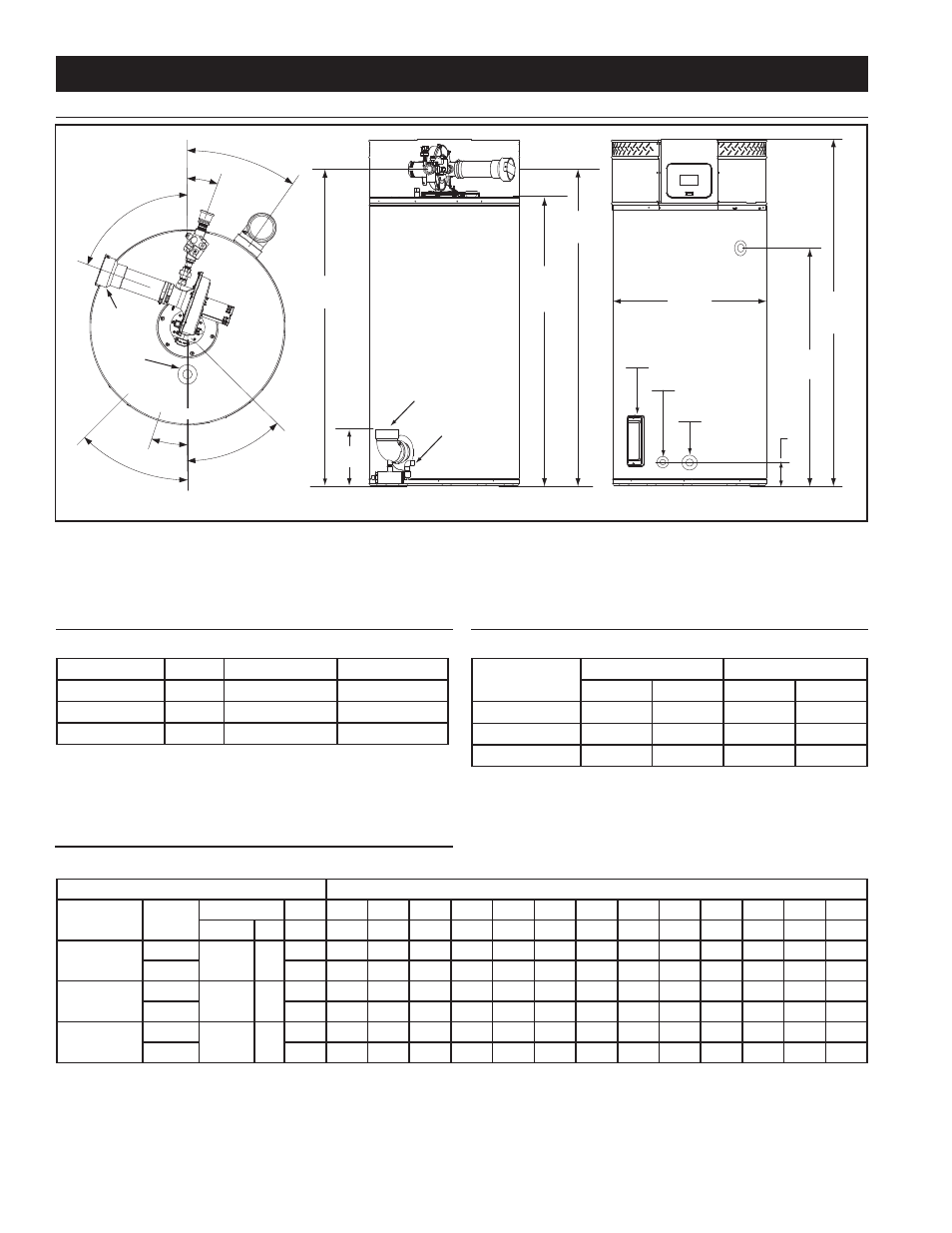

installation considerations
35°
20°
70°
18°
45°
45°
CL
EA
NO
UT
T &
P
VA
LV
E
G
AS
*1 1/2” NPT
WATER
OUTLET
FRONT
TOP
DRAIN V
AL
VE
INTAKE AIR
4 INCH PVC
VENT
4 INCHPVC
FRONT BACK
CLEANOUT
T & P
3/4” NPT
DRAIN
1 1/2” NPT
WATER INLET
4” PVC
VENT CONNECTION
(exhaust elbow)
4” PVC
INTAKE AIR
CONNECTION
1 1/4” SUPPLY GAS
CONNECTION
33.12” (84.1 cm)
OUTSIDE
DIAMETER
4.86”
(12.34 cm)
50.77”
(129 cm)
75.50”
(191.8 cm)
69”
(175.3 cm)
69”
(175.3 cm)
12”
(30.5 cm)
* Center line of water outlet on top of the water heater is 7 inches from the front edge of the water heater.
WATER
OUTLET
HEIGHT
63 INCHES
(160 cm)
CONDENSATE
DRAIN CONNECTION
1/2 INCH PVC
recoVery capacities
