State Seamed Metal Roof - Manual (Page 3)

3

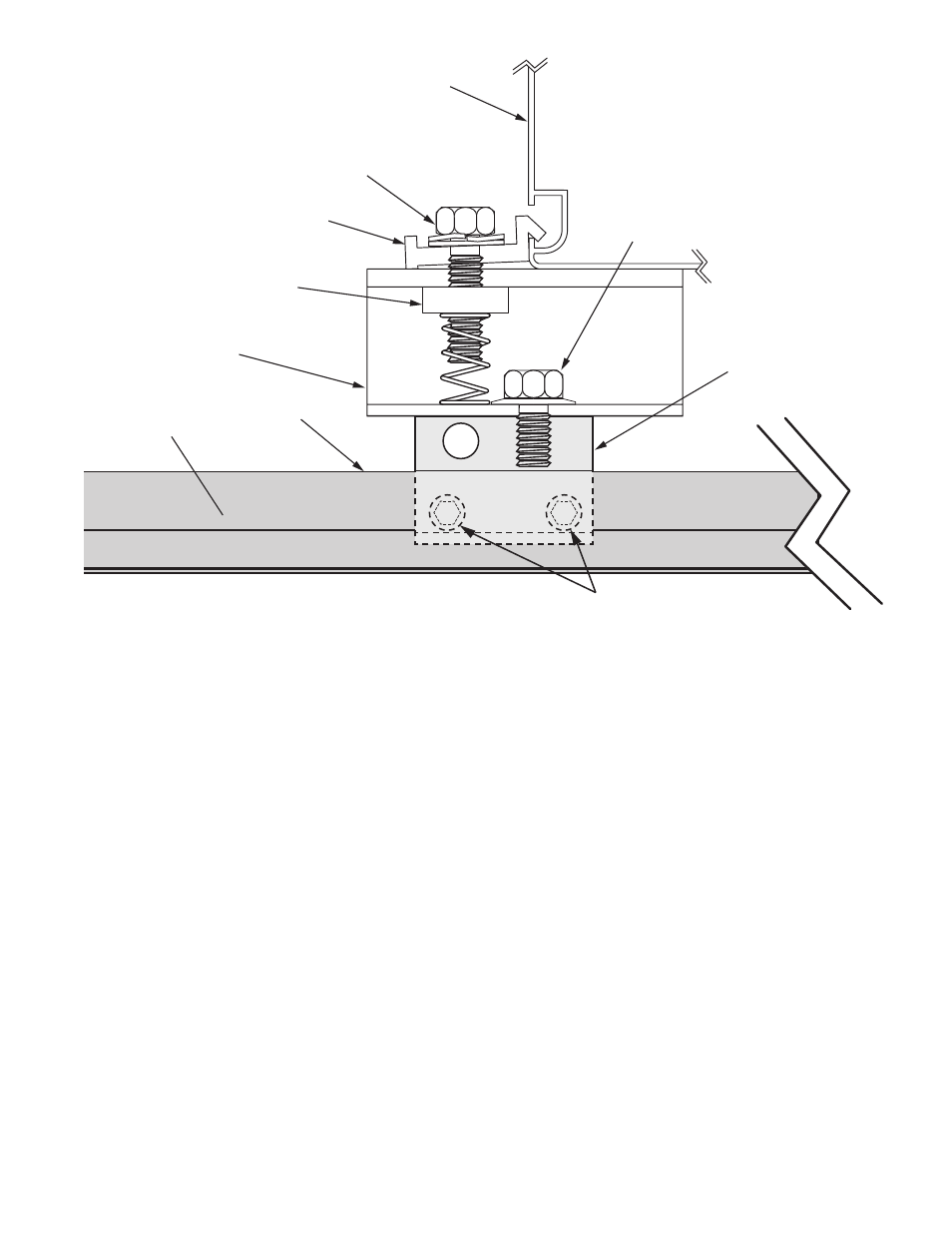

Figure 7.
SOLAR COLLECTOR
FRAME
MOUNTING CLIP
STAINLESS STEEL BOLT
LOCK WASHER
& FLAT WASHER
CHANNEL NUT with SPRING
(One Piece Part)
METAL
ROOF
MOUNTING
BRACKET
M10-1.25 BOLT
MOUNTING
CLAMP
METAL
ROOF
SEAM
MACHINE FOLDED SEAM
(FIGURE 6.) APPLICATION
SHOWN
SET SCREWS
