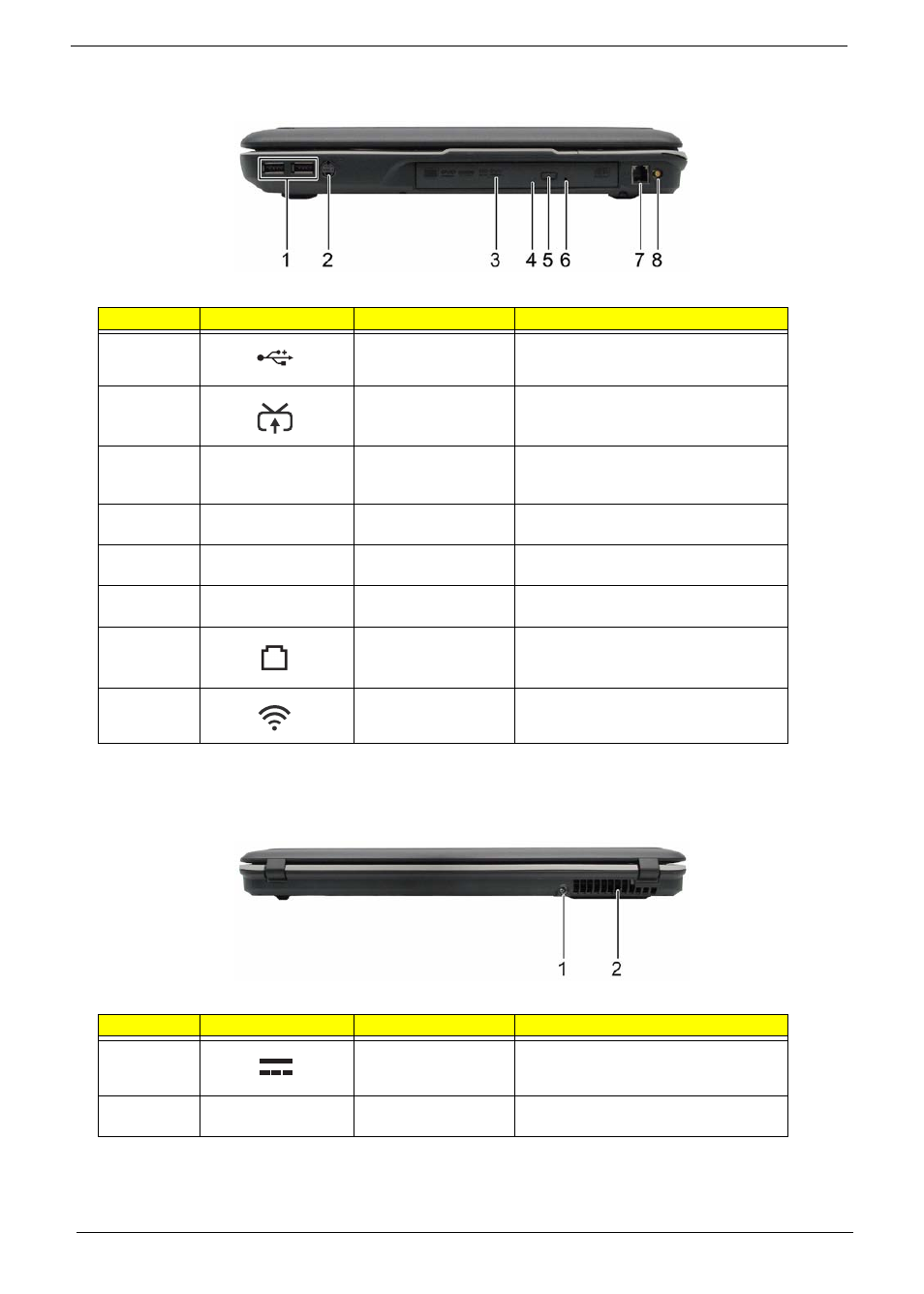

Right View
Rear view
# Icon Item Description
1 2 USB 2.0 ports Connect to USB 2.0 devices (e.g., USB
mouse, USB camera).
2 AV-in port Accepts input signals from audio/video
(AV) devices.
3 Optical drive Internal optical drive; accepts CDs or DVDs
(slot-load or tray-load depending on
model).
4 Optical disk access
indicator Lights up when the optical drive is active.
5 Optical drive eject
button Ejects the optical disk from the drive.
6 Emergency eject hole Ejects the optical drive tray when the
computer is turned off.
7 Modem (RJ-11) port Connects to a phone line.
8 RF-in port Accepts input signals from analog/digital
TV-tuner devices (for selected models).
# Icon Item Description
1 DC-in jack Connects to an AC adapter.
2 Ventilation slots Enable the computer to stay cool, even
after prolonged use.
