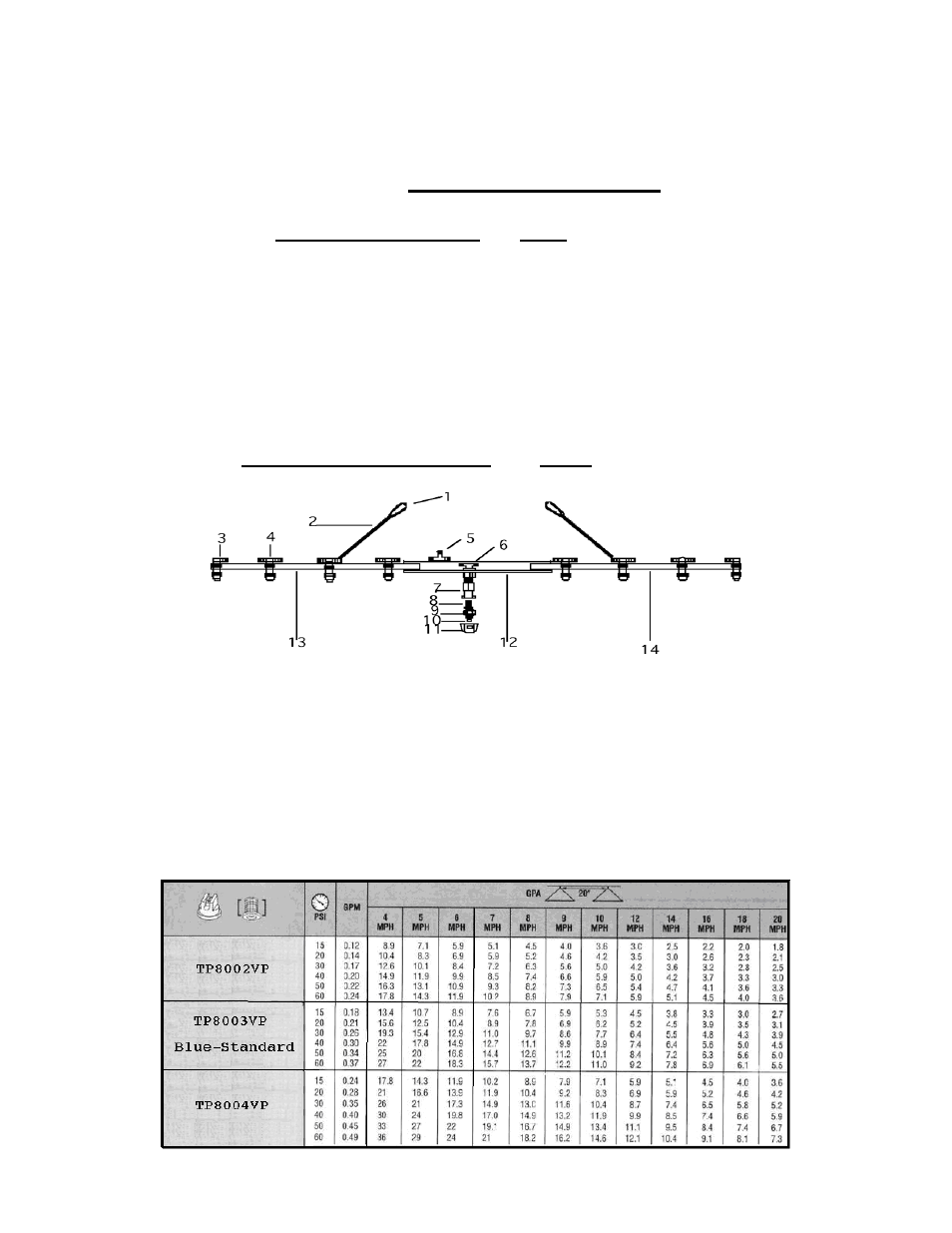

TEEJET SPRAY TIP CALIBRATION
BA4DSQ
All standard booms come w/ 8003VP poly tips.
The 4 Row booms have 9 nozzles.
Formula:
Example:
Take the GPM that you figured & look down the GPM chart to figure what pressure you need to run at
that desired speed.
*NOTE: If spraying liquid nitrogen you will need to multiply the conversion factor w/ the gpa, mph, &
nozzle spacing.
Conversion Factor:
Example:
GPM =
GPA x MPH x Nozzle Spacing.
5940
20GPA x 4MPH x 20 in.
5940
=
1600
5940
= .27gpm
28% Nitrogen - 10.65 lbs. per gal. - 1.13
32% Nitrogen - 11.00 lbs. per gal. - 1.15
20GPA x 4MPH x 20 in. x 1.13
5940
=
1808
5940
= .31gpm
1. Snap Link (SL14) 8. 50 Mesh Poly Strainer (8079-PP-5O)
2. Breakaway Spring (SP4-6) 9. EPDM Gasket (CP19438-EPR)
3. 18635-111-406 – 3/8” QJ Body – Elbow 10. 8003VP Tip (TP8003VP)
4. 18636-112-406 – 3/8” QJ Body – Tee 11. Quick Jet Slotted Cap (25612-2-NYR)
5. T38 N 12. Center Section
6. NTT38 N 13. Left Arm Boom Pipe – 6’ Long
7. QJT-NYB Quickjet adapter 14. Right Arm Boom Pipe – 6’ Long
15. Boom Clamp (QJ111SQ-1) Not Shown
