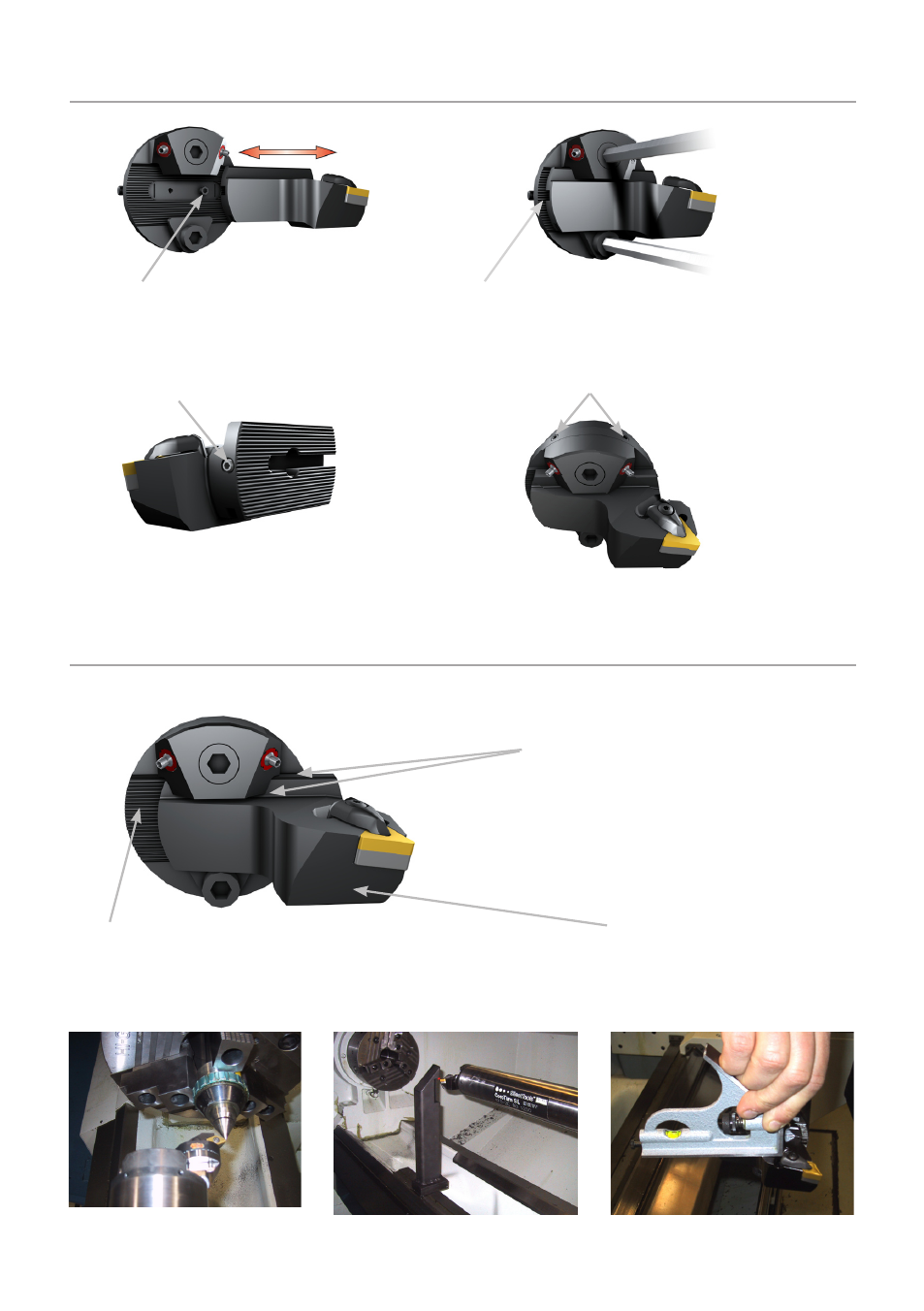

Mounting of CoroTurn SL quick change cutting unit
Stop screw for adjustment (right style)
f
1
adjustment screw
Max
f
1
dimension mark (right- style)
Coolant outlet Open/Close
30Nm
Center-height setting
Alternatively, use serrations for center hight setting
Flats for center hight setting
Flats for center hight setting
Center hight stick
Spirit level
Tailstock center
