Electrical connections

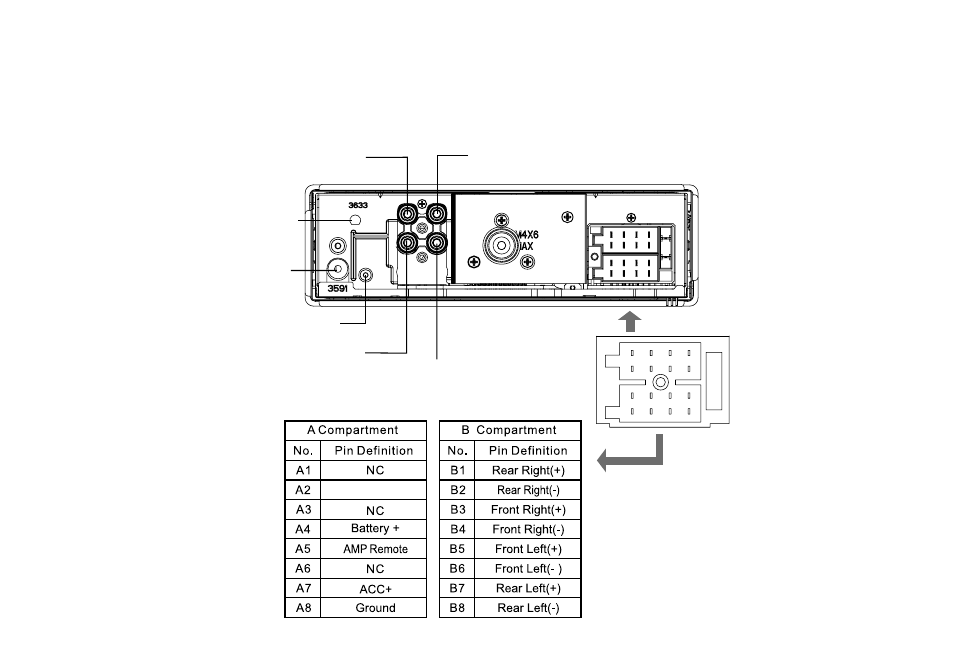

Wiring Diagram
FM/MW ANTENNA
Rear Right Line-out (Red)
SUB OUT
Front Right Line-out (Red)
Front Left Line-out (White)
A
B
1
3
5
7
2
4
6
8
1
3
5
7
2
4
6
8
DAB
ANTENNA
MICROPHONE
Rear Left Line-out (White)
SUB OUT
Telemute
ANTENNA
Rear Right Line-out (Red)
SUB OUT
Front Right Line-out(Red)
Front Left Line-out(White)
A
B
1
3
5
7
2
4
6
8
1
3
5
7
2
4
6
8
DAB
ANTENNA
Rear Left Line-out (White)
SUB OUT
Telemute
