Outback Power Systems IBR-2 - Manual

900-0130-01-00 Rev C 1
Integrated Battery Rack
Installation Instructions
Purpose
This document provides instructions for initial assembly and
installation of the OutBack Integrated Battery Rack (IBR).
Scope
This document applies to all models of the IBR. Figure 1,
the three-shelf IBR-3-48-175, depicts OutBack EnergyCell RE
batteries. Figure 2, the two-shelf IBR-2-48-175, depicts
OutBack EnergyCell GH batteries. If other batteries are
used, they must be 12 Vdc batteries which also meet the
following requirements:

AGM valve-regulated lead-acid recombinant type
 Maximum discharge 100 cc/hr per battery
 Maximum discharging temperature 160°F (60°C)
Parts Included
 Rack assembly
 Front protective shields
 Side protective shields
 Hardware for protective shields
 EnergyCell Battery Manual
 IBR Installation Instructions (this document)
Assembly
NOTE: If installed in the United States, all wiring methods
shall be in accordance with the National Electrical Code
(NFPA 70), Current Edition. If installed in Canada, all wiring
methods shall be in accordance with the Canadian Electrical
Code, C22.1, Current Edition.

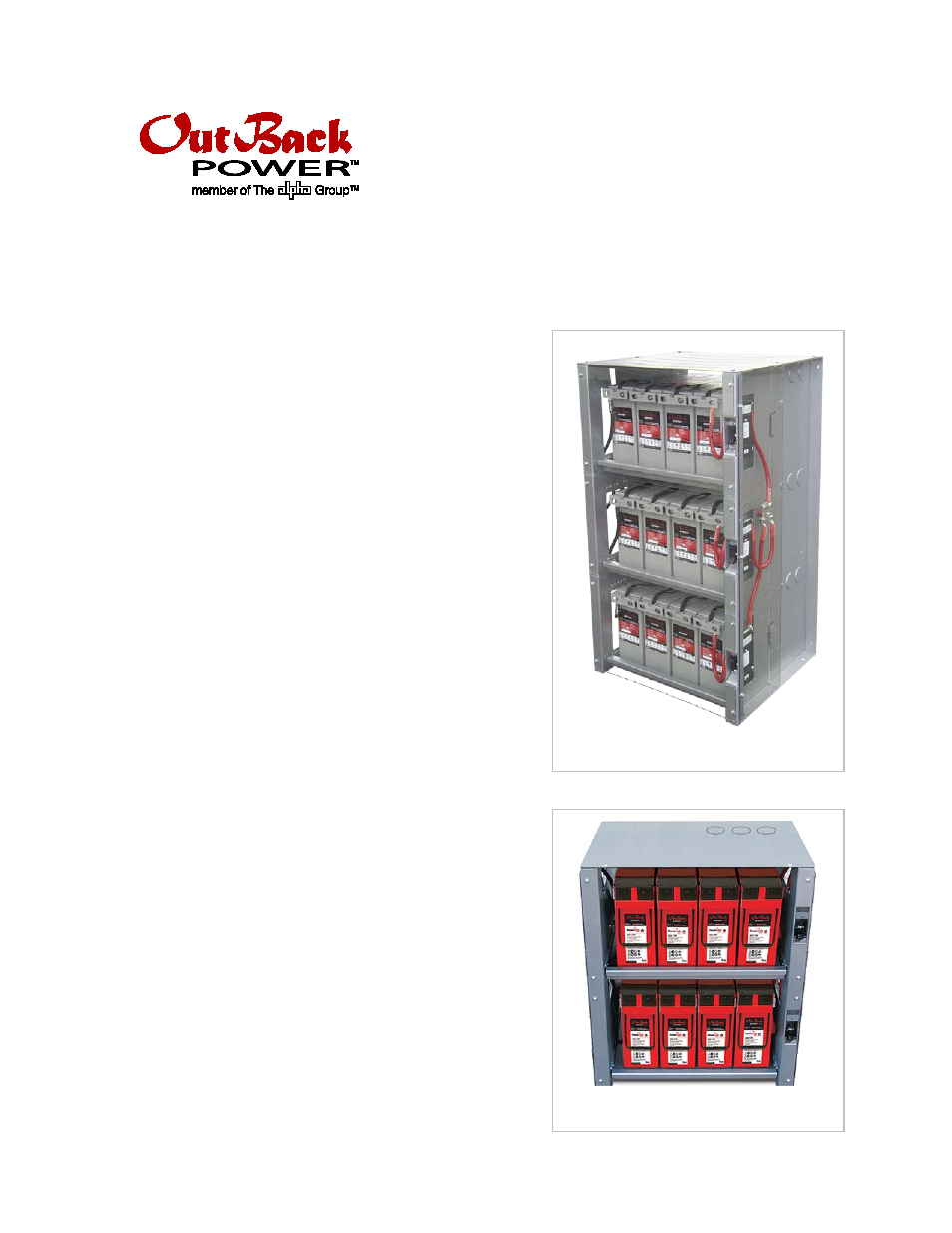

Figure 1 IBR-3-48-175
Figure 2 IBR-2-48-175
