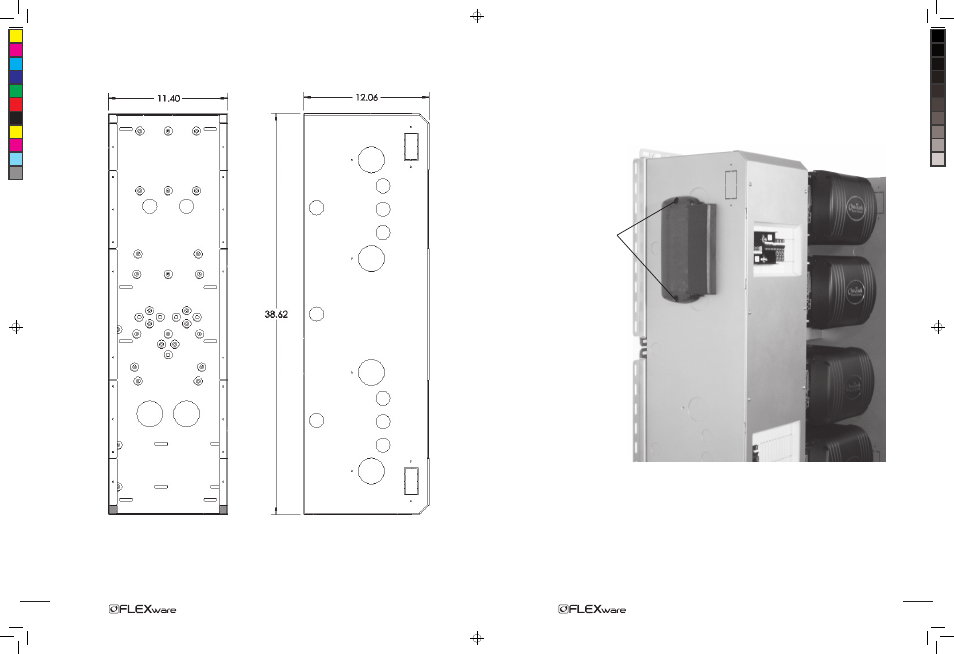

Figure 2: Front View Side View
Knockouts and Dimensions
Figure 14: OutBack HUB
Installing an OutBack HUB
An OutBack HUB allows the FX Series Inverter/Chargers, MX60 Charge Controllers, and MATE
to communicate with each other. It attaches (see arrows in Figure 14) to the outside of the
FW1000-AC (hardware included with the HUB).
HUB connection
