When installing the AC chassis and the DC chassis:
• Either chassis can be installed first, the order is not important.
• Only loosely install the eight screws securing each chassis. The screws will be tightened later.
To install the chassis:
• Hold each chassis up to its respective mounting holes on the FW-MP.
• Place the, M6 X 10mm machine screws through the chassis and into the holes shownin Figure 7
tightening only enough to keep the chassis in place.
AC side DC side

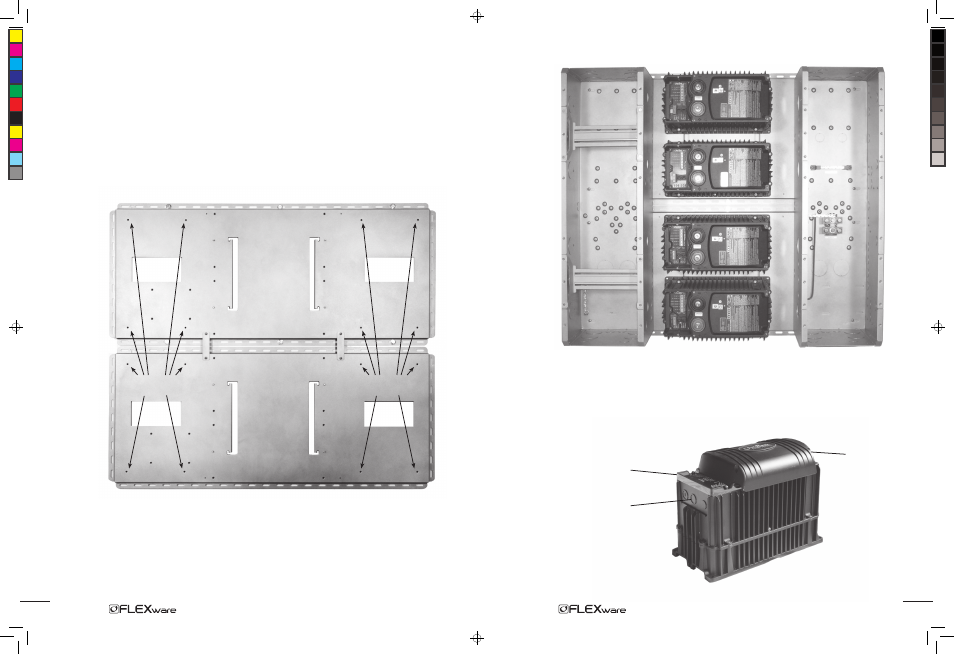

Figure 7: Chassis Mounting Holes
AC chassis
Mounting Holes
DC chassis
Mounting Holes
Figure 8: AC and DC Chassis mounted
With each chassis loosely mounted, the AC Conduit Adapter (ACA) and DC Conduit Adapter (DCA)
are installed on the FX.
• Remove the clear plastic AC cover and AC Conduit Plate from each FX.
Clear plastic AC cover
AC Conduit Plate
Figure 9: FX Series Inverter/Charger
DC Wiring
Cover (DCC)
