Page 5

4

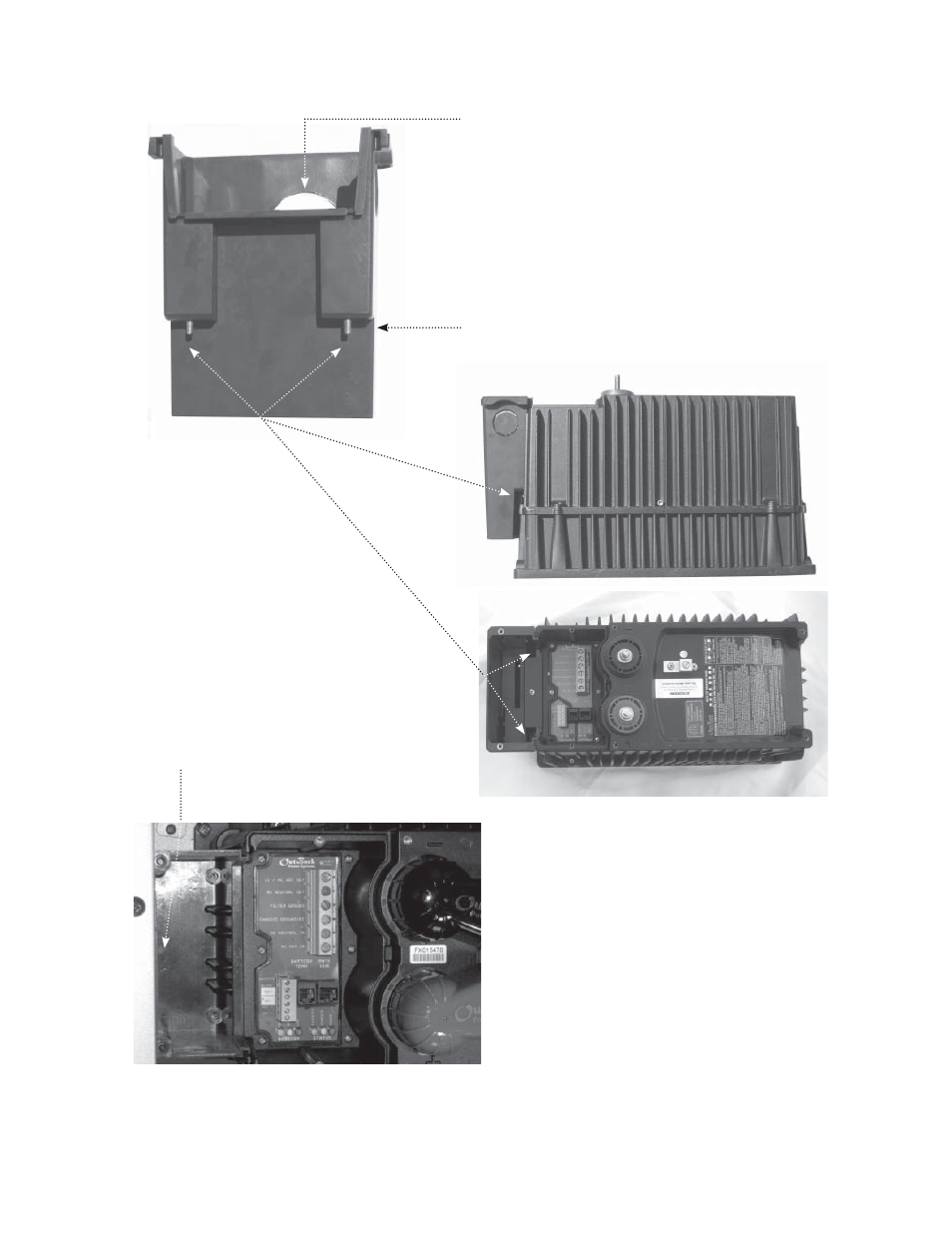

(7) The FW-ACA slides onto the FX in the
same location as the now removed AC
Conduit Plate and secures to the FX with its
own factory-supplied screws in the same
location as the removed M5 hex bolts.
Chosen knockout(s) should be removed
before installing the FW-ACA
Figure 3:
FW-ACA installed on an FX
(8) When an FW-ACA is installed in an
AC enclosure, insert a bushing (it is
not critical that this bushing line up
precisely with the FW-ACA); if fl exible
cable is used instead of an enclosure,
appropriate strain relief is required.
(6) Remove any AC wires from the FX AC
Wiring Block by loosening the slotted
screws. These wires will be installed through
the FW-ACA.
