Procedure – Outback Power Systems FLEXware ACA AC Conduit Adapter Users Guide User Manual
Page 4

3
PROCEDURE
Turn off the system’s DC, AC IN, and AC OUT breakers (if available, use BYPASS mode to power any
loads).
(1) Remove the DCC (secured
by four Phillips corner screws) or
Turbo cover
(2) Remove the DC battery
caps (under the DCC or Turbo
cover)
(3) Remove the AC Wiring
Compartment plastic
cover (secured with two
Phillips screws)
(5) Remove the
AC Conduit Plate,
which slides up
and out from the
FX
(4) Remove
these two
M5 hex bolts
from the FX

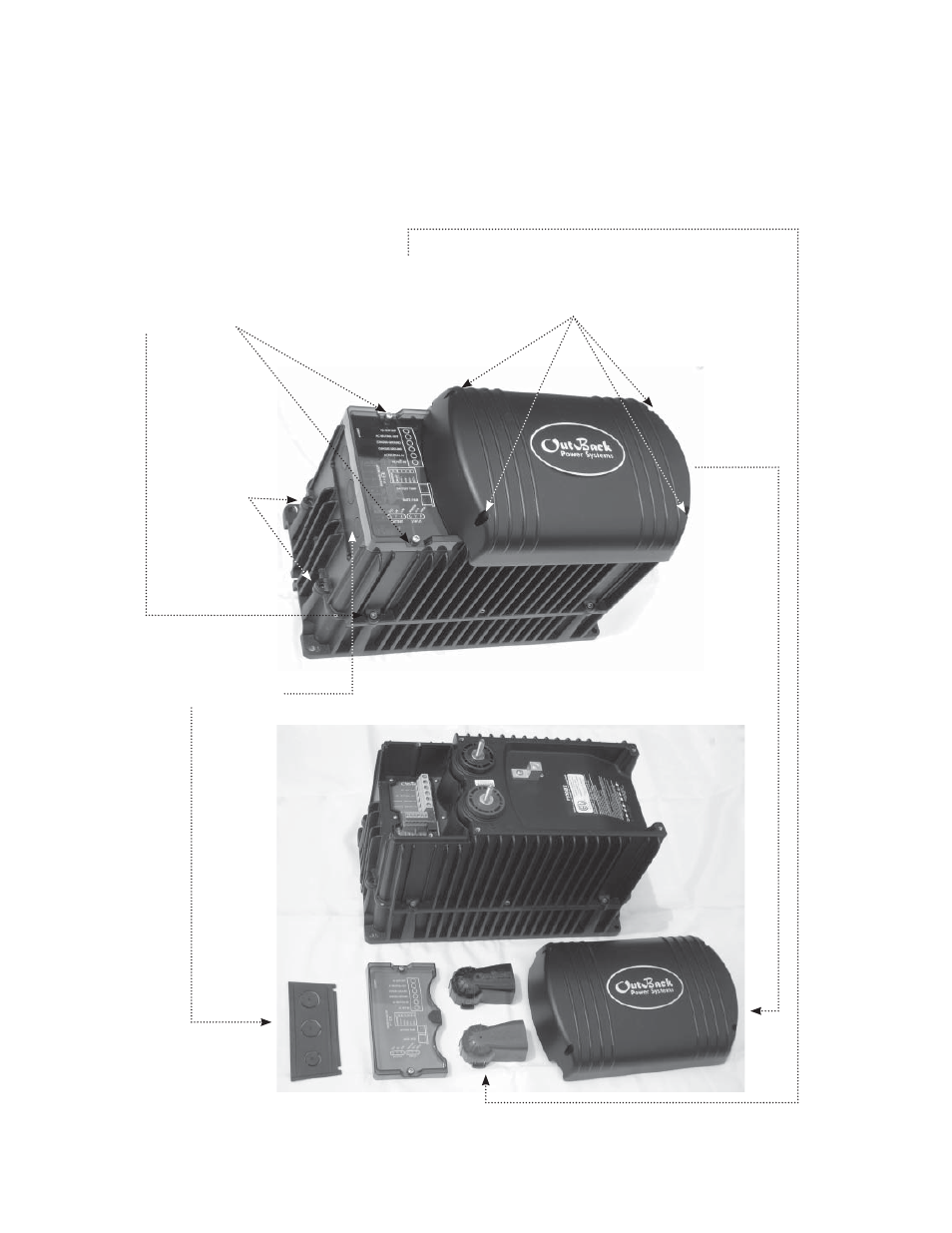

Figure 2:
Removing
the various covers
