Radian Series
2 900-0128-01-00 Rev C

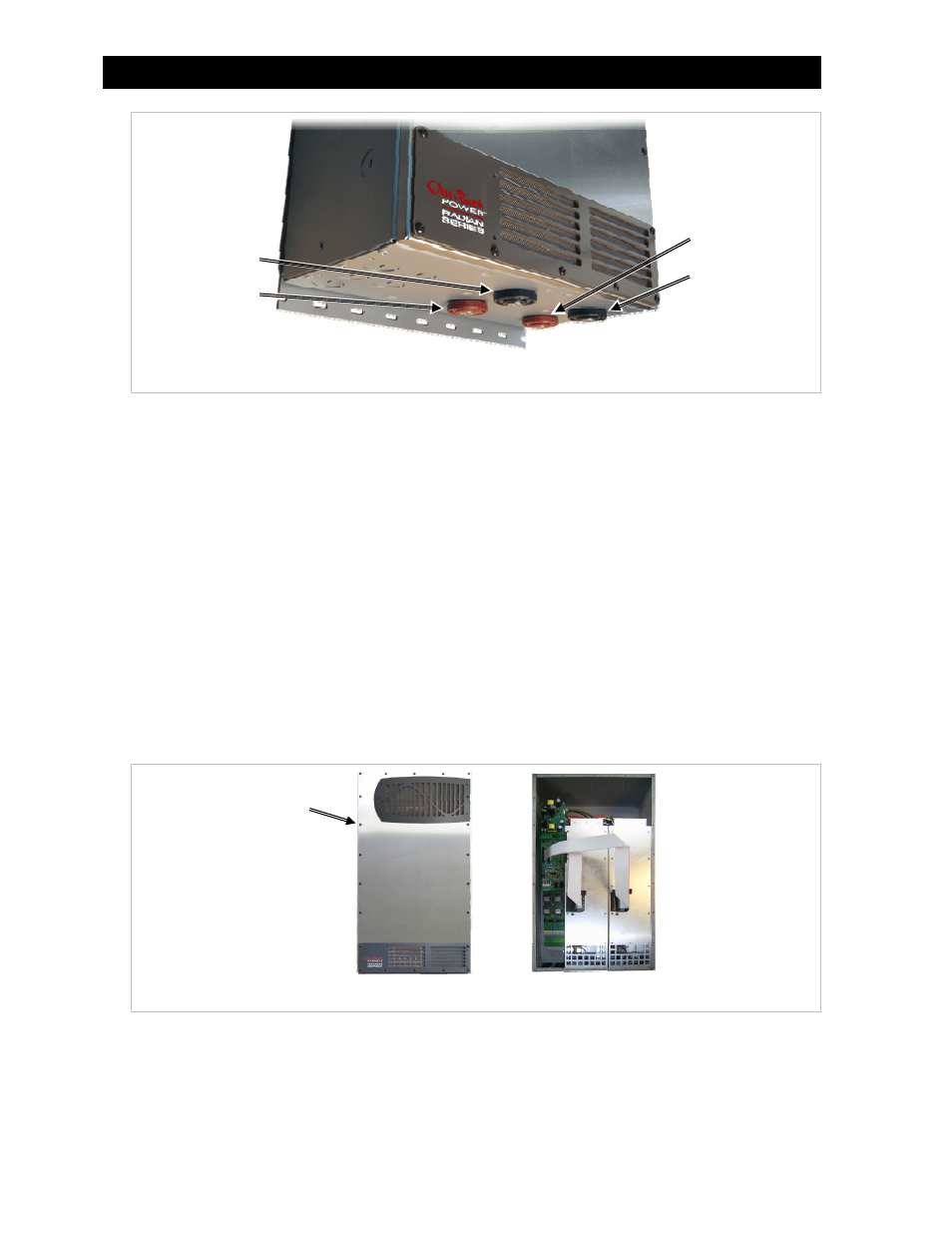

Figure 1 DC Terminals
 Verify no AC voltage is present between the following terminals and ground. These connections may be located in
an electrical distribution box near the inverter. Some systems have no “L2” terminals.
~ AC OUT HOT L1 ~ GRID IN HOT L2
~ AC OUT HOT L2 ~ GEN IN HOT L1
~ GRID IN HOT L1 ~ GEN IN HOT L2
Removal of Cover
Tools
 Phillips screwdriver
Procedure
To remove the front cover:
1. Use a Phillips screwdriver to remove the screws that attach the cover to the chassis.
2. Pull cover directly out from the chassis.
3. Set aside the cover and the cover screws.
Figure 2 Radian Inverter With Cover and Without Cover
DC – Terminal
DC + Terminal
DC + Terminal
DC – Terminal
Remove screws (x22)
