GRILLE GUARD
94-01 1500 DODGE RAM
94-02 2500-3500 DODGE RAM
Page 3 of 3 4/16/12 (DP)
Edge cover to
protect bumper

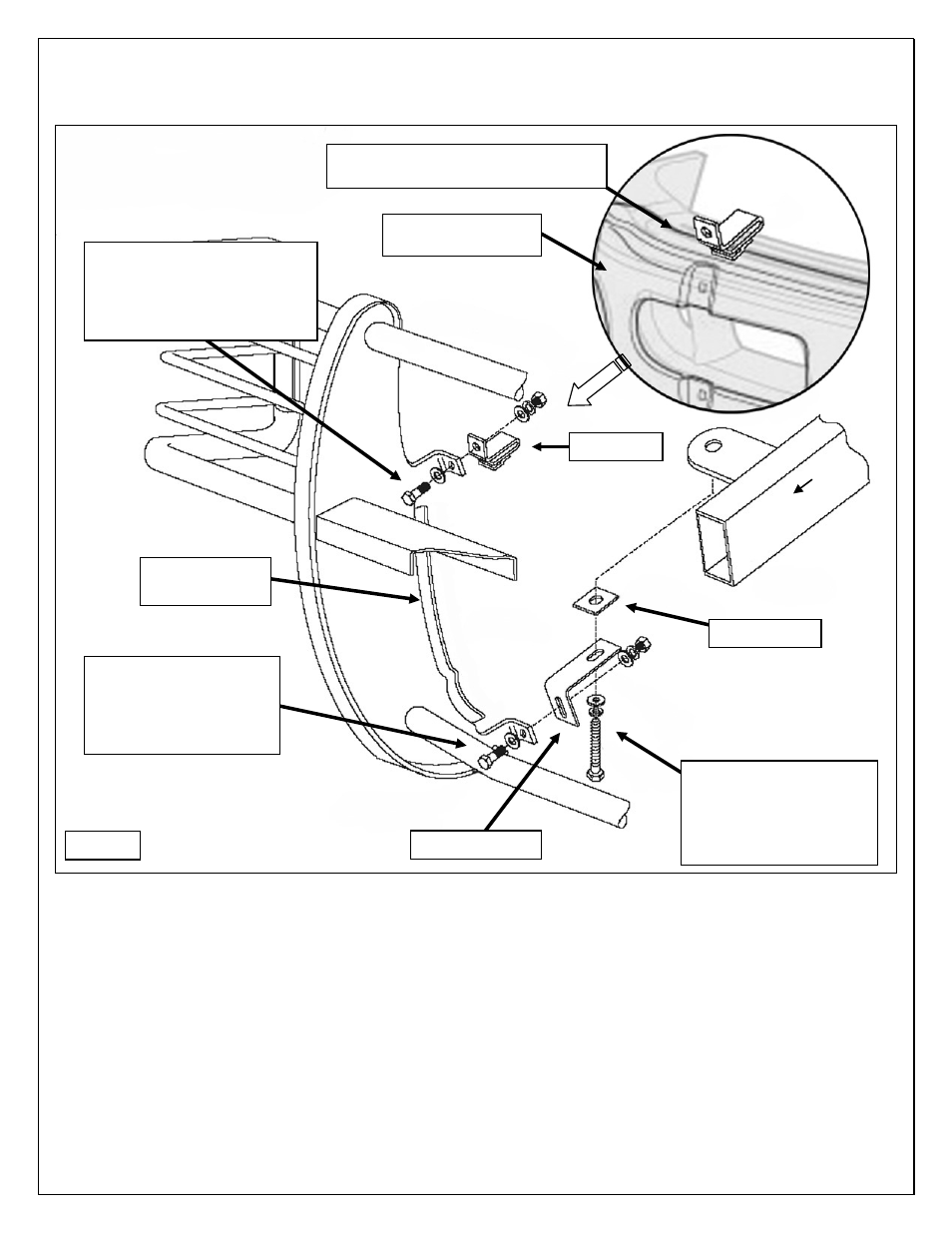

Passenger Side Installation Illustrated
10mm x 40mm Hex Bolt
(2) 10mm x 20mm OD STD
Flat Washers
10mm Lock Washers
10mm Hex Nut
10mm x 30mm Hex Bolt
(2) 10mm x 30mm OD
Large Flat Washers
10mm Lock Washers
10mm Hex Nut
Replace factory body
bolt with:
12mm x 120mm Hex Bolt
12mm Flat Washer
12mm Lock Washer
Spacer Plate
Front
Hook the Top Clamp onto the steel
inner bumper and the plastic cover
Bottom Bracket
Front inner bumper
and plastic cover
Figure 3
Top Clamp
